Electrical Connection
Step 4: Pull cables through pipes after connecting cables to the BMS.
Pull the power cable (red) and heater cable through pipe 1, and pull the power
cable (black), communication cable and grounding cable through pipe 2.
Pipe 1
Pipe 2

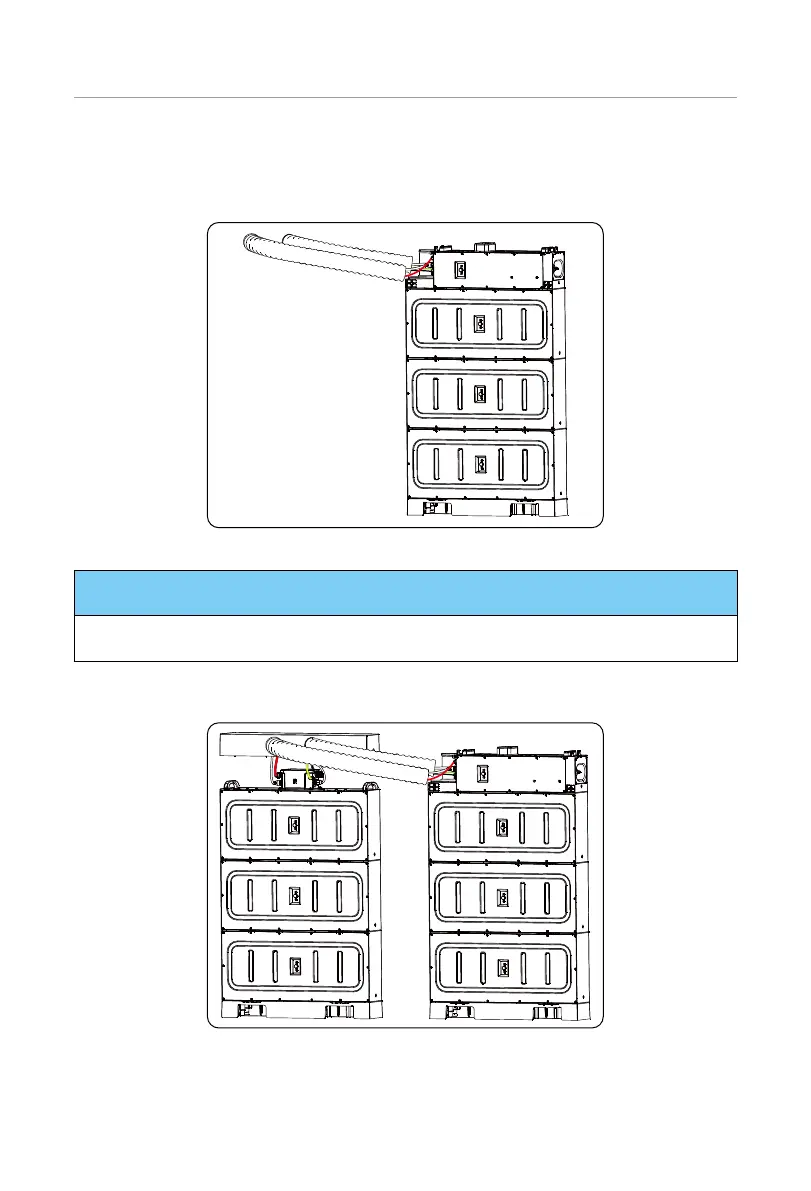

Figure 7-10 Pulling cables
NOTICE!
• A corrugated pipe should be prepared by the users themselves.
Step 5: Insert pipes into the holes on the cover, and then connect the cables to the series
box.
Pipe 1
Pipe 2
Figure 7-11 Inserting pipes into the cover
