Electrical Connection
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
Meter

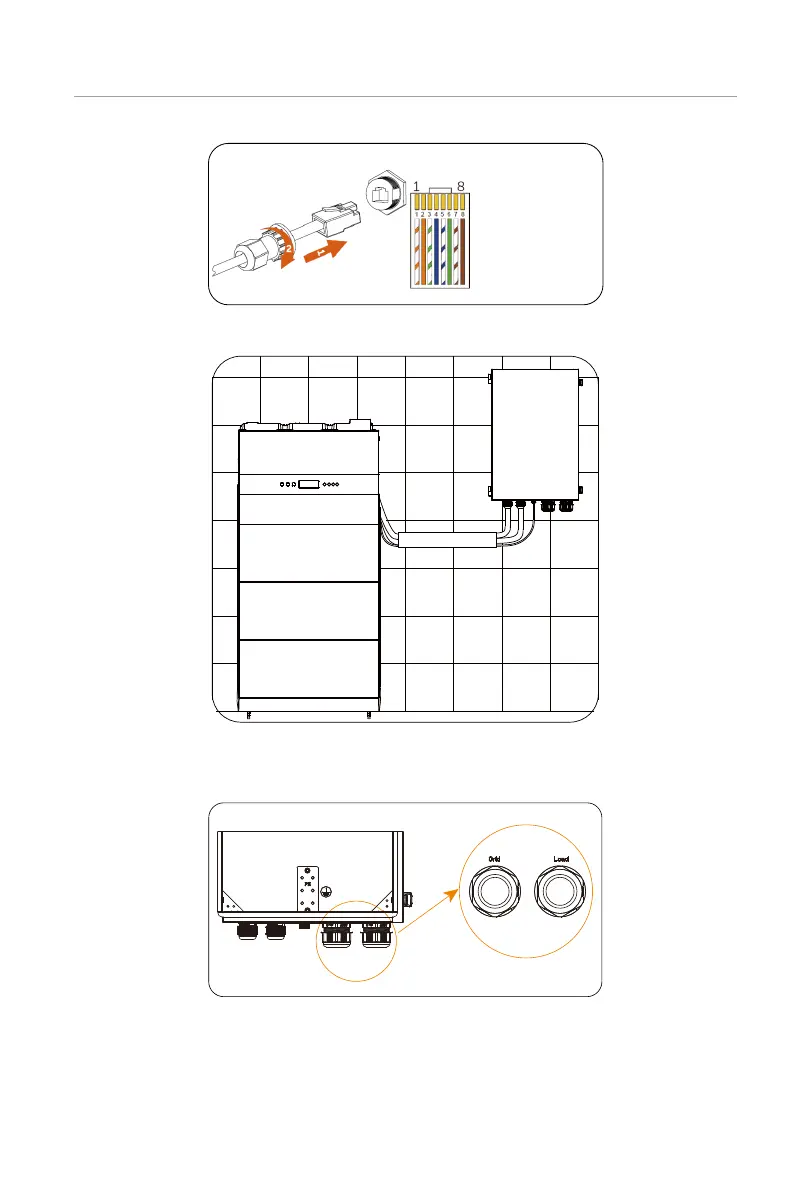

Figure 7-86 Wiring the meter cable
Figure 7-87 Well connected meter cable
Step 12: Confirm the Grid and Load port of the matebox.
Figure 7-88 confirming the Gird and Load port
Step 13: Prepare a five-core cable (Grid cable) and a four-core cable (Load cable), Strip
200 mm outer insulation of the two cables with a wire cutter.
