Mechanical Installation
M5*14
2.2-2.5 N·m
Tapping screw
8-10 N·m

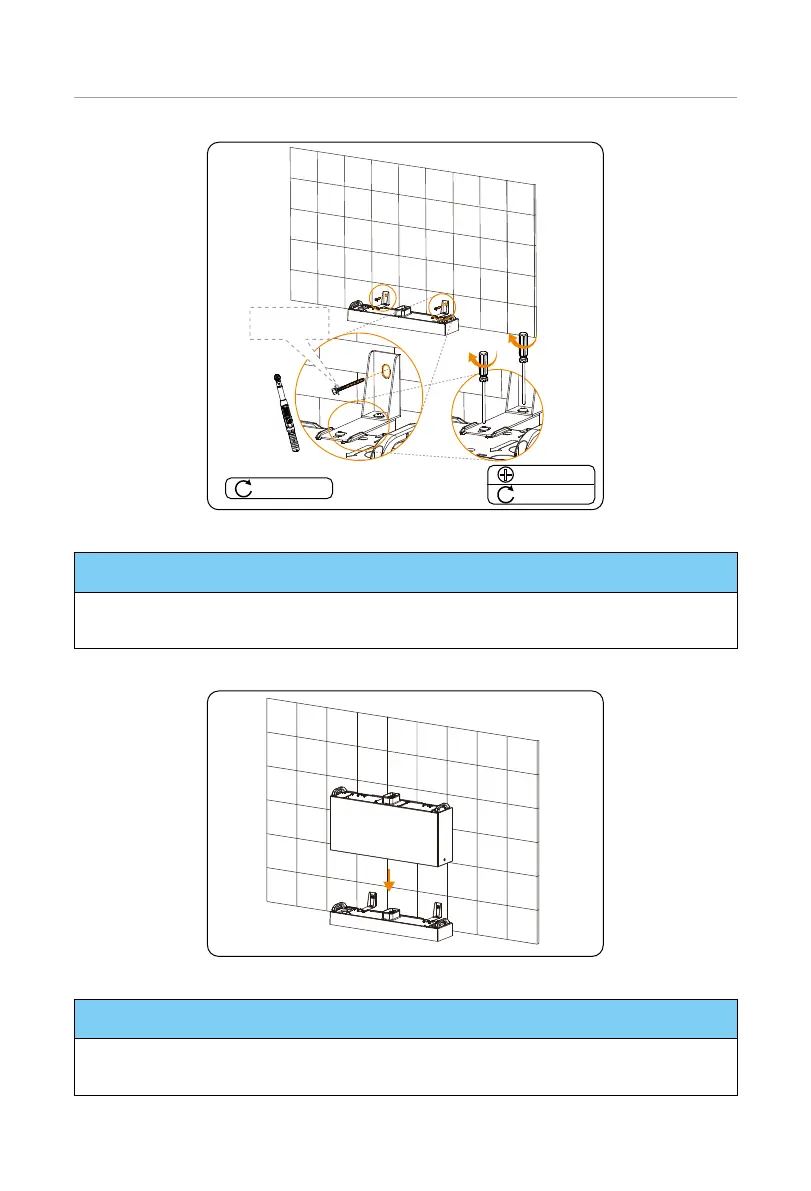

Figure 6-11 Securing the assembled bracket
NOTICE!
• If the base is shifted before securing assembled bracket, move it to its original
location according to the mark previously drawn.
Step 9: Place a battery module on the base.
Figure 6-12 Placing the battery module
NOTICE!
• At least two persons are required to move the battery module.
• Please ensure that the side with "R" shall be against the wall.
