Sony CCD-TR317 - Rgb Driver, Tg; Printed Wiring Board

CCD-TR317/TR517/TRV17/TRV37/TRV47/
TRV57/TRV57P/TRV67/TRV87/TRV87P
4-83 4-84
RGB DRIVER, TG
VF-141

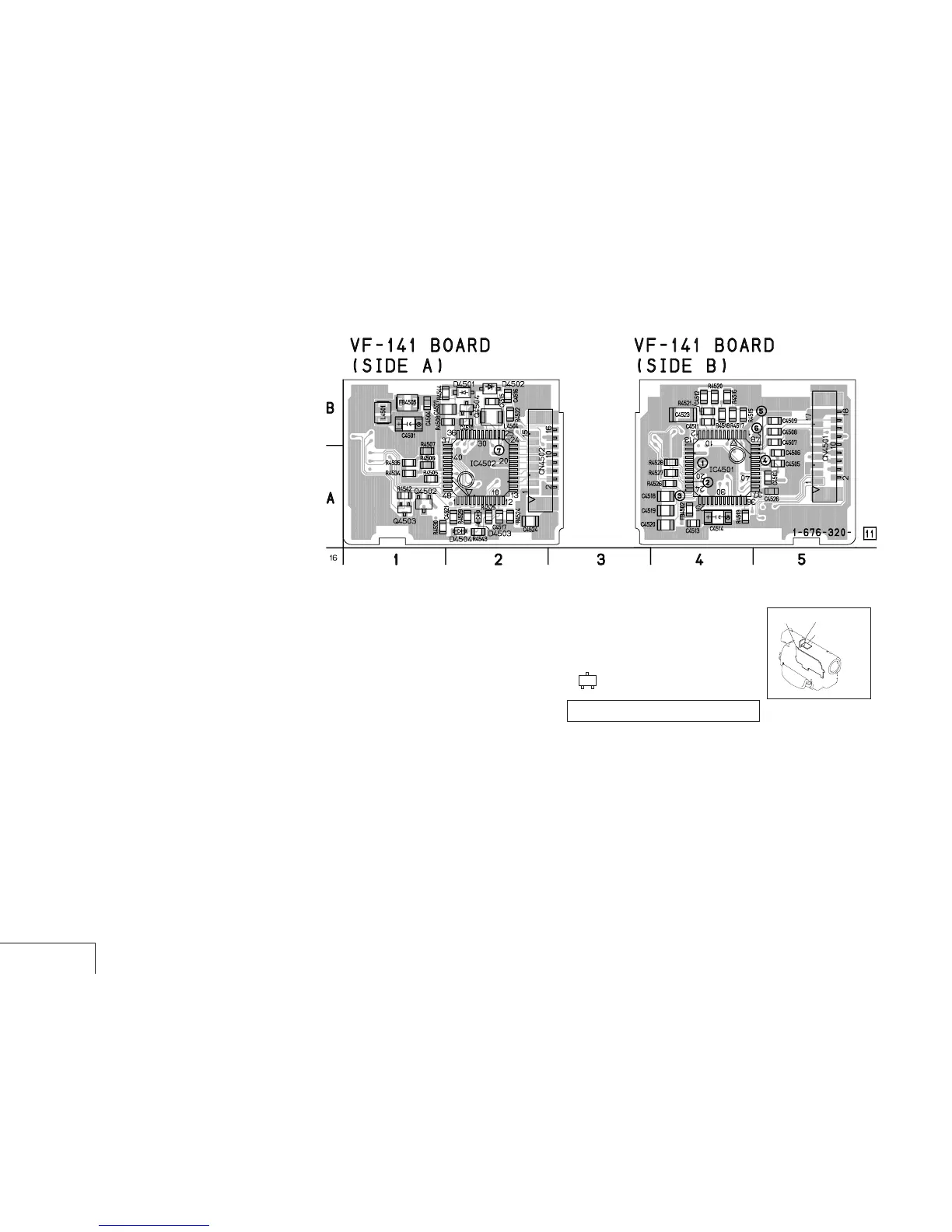

VF-141 (RGB DRIVER, TG) PRINTED WIRING BOARD
— Ref. No. VF-141 Board; 10,000 Series —
For printed wiring board
• Refer to page 4-102 for location.
• This board is four-layer print board. However, the patterns of
layers two and three have not been included in the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this diagram
isn’t mounted in this model.
C
BE
VF-141 (Color EVF model
)
(RGB DRIVER, TG)
LB-62 (Color EVF model)
(BACK LIGHT)
CF-66 (TR model)
(USER CONTROL)
