Sony CCD-TR317 - Flexible Boards Location

2-15E

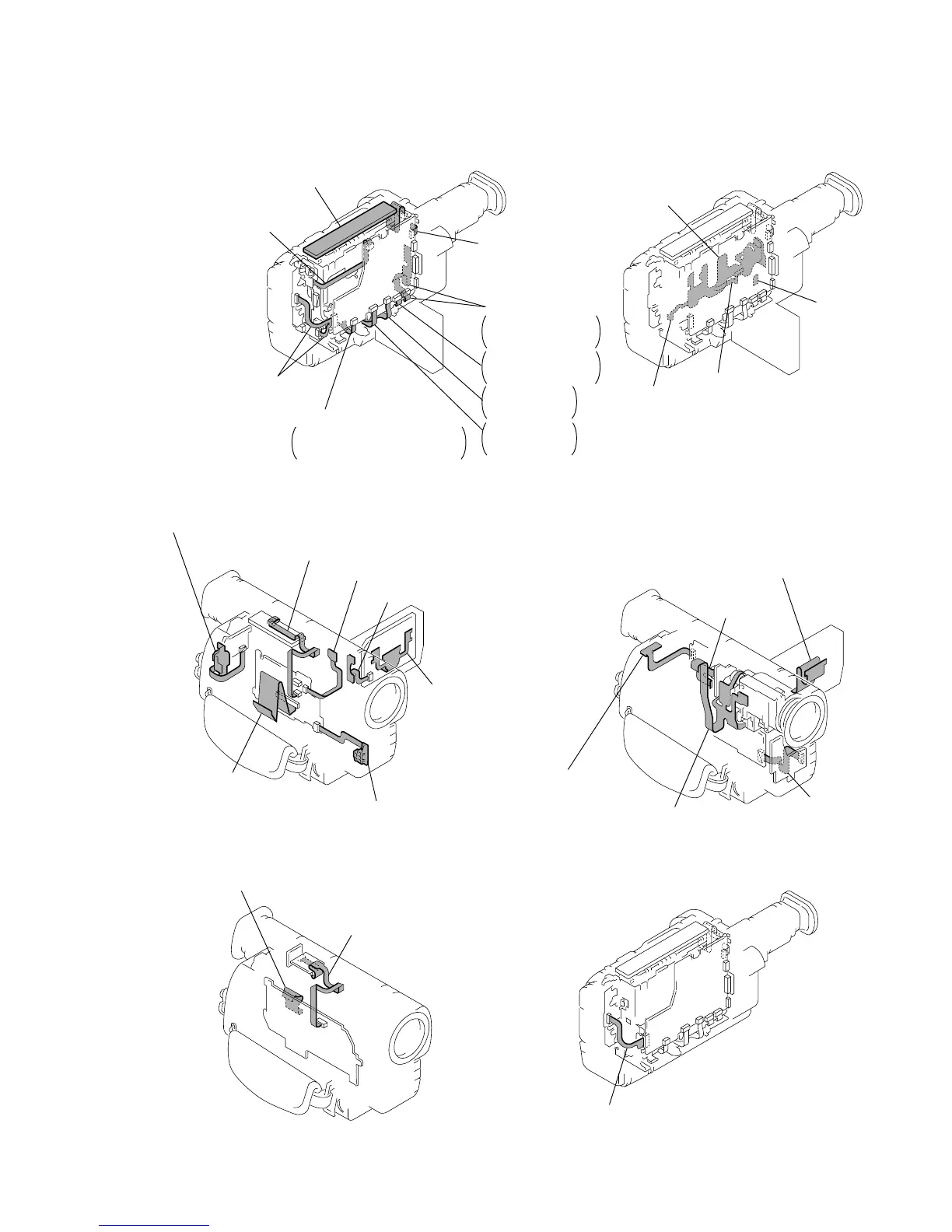

2-16.FLEXIBLE BOARDS LOCATION
FP-49
(Super night shot model)
FP-147
FP-43
FP-62 (Super night shot model)
FP-152 (TRV model)
FP-52
(Super night shot model)
FP-44
(TRV night shot model)
FP-149
FP-46
FP-221
FP-220
FP-150
CONTROL SWITCH BLOCK
(FK-8500)
(Video light model)
(TRV model)
(TR model)
CONTROL SWITCH BLOCK
(MR-8500)
CONTROL SWITCH BLOCK
(SS-9700)
From S/T REEL
SENSOR
(From LENS BLOCK)
From CAPSTAN
MOTOR
From DRUM
MOTOR
From VIDEO
HEAD
From LOADING MOTOR,
MODE SWITCH
FP-356
FP-355
FP-249
FP-248
FP-151 (Color EVF model)
(USED COLOR EVF)
FP-155 (TR model)
FP-155
FFC-289 (B/W EVF model)
(USED B/W EVF)
FFC-001
