Sony CCD-TR317 - SECTION 6. REPAIR PARTS LIST; 6-1. EXPLODED VIEWS

6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND: Canadian model
KR: Korea model
HK: Hong Kong model
JE: Tourist model
BR: Brazilian model
AR: Argentina model
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
CCD-TR317/TR517/TRV17/TRV37/TRV47/
TRV57/TRV57P/TRV67/TRV87/TRV87P
S
O
N
Y
S
O
N
Y
S
O
N
Y
A
A
not
supplied
not
supplied
MIC901
MIC902
not supplied
not supplied
not supplied
TR317/TR517/
TRV47
not
supplied
LAMP, HALOGEN
XB-3D (HL6V/3W)
not
supplied
TR317/TR517/
TRV47
(TRV87/TRV87P)
TRV17/TRV37/
TRV57/TRV57P/
TRV67
TRV17/TRV37/TRV57/
TRV57P/TRV67/
TRV87/TRV87P
Note
Cabinet (L)
block assembly
(See page 6-5)
Cabinet (R)
block assembl
y
(See page
6-2 or 6-3)
Note: the TR models do not have
the harness (DP-78)
shown by Note.
1
2
3
4
5
6
7
8
9
10
10
10
20
11
10
10
10
10
10
10
11
12
13
14
15
16
17
18
11
19
21
22
23
24
24

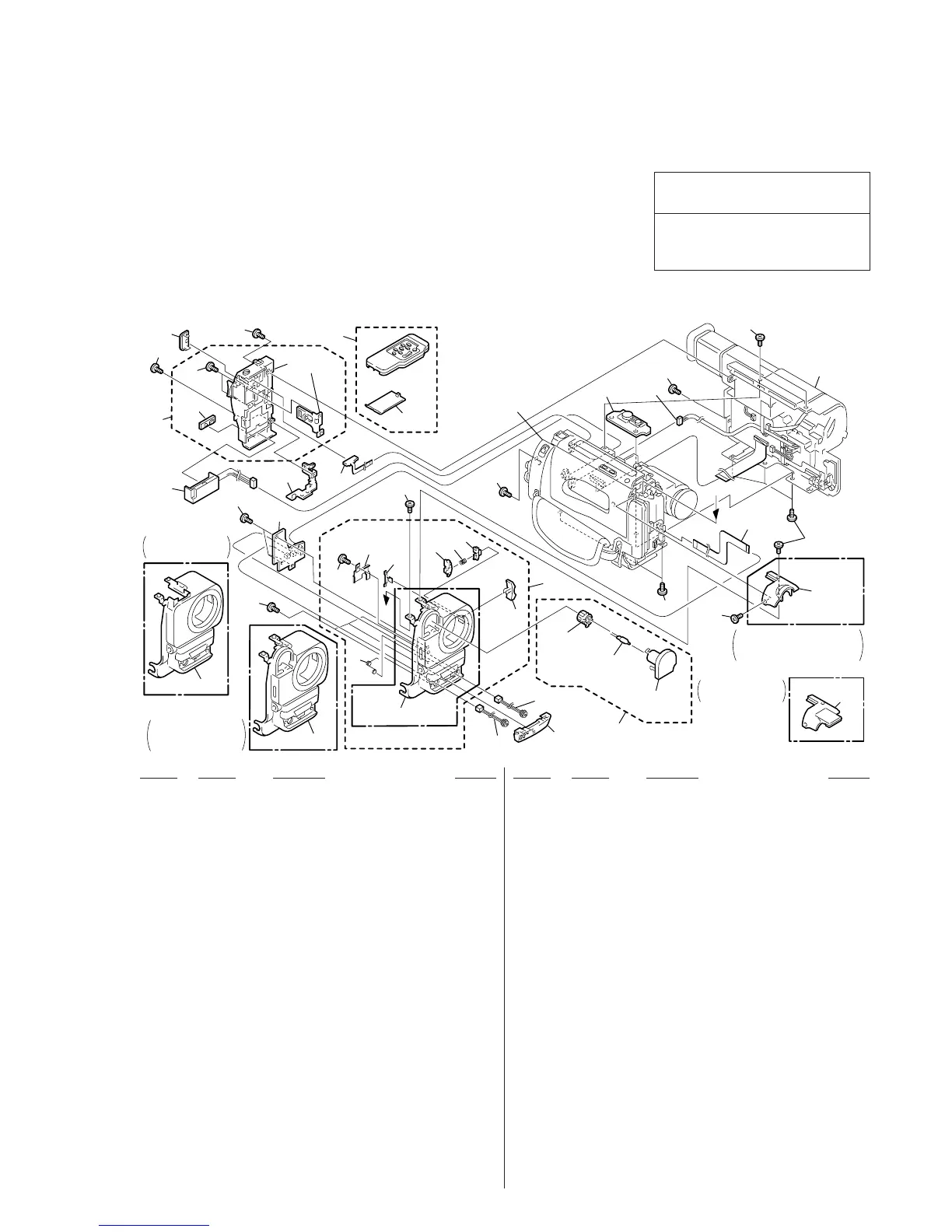

6-1-1. FRONT PANEL BLOCK ASSEMBLY AND BATTERY PANEL BLOCK ASSEMBLY
1 1-517-857-11 LIGHT, VIDEO
(TRV17/TRV37/TRV57/TRV57P/TRV67/TRV87/TRV87P)
2 X-3949-326-1 GRILLE (D) ASSY, MICROPHONE
3 X-3950-120-1 PANEL(97) ASSY, FRONT (TRV87/TRV87P)
3 X-3950-121-1 PANEL(97) ASSY, FRONT
(TRV57/TRV57P/TRV67)
3 X-3950-122-1 PANEL(97) ASSY, FRONT (TR317/TR517)
3 X-3950-123-1 PANEL(97) ASSY, FRONT (TRV47)
3 X-3950-337-1 PANEL(97) ASSY, FRONT (TRV17/TRV37)
4 3-987-631-01 KNOB,P
5 3-053-597-01 BUTTON (D), LOCK
6 3-973-619-01 SPRING, COMPRESSION
7 3-053-596-01 HOLDER (D), P KNOB
8 3-987-642-01 SPRING, CLICK
9 3-987-882-01 SPRING, TORSION
10 3-968-729-91 SCREW (M2), LOCK ACE, P2
11 3-948-339-61 TAPPING
12 A-7074-121-A MA-375 (N-VHMMBO) BOARD,COMPLETE
(TRV57/TRV57P/TRV67)
12 A-7074-127-A MA-375 (N-VHXRIBO) BOARD,COMPLETE
(TRV87/TRV87P)
12 A-7074-153-A MA-374 (LO) BOARD,COMPLETE
(TR317/TR517)
12 A-7074-191-A MA-375 (VO) BOARD,COMPLETE (TRV47)
12 A-7074-228-A MA-375 (N-VBL0) BOARD,COMPLETE
(TRV17/TRV37)
13 1-694-384-11 TERMINAL BOARD, BATTERY
14 3-053-723-01 SHEET METAL (LOWER), STRAP
15 1-672-663-21 FP-49 FLEXIBLE BOARD(TRV87/TRV87P)
16 3-987-656-01 LID,JACK
17 3-968-729-61 SCREW (M2X3), LOCK ACE, P2
18 X-3950-109-1 PANEL (97) ASSY, BATTERY (TRV87/TRV87P)
18 X-3950-110-1 PANEL (97) ASSY, BATTERY
(TR317:E,HK,KR/TR517:US,CND,E,AR/TRV17/TRV37:US,CND,E,AR/
TRV47/TRV57/TRV57P/TRV67:US,E,HK,KR,AR,JE)
18 X-3950-493-1 PANEL (97) ASSY, BATTERY
(TR317:BR/TR517:BR/TRV37:BR/TRV67:BR)
19 3-975-752-01 LID(BT), CPC
20 3-958-131-01 LID,BATTERY CASE (for RMT-708)
(TRV47/TRV57/TRV57P/TRV67/TRV87/TRV87P)
21 1-467-574-21 REMOTE COMMANDER (RMT-708)
(TRV47/TRV57/TRV57P/TRV67/TRV87/TRV87P)
22 3-987-717-01 SCREW
23 1-672-670-11 FP-43 FLEXIBLE BOARD
24 3-053-603-01 CABINET (L), SHOE
(TRV17/TRV37/TRV57/TRV57P/TRV67/TRV87/TRV87P)
24 3-058-251-01 CABINET (N) (97), SHOE
(TR317/TR517/TRV47)
MIC901 1-542-312-11 MICROPHONE (R)
MIC902 1-542-312-11 MICROPHONE (L) (TRV87/TRV87P)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
