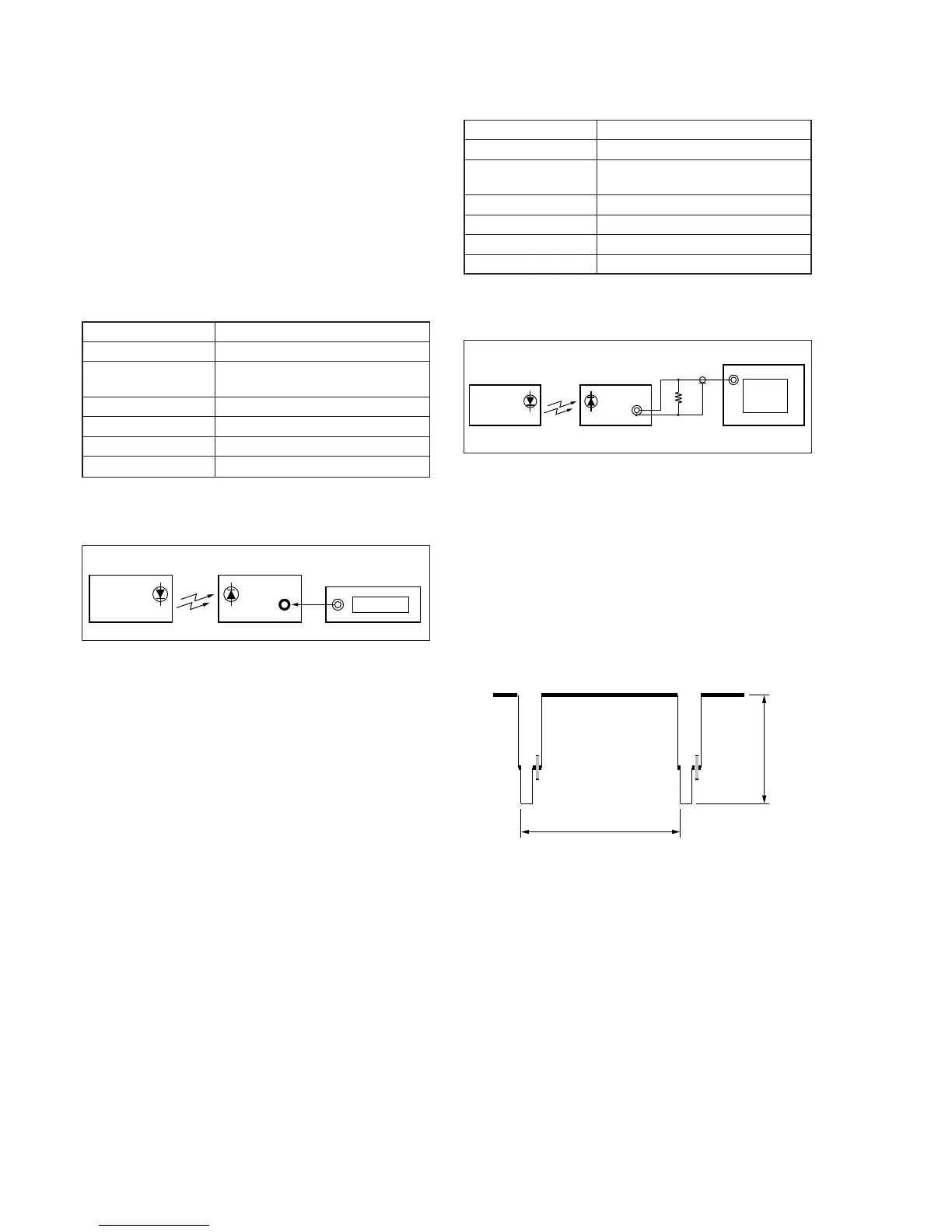

3-5. IR TRANSMITTER ADJUSTMENTS
(CCD-TRV87/TRV87P)
Adjust using a IR receiver jig (J-6082-383-A).
Note : If the distance between the IR receiver jig and the camcorder is
below 1m, cover the LASER LINK emitter with a ND filter. (For
example, when the distance is 30cm to 50cm, cover the LASER
LINK emitter with a ND filter 1.0.)
Switch setting:
LASER LINK ........................................ ON (Red LED is lit)
1. IR Video Carrier Frequency Adjustment
(VC-234 board)
Mode Camera standby
Subject Arbitrary
Measurement Point Pin 5 of CN003 of IR receiver jig (RF)
(Or Pin qh of IC751 of VC-234 board)
Measuring Instrument Frequency counter
Adjustment Page F
Adjustment Address 80
Specified Value f = 11.85 ± 0.05 MHz
Connection of Equipment
Connect the measuring device as shown in the following figure,
and adjust.
Fig. 5-3-14.
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 2, address: 01, set data: 37, and press the PAUSE
button of the adjustment remote commander.
3) Select page: F, address: 80, change the data, and set the video
carrier frequency (f) to the specified value.
4) Press the PAUSE button of the adjustment remote commander.
5) Select page: 2, address: 01, set data: 00, and press the PAUSE
button of the adjustment remote commander.
6) Select page: 0, address: 01, and set data: 00.
2. IR Video Deviation Adjustment (VC-234 board)
Mode Camera standby
Subject Arbitrary
Measurement Point VIDEO OUT terminal of IR receiver jig
(Terminated at 75Ω)
Measuring Instrument Oscilloscope
Adjustment Page F
Adjustment Address 7E
Specified Value A = 0.87 ± 0.04 V
Connection of Equipment
Connect the measuring device as shown in the following figure,
and adjust.
Fig. 5-3-15.
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 2, address: 01, set data: 39, and press the PAUSE
button of the adjustment remote commander.
3) Select page: F, address: 7E, and change the data, set the video
signal amplitude (A) to the specified value.
4) Press the PAUSE button of the adjustment remote commander.
5) Select page: 2, address: 01, set data: 00, and press the PAUSE
button of the adjustment remote commander.
6) Select page: 0, address: 01, and set data: 00.
Main unit
IR receiver jig
Pin
5 of
CN003
Frequency counte
r
Main unit
IR receiver jig
VIDEO
OUT
75
Ω
75 Ω (1-247-804-11)
Oscilloscope
A
H
Fig. 5-3-16.
