Sony CCD-TR317 - Color Evf Block Assembly (Tr517)

6-7
TO CF BOARD
not
supplied
not
supplied
not supplied
LCD902
301
302
303
304
305
306
307
308
309
310
311
312
313
314
317
315
309
309
302
316

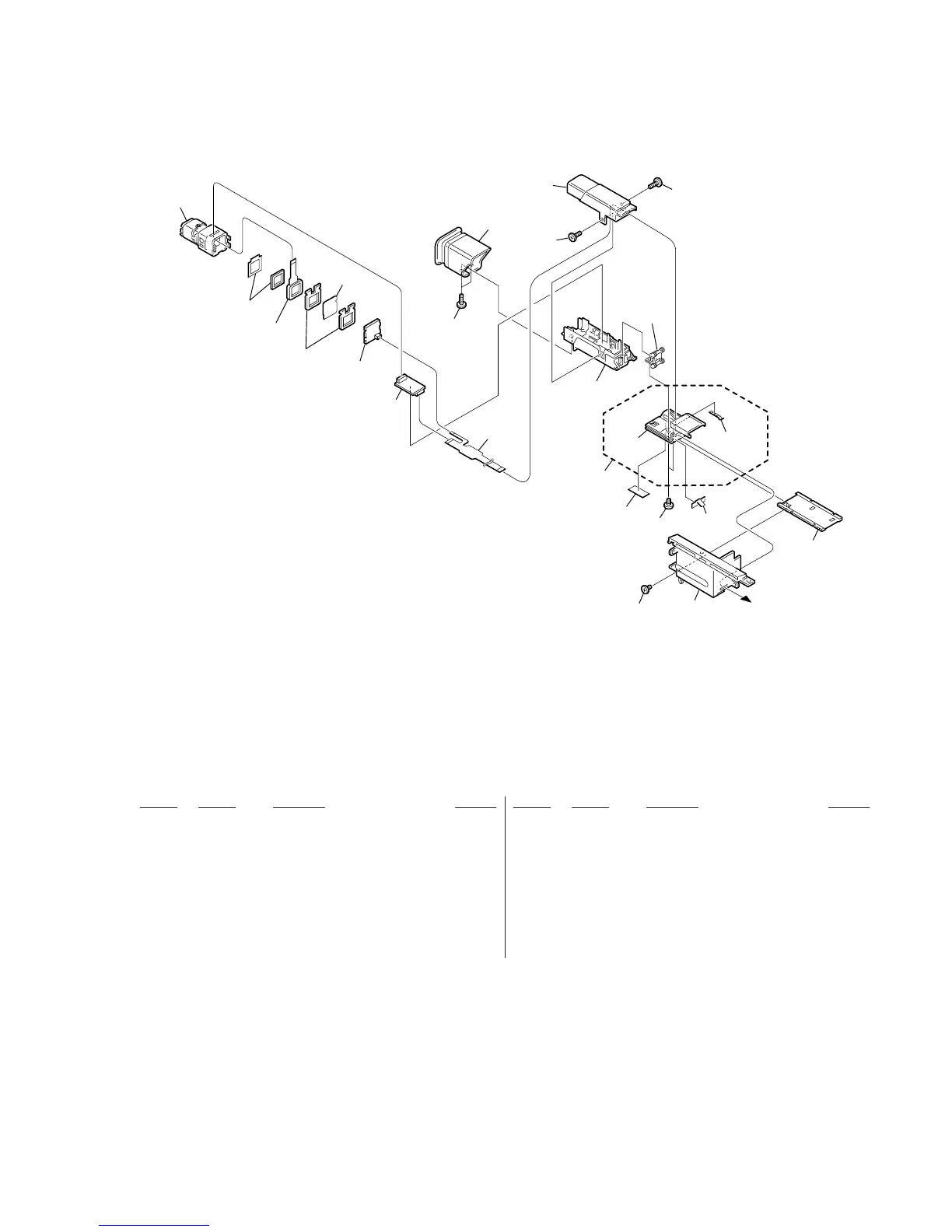

6-1-7. COLOR EVF BLOCK ASSEMBLY (TR517)
301 3-058-249-01 BASE (C) (97), VF
302 3-968-729-81 SCREW (M2), LOCK ACE, P2
303 3-058-231-01 BASE (C) (97), SLIDE FIXED
304 3-054-141-01 RETAINER, HARNESS
305 X-3950-103-1 BASE (C) (97) ASSY, SLIDE
306 3-058-228-01 BASE (C) (97), SLIDE
307 X-3949-331-1 ARM (C) ASSY, CRANK
308 X-3950-102-1 CABINET (LOWER) (C) (97) ASSY, EVF
309 3-948-339-81 TAPPING
310 3-053-671-01 CABINET (UPPER) (C) (92), EVF
311 X-3950-100-1 CABINET (REAR) (C) (97) ASSY, EVF
312 1-676-299-11 FP-151 FLEXIBLE BOARD
313 A-7074-193-A VF-141 BOARD,COMPLETE
314 A-7074-192-A LB-62 BOARD,COMPLETE
315 X-3950-101-1 LENS (C) (97) ASSY, VF
* 316 3-058-899-01 SHEET (97), ELECTROSTATIC
317 3-058-233-01 ILLUMINATOR (97), BL
LCD902 8-753-026-74 LCX0032-AK-J
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
