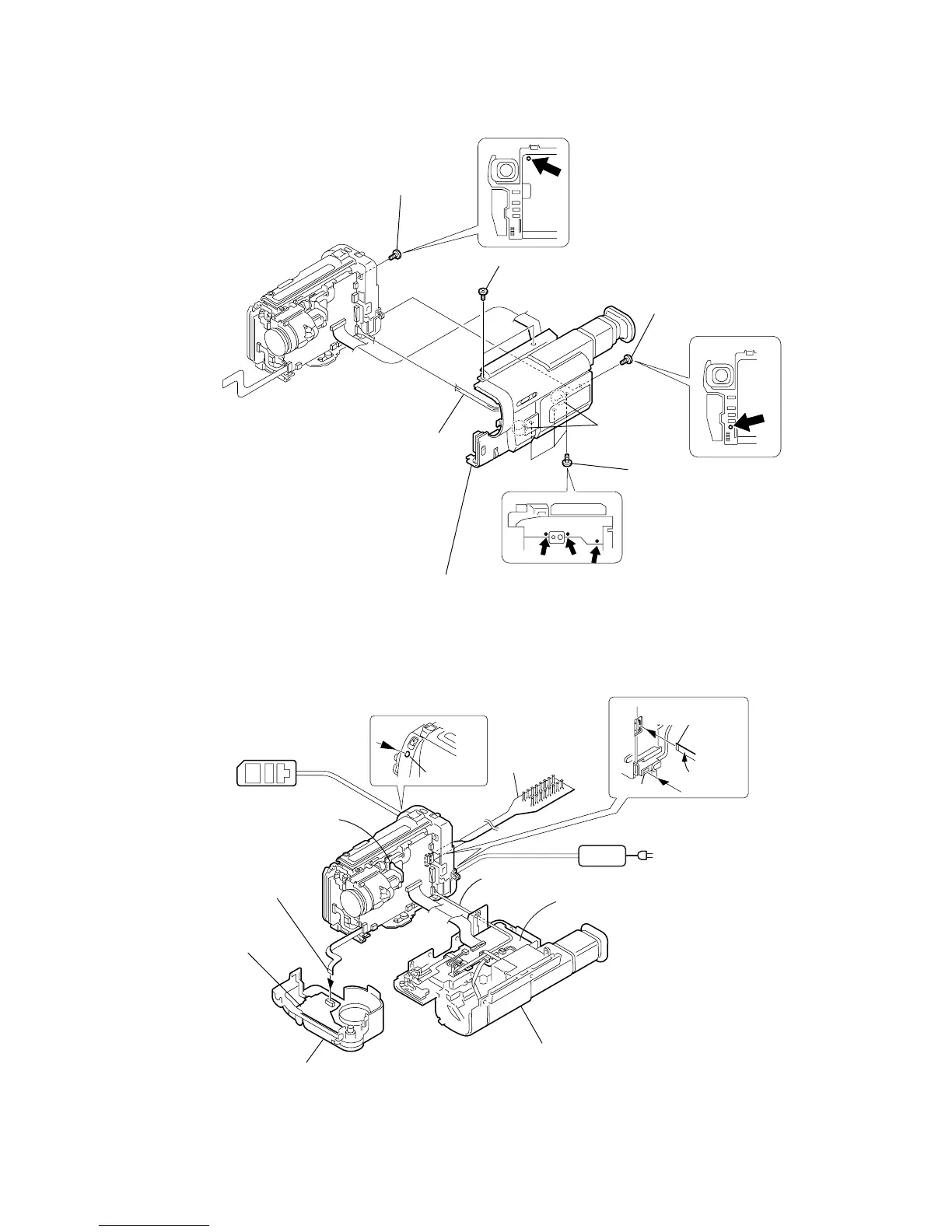

2-3. CABINET (R) BLOCK ASSEMBLY
MA-
Board
CF-
Board
AC POWER
ADAPTOR
AC IN
VC-234
Board
4 Screw
(M2 × 4),
lock ace, p2
3 Screw (M2 × 4),
lock ace, p2
1 Two screws (M2 × 4),
lock ace, p2
6 Cabinet (R) block assembly
Cabinet (R) block assembly
2 Three screws
(M2 × 4),
lock ace, p2
5 Two claws
VC-234
Board
DP-78 harness
(TRV model)
DP-78 harness
(TRV model)
LANC jack
CPC-7 jig
(J-6082-382-A)
CF-66 board (TR model)
CF-67 board (TRV model)
DC IN
CPC-7 jig
Contacting
surface
Front panel block assembly
MA-374 board (TR model)
MA-375 board (TRV model)
CD-239 board (TR model)
CD-240 board (TRV model)
[MA-374/375, CF-66/67, CD-239/240 BOARDS SERVICE POSITION]
FP-43 flexible board
(20P)
Adjustment remote
commander (RM-95)
