Sony CCD-TR317 - User Control; Printed Wiring Board

CCD-TR317/TR517/TRV17/TRV37/TRV47/
TRV57/TRV57P/TRV67/TRV87/TRV87P
4-39 4-40
USER CONTROL
CF-66

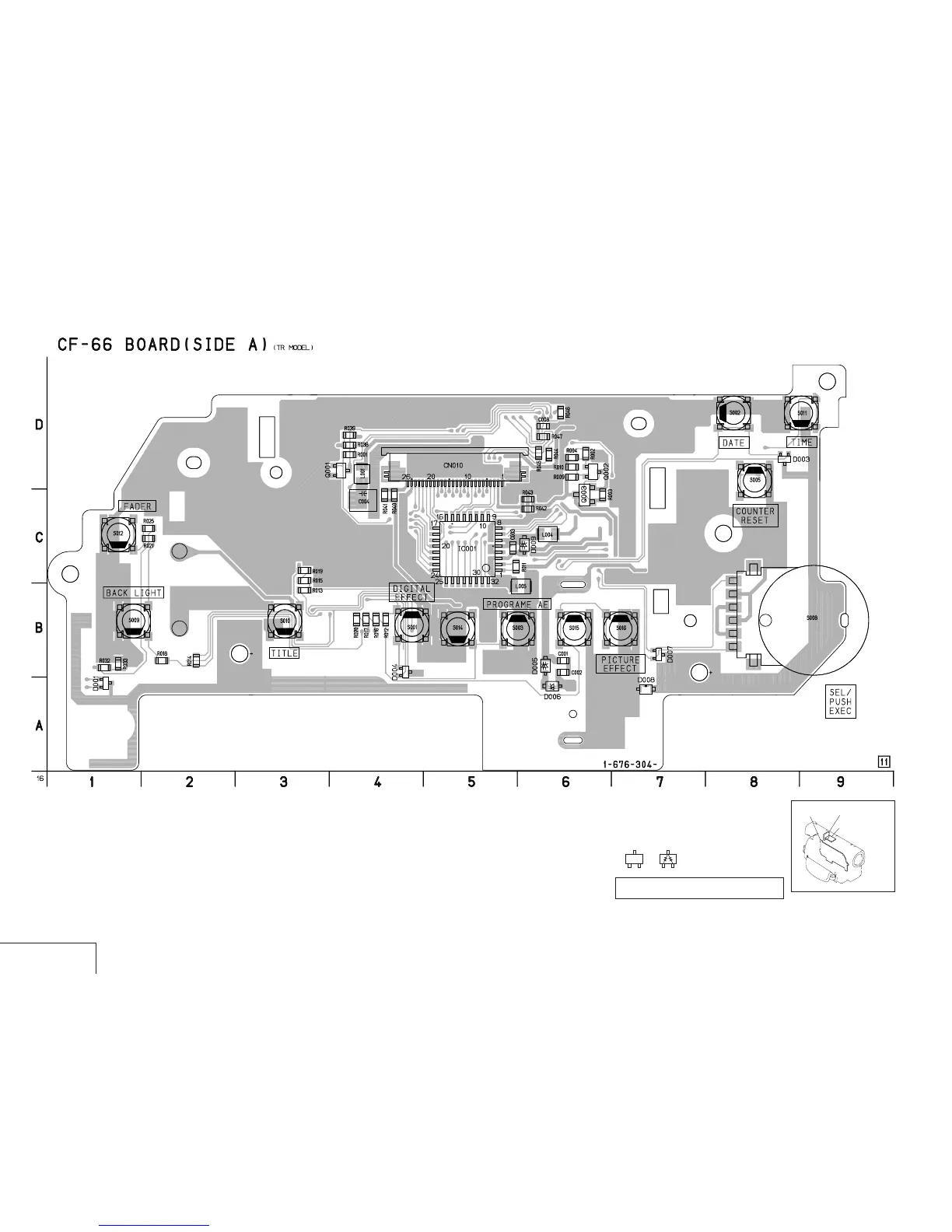

CF-66 (USER CONTROL) PRINTED WIRING BOARD
— Ref. No. CF-66 Board; 1,000 Series —
For printed wiring board
• Refer to page 4-99 for location.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
3
21
VF-141 (Color EVF model
)
(RGB DRIVER, TG)
LB-62 (Color EVF model)
(BACK LIGHT)
CF-66 (TR model)
(USER CONTROL)
