Sony CCD-TR317 - Lens Block Assembly

6-8
IC201
M906
M905
not
supplied
351
352
353
353
354
355
356358
359
360
361
362
363
357
355
352
354

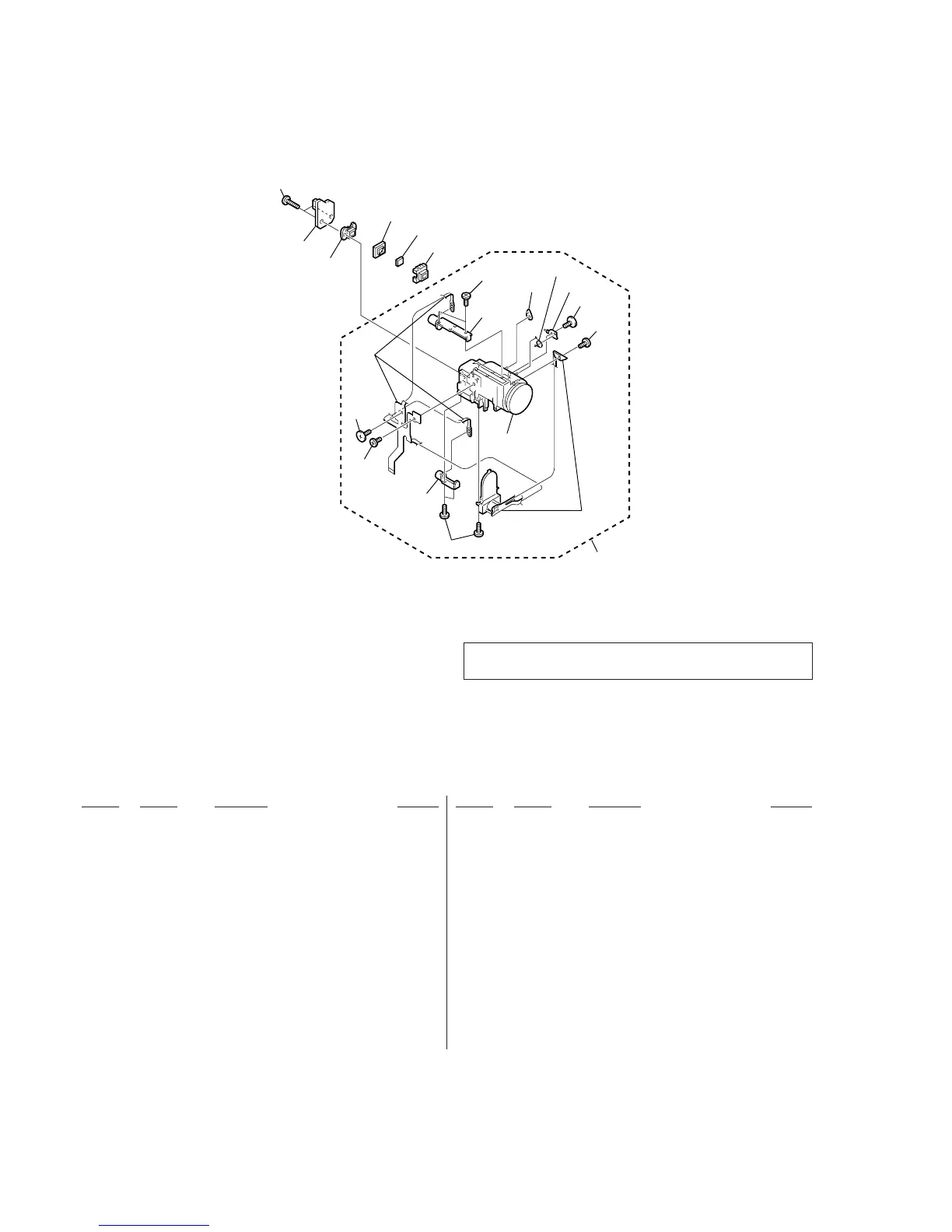

6-1-8. LENS BLOCK ASSEMBLY
351 8-848-729-01 DEVICE, LENS LSV-630A
352 X-3949-355-2 IRIS FLEXIBLE ASSY 630
353 3-713-791-41 SCREW,TAPPING(M1.7X5),P2
354 3-713-791-51 SCREW,TAPPING(M1.7X3.5),P2
355 3-056-022-01 TAPPING(B1.7X3.5),HEAD
356 3-053-827-01 LEVER,IR
357 3-053-800-01 SPRING,RETAIN
358 3-053-799-01 GEA,IR
359 3-978-981-11 ADAPTOR (FK), CCD FITTING
360 1-758-084-21 FILTER BLOCK, OPTICAL
(TR317/TR517/TRV17/TRV37/TRV47/TRV87/TRV87P)
360 1-758-133-21 FILTER BLOCK, OPTICAL
(TRV57/TRV57P/TRV67)
361 3-953-817-01 RUBBER (F), SEAL (TRV57/TRV57P/TRV67)
361 3-968-054-11 RUBBER (FM), SHIELD
(TR317/TR517/TRV17/TRV37/TRV47/TRV87/TRV87P)
362 A-7074-148-A CD-240 (VHXRIBO) BOARD,COMPLETE
(TRV17/TRV37/TRV47/TRV57/TRV57P/
TRV67/TRV87/TRV87P)
362 A-7074-161-A CD-239 (CO) BOARD,COMPLETE
(TR317/TR517)
363 3-318-203-11 SCREW (B1.7X6), TAPPING
IC201 A-7031-040-A CCD BLOCK ASSY
(TR317/TR517/TRV17/TRV37/TRV47)
IC201 A-7031-052-A CCD BLOCK ASSY (TRV87/TRV87P)
IC201 A-7031-055-A CCD BLOCK ASSY (TRV57/TRV57P/TRV67)
M905 1-763-262-11 MOTOR, STEPPING F630
M906 1-763-046-21 MOTOR, STEPPING Z600
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Be sure to read “Precautions upon replacing CCD imager”
on page 4-8 when changing the CCD imager.
Ver 1.3 2001. 09
