Sony CCD-TR317 - Cabinet (L) Block Assembly; Trv67;Trv87;Trv87 P

6-5
VC-234
Board
D
D
-134
A
F
F
H
H
A
B
C
D
E
J
J
J
B
G
C
D
E
I
I
G
not
supplied
not
supplied
Mechanism deck
(See page 6-9 to 6-11)
Note3
Note4
Note1
Note2
TRV17/TRV37/
TRV57/TRV57P/
TRV67/TRV87/TRV87P
Note1:
Note2:
TR317/TR517/TRV47
TRV17/TRV37/
TRV47/TRV57/TRV57P/
TRV67/TRV87/TRV87P
Note3:
Note4:
TR317/TR517
Lens block
assembly
(See page 6-8)
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
216
217
218
219
220
221
222
203
203
203
216
223
224
225
226
227
228
229
230
231
232
233
234
235
216
216
216
216
216
216
216

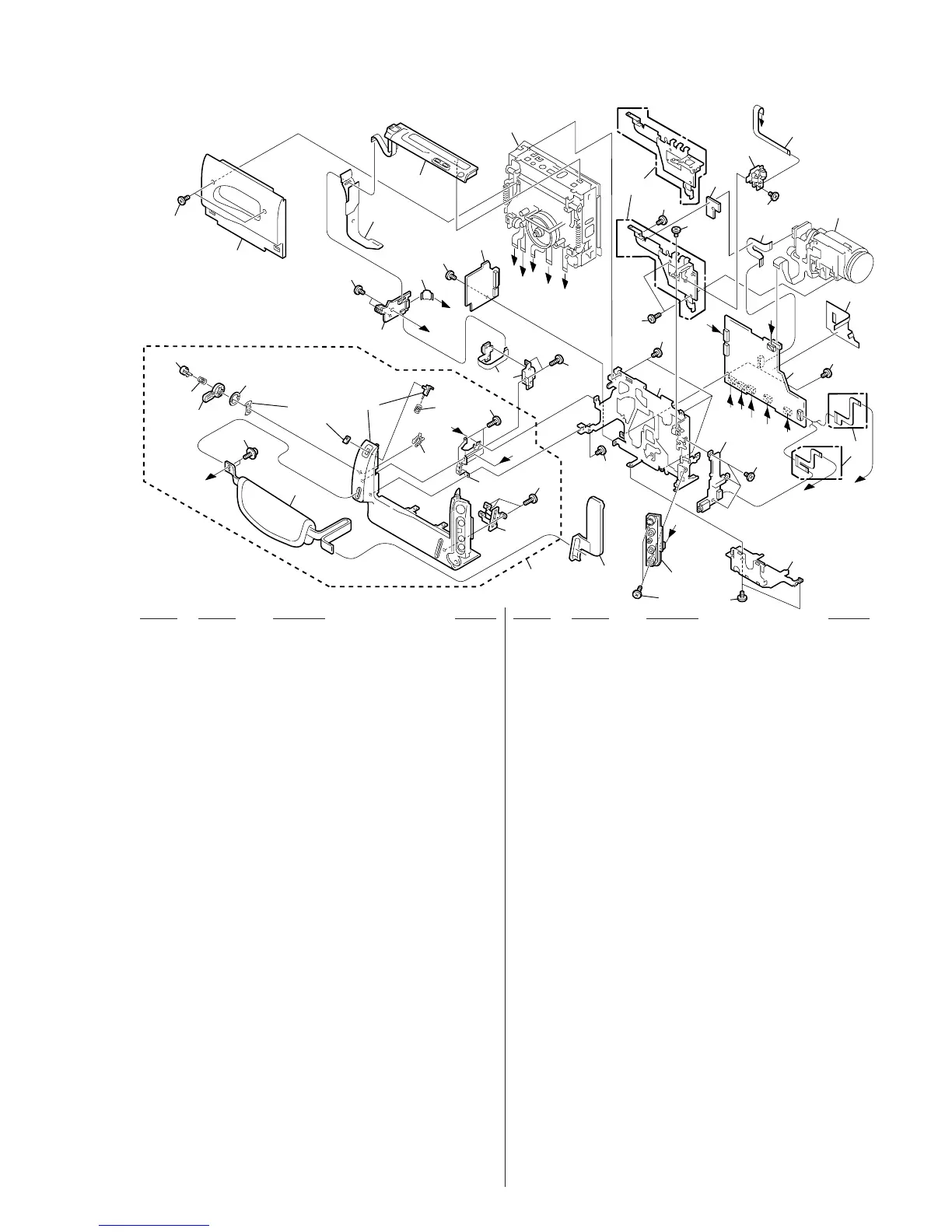

6-1-5. CABINET (L) BLOCK ASSEMBLY
* 201 3-975-522-11 COVER, JACK
202 X-3950-112-1 CABINET (L) ASSY (TRV87/TRV87P)
202 X-3950-113-1 CABINET (L) ASSY (TRV67)
202 X-3950-114-1 CABINET (L) ASSY
(TRV17/TRV37/TRV47/TRV57/TRV57P)
202 X-3950-115-1 CABINET (L) ASSY (TR317/TR517)
203 3-948-339-61 TAPPING
204 3-975-966-01 SHEET METAL (2), SS
* 205 3-058-248-01 HOLDER (97), EL
206 3-949-192-01 HOLDER, STAND-BY KNOB
207 3-979-642-01 SPRING, COMPRESSION
208 3-052-815-01 BELT (ES), GRIP
209 3-679-362-11 SCREW
210 3-970-854-01 SPRING, STAND-BY
211 3-969-081-01 KNOB, STAND-BY
212 3-302-492-00 SPRING, COMPRESSION
213 3-054-010-01 BUTTON, S/S
214 1-418-758-21 SWITCH BLOCK, CONTROL (SS-9700)
215 A-7074-149-A EJ-30 (VHXRIBO) BOARD,COMPLETE
(TRV17/TRV37/TRV47/TRV57/TRV57P/TRV67/TRV87/TRV87P)
215 A-7074-162-A EJ-29 (CO) BOARD,COMPLETE (TR317/TR517)
216 3-713-786-21 SCREW (M2X3)
217 1-676-298-11 FP-150 FLEXIBLE BOARD
218 X-3948-329-1 LID ASSY, CASSETTE
(TR317/TR517/TRV17/TRV37/TRV47/TRV57/TRV57P)
218 X-3948-331-1 LID ASSY, CASSETTE (TRV67/TRV87/TRV87P)
219 3-968-729-81 SCREW (M2), LOCK ACE, P2
* 220 3-058-247-01 PROTECTOR (97), LS FLEXIBLE
221 1-418-760-11 SWITCH BLOCK, CONTROL (FK-8500)
(TRV87/TRV87P)
221 1-418-760-21 SWITCH BLOCK, CONTROL (FK-8500)
(TR317/TR517/TRV17/TRV37/TRV47/TRV57/TRV57P/TRV67)
222 A-7074-113-A DD-134 (VO) BOARD,COMPLETE (TRV47)
222 A-7074-119-A DD-134 (VHMMBO) BOARD,COMPLETE
(TRV17/TRV37/TRV57/TRV57P/TRV67)
222 A-7074-125-A DD-134 (VHXRIBO) BOARD,COMPLETE
(TRV87/TRV87P)
222 A-7074-151-A DD-134 (LO) BOARD,COMPLETE (TR317)
222 A-7074-155-A DD-134 (CO) BOARD,COMPLETE (TR517)
223 3-053-741-01 FRAME (S), LENS (TR317/TR517/TRV47)
* 223 3-053-742-01 FRAME (L), LENS
(TRV17/TRV37/TRV57/TRV57P/TRV67/TRV87/TRV87P)
* 224 3-058-969-02 CUSHION (97), CD FLEXIBLE
225 1-672-673-11 FP-46 FLEXIBLE BOARD
(TRV17/TRV37/TRV57/TRV57P/TRV67/TRV87/TRV87P)
226 A-7074-130-A VL-29 (VHXRIBO) BOARD,COMPLETE
(TRV17/TRV37/TRV57/TRV57P/TRV67/TRV87/TRV87P)
227 1-676-296-11 FP-147 FLEXIBLE BOARD
* 228 3-058-250-01 SHEET (97), IM GUARD
229 A-7094-702-A VC-234 (N-LO) BOARD,COMPLETE (SERVICE)
(TR317)
229 A-7094-703-A VC-234 BOARD,COMPLETE (SERVICE)(TR517)
229 A-7094-711-A VC-234 (N-VHXRIBO)BOARD,COMPLETE
(SERVICE)(TRV87/TRV87P)
229 A-7094-712-A VC-234 (N-VHMMBO)BOARD,COMPLETE
(SERVICE)(TRV67)
229 A-7094-713-A VC-234 (N-VMMB0)BOARD,COMPLETE
(SERVICE)(TRV57/TRV57P)
229 A-7094-714-A VC-234 (N-VO)BOARD,COMPLETE (SERVICE)
(TRV47)
229 A-7094-728-A VC-234 (N-VBLO)BOARD,COMPLETE(SERVICE)
(TRV17/TRV37)
230 1-672-671-11 FP-44 FLEXIBLE BOARD
(TRV17/TRV37/TRV47/TRV57/TRV57P/TRV67/TRV87/TRV87P)
230 1-676-297-11 FP-149 FLEXIBLE BOARD (TR317/TR517)
231 A-7074-116-A SE-101 (N-VLO) BOARD,COMPLETE
(TRV17/TRV37/TRV47)
231 A-7074-123-A SE-101 (N-VHMMBO) BOARD,COMPLETE
(TRV57/TRV57P/TRV67)
231 A-7074-129-A SE-101 (N-VHXRIBO) BOARD,COMPLETE
(TRV87/TRV87P)
232 3-053-743-01 FRAME (A), MD
233 3-987-675-01 FRAME (B), MD
234 A-7074-115-A PJ-100 (N-VLO) BOARD,COMPLETE
(TRV17/TRV37/TRV47/TRV57/TRV57P)
234 A-7074-122-A PJ-100 (N-VHMMBO) BOARD,COMPLETE
(TRV67)
234 A-7074-128-A PJ-100 (N-VHXRIBO) BOARD,COMPLETE
(TRV87/TRV87P)
234 A-7074-158-A PJ-99 (CO) BOARD,COMPLETE (TR317/TR517)
235 3-968-729-91 SCREW (M2), LOCK ACE, P2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
