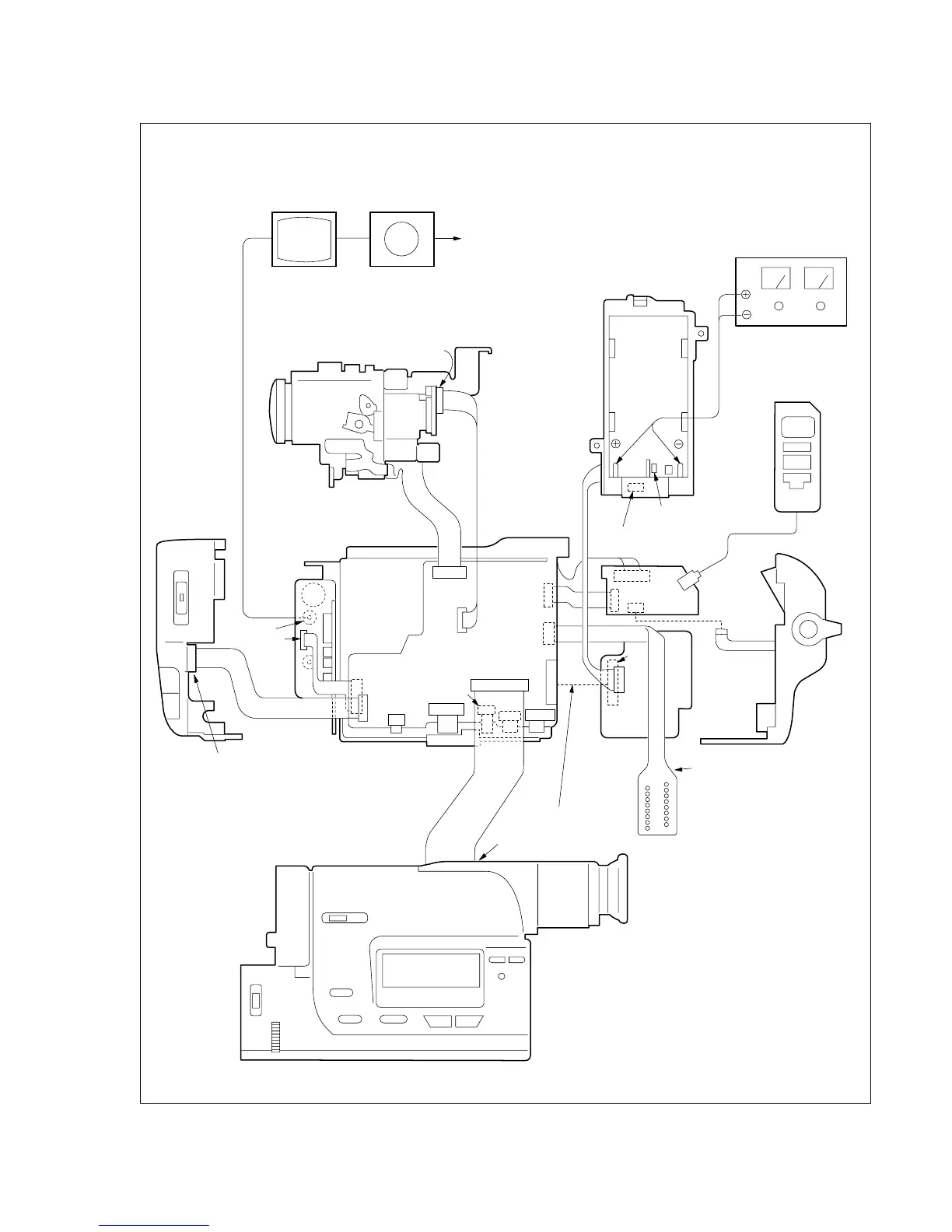

Fig. 5-1-4.
Color monitor
Lens block
Battery
terminal
Regulated power supply (*1)
Adjustment remote
commander
(8.4 ±0.1Vdc)
Battery switch
Cabinet (L)
DC IN jack
LANC
jack
Must be connected when
performing the video system
and color viewfinder system (*2)
adjustments.
Must be connected
CPC-7 jig
(J-6082-382-A)
CN551
CN982
CN980
CN252
CN251
CN253
CN931
CN301
DD-134
board
EJ-29 board
CN981
CN975
CN501
CN971
VIDEO jack
PJ-99 board
CN101
Front panel block
CN972
MA-374 board CN303
CN974
CN976
CN978
CN979
VC-234 board
CN101
CD-239 board
CN201
Vector scope
Terminated at 75Ω
*1: Press the battery switch of the battery terminal using adhesive tape, etc.
To CF-66 board CN001
Cabinet (R)
*2: CCD-TR517 model only.
TR model (CCD-TR317/TR517)
