6-3
CF-66
CF-66
A
A
C
C
E
C
E
E
B
B
A
D
D
D
B
not supplied
not
supplied
not
supplied
not
supplied
(TR517) (TR517)
(TR317)
(TR317)
B/W EVF
block assembly
(See page 6-6)
COLOR EVF
block assembly
(See page 6-7)
101
102
102
102
102
102
102
103
104
105
106
107
108
109
110
111
112
113114
115
106
105
102
102
116
117

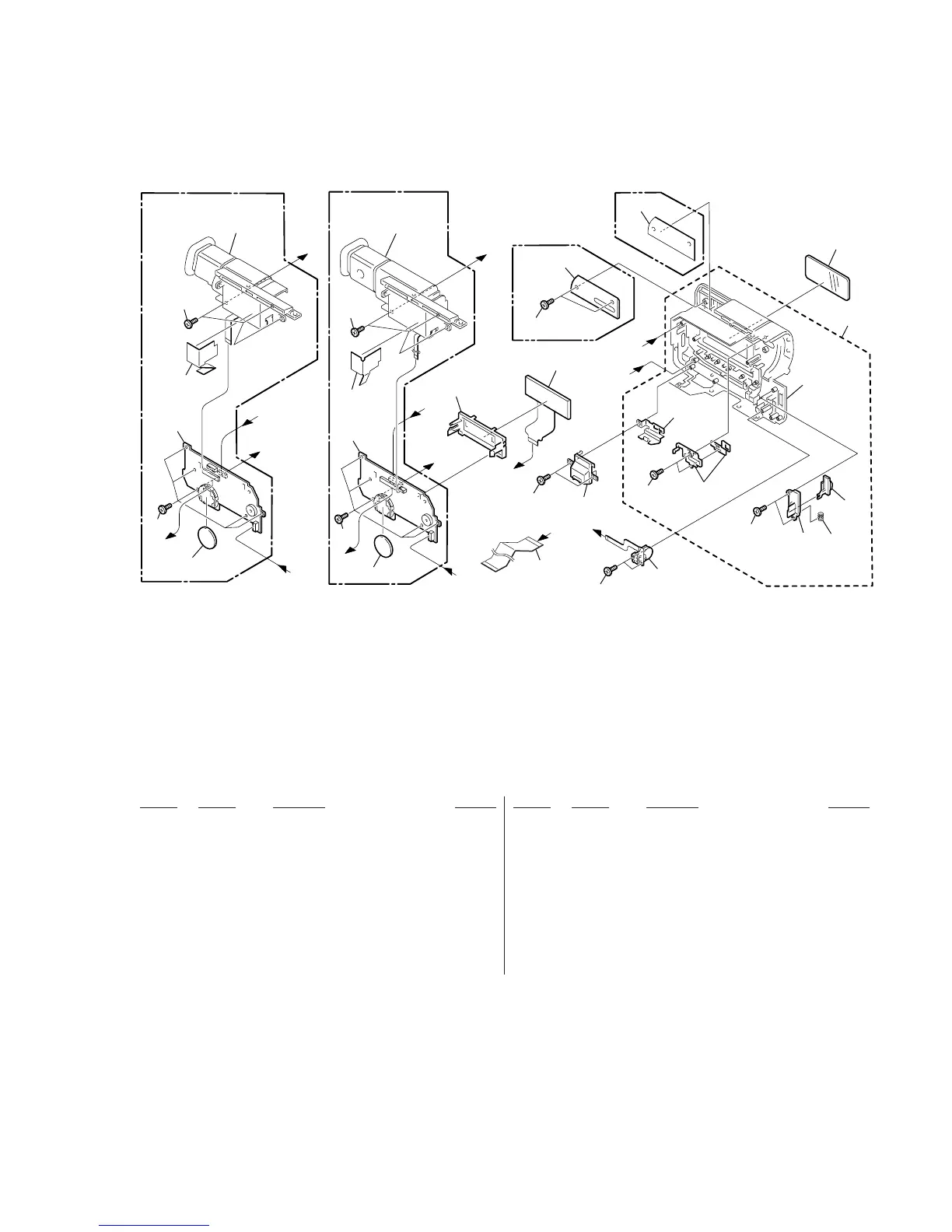

6-1-3. CABINET (R) BLOCK ASSEMBLY (TR MODEL) (TR317/TR517)
101 1-475-621-11 SWITCH BLOCK, CONTROL(MR-8500)
102 3-948-339-61 TAPPING
103 3-053-717-11 RETAINER, LITHIUM BATTERY
104 1-791-948-11 CABLE, FLEXIBLE FLAT (FFC-001)
105 A-7074-152-A CF-66 (N-LO) BOARD,COMPLETE (TR317)
105 A-7074-156-A CF-66 (N-CO) BOARD,COMPLETE (TR517)
* 106 3-059-290-01 GUIDE (97),HARNESS (TR317)
* 106 3-059-310-01 GUIDE (C) (97), HARNESS (TR517)
107 3-058-238-01 HOLDER (97), LCD
108 1-803-844-81 DISPLAY PANEL, LIQUID CRYSTAL
* 109 3-058-246-01 BLIND (97), CVF (TR517)
110 3-058-219-01 WINDOW (97), LCD (TR517)
110 3-058-219-11 WINDOW (97), LCD (TR317)
111 X-3950-088-1 CABINET (R) (97) ASSY
112 3-056-469-01 KNOB (93), MF
113 3-568-315-01 SPRING, COMPRESSION
114 3-053-690-01 RETAINER (93), MF
115 3-053-713-01 LID(92), LITHIUM BATTERY
116 3-948-339-81 TAPPING (TR317)
117 3-053-684-01 GUIDE (B) (93), TILT (TR317)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
