2-11
2-11.CF-66 BOARD, LIQUID CRYSTAL DISPLAY PANEL (TR MODEL)
VC-234
MA-
Board
SE-101
PJ-Board
DD-134
C
F-
B
oard
Cabinet (R) block assembly
DP-78 harness (8P)
(TRV model)
CF-66 board (TR model)
CF-67 board (TRV model)
CPC-7 jig
(J-6082-382-A)
Mechanism deck
VC-234 board
SE-101 board
(TRV model)
Adjustment remote
commander (RM-95)
FP-43 flexible board
(20P)
MA-374 board (TR model)
MA-375 board (TRV model)
Front panel block assembly
PJ-99 board (TR model)
PJ-100 board (TRV model)
VL-29 board
(Video light model)
Lens block
FFC-001 flexible flat cable (45P)
Control switch block
(FK-8500) (10P)
Control switch block
(SS-9700)
EJ-29 board (TR model)
EJ-30 board (TRV model)
DD-134 board
AC IN
DC IN
AC POWER
ADAPTOR
Flexible board
(from Lens block)
(24P)
FP-147 flexible board (14P)
Battery panel
block assembly
CD-239 board (TR model)
CD-240 board (TRV model)

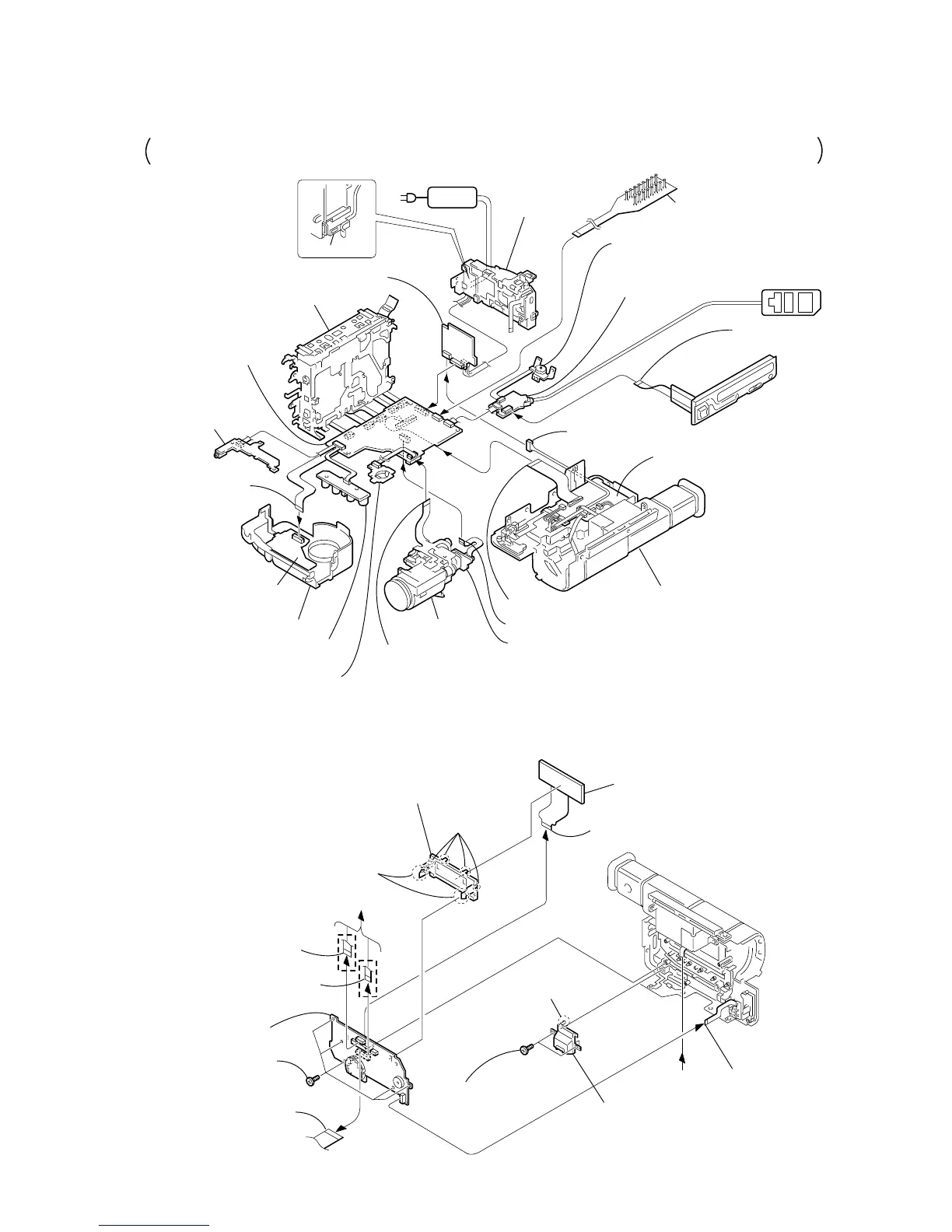

[CONNECTION DIAGRAM FOR SERVICE POSITION (Mainly for voltage measurement and check)]
MA-374/375, CF-66/67, CD-239/240, VL-29, PJ-99/100, SE-101, EJ-29/30, DD-134, VC-234 BOARDS,
MECHANISM DECK-2
CF-66
A
A
2 Control switch bloc
k
(MR-8500) (8P)
5 Claw
9 Liquid crystal
display panel (26P)
q; CF-66 board
qd Liquid crystal
display panel
8 Two claws
qa Four claws
qs LCD holder (97)
3 FP-151 flexible board (20P)
(TR517 model)
3 FFC-289 flexible flat cable (4P)
(TR317 model)
1 FFC-001 flexible flat cable
(45P)
4 Two tapping
screws
(B2
× 5)
6 Lithium
battery retainer
7 Five tapping
screws
(B2
× 5)
