CCD-TR317/TR517/TRV17/TRV37/TRV47/
TRV57/TRV57P/TRV67/TRV87/TRV87P
4-43 4-44
USER CONTROL
CF-67

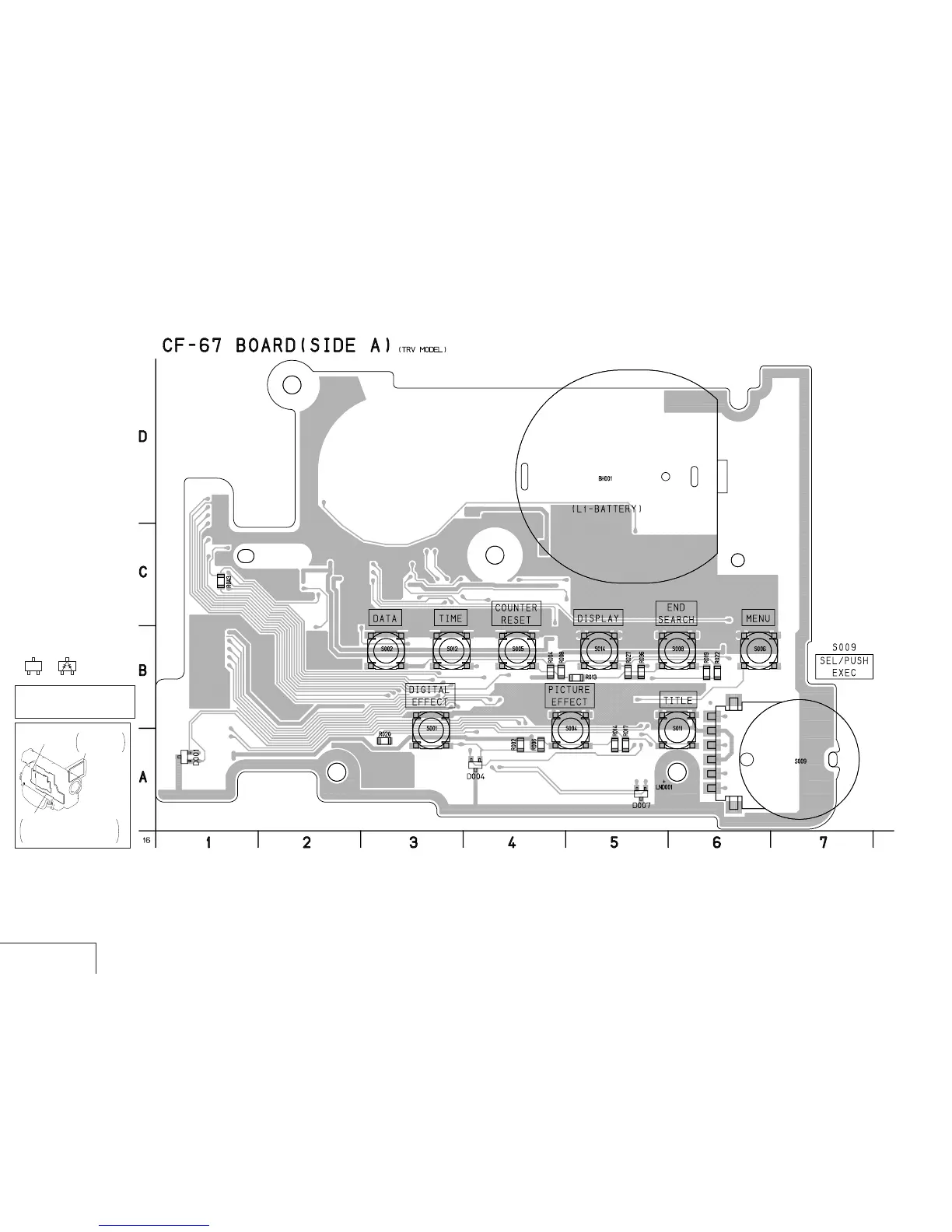

CF-67 (USER CONTROL) PRINTED WIRING BOARD
— Ref. No. CF-67 Board; 1,000 Series —
For printed wiring board
• Refer to page 4-100 for location.
• Chip parts
Transistor Diode
There are few cases that the part
printed on this diagram isn’t
mounted in this model.
C
BE
3
21
CF-67 (TRV model)
(USER CONTROL)
PD-117
RGB LCD DRIVER,
TIMING GENERATOR,
CG LCD DRIVER,
BACK LIGHT
VC-234
CAMERA PROCESSOR, Y/C PROCESSOR,
MEMORY, FOCUS/ZOOM MOTOR DRIVE,
REC/PB HEAD AMP, LINE IN/OUT,
IR TRANSMITTER, EVR D/A, MODE CONTROL,
SERVO, HI CONTROL, AUDIO, DC IN
