CCD-TR317/TR517/TRV17/TRV37/TRV47/
TRV57/TRV57P/TRV67/TRV87/TRV87P

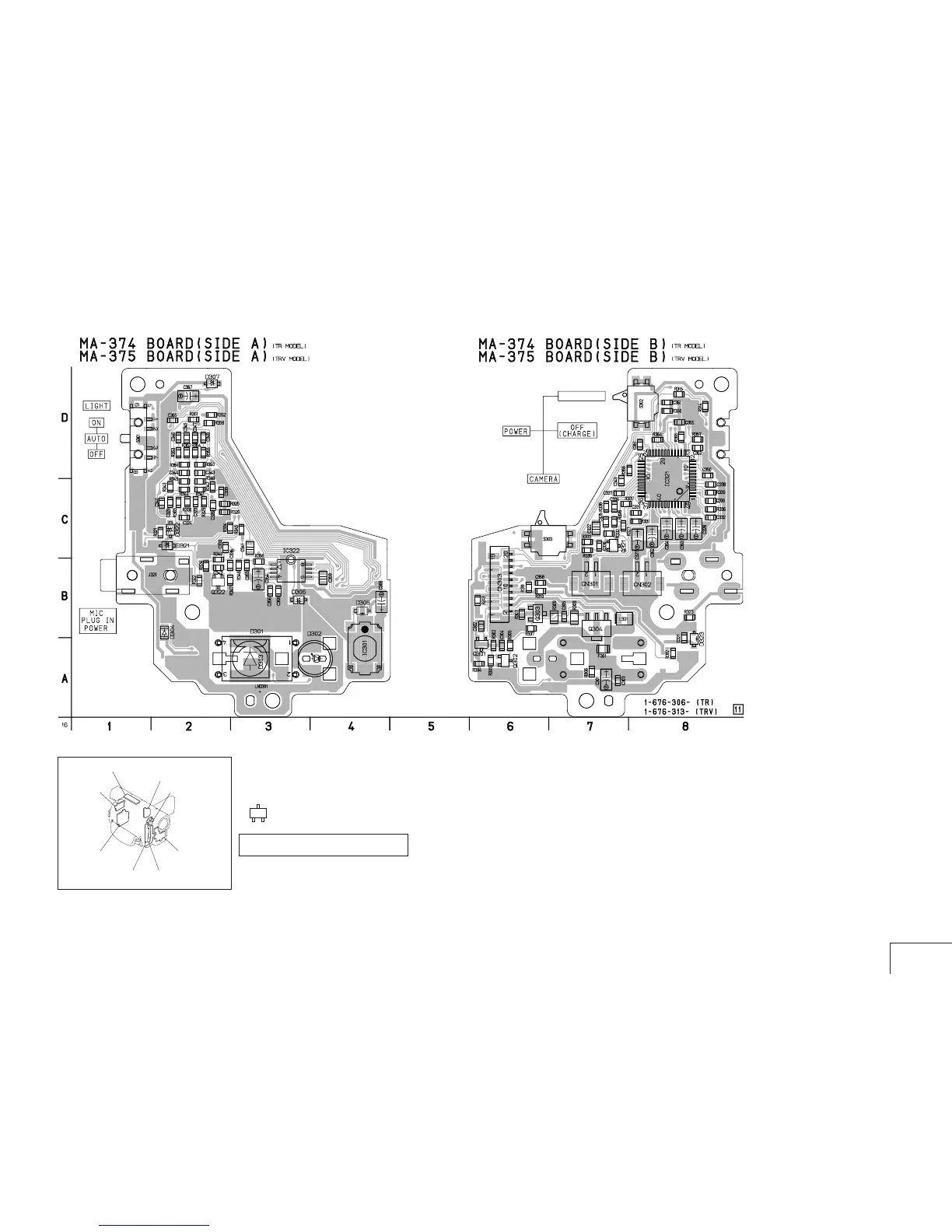

MA-374/375 (MIC AMP) PRINTED WIRING BOARD
— Ref. No. MA-374/375 Board; 1,000 Series —
For printed wiring board
• Refer to page 4-101 for location.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
4-65 4-66
MIC AMP
MA-374/375
CD-239 (TR model)
CD-240 (TRV model)
(CCD IMAGER)
VL-29 (Video light model)
(VIDEO LIGHT)
MA-374 (TR model)
MA-375 (TRV model)
(MIC AMP, LASER LINK)
PJ-99 (TR model)
PJ-100 (TRV model)
(AV IN/OUT)
SE-101 (TRV model)
(STEADY SHOT)
DD-134
(DC/DC CONVERTER)
VF-129 (B/W EVF model)
(B/W EVF)
EJ-29 (TR model)
EJ-30 (TRV model)
(LANC CONNECTOR)
VTR/PLAYER
Ver 1.2 2000. 11
