1-8. Signal Inputs and Outputs

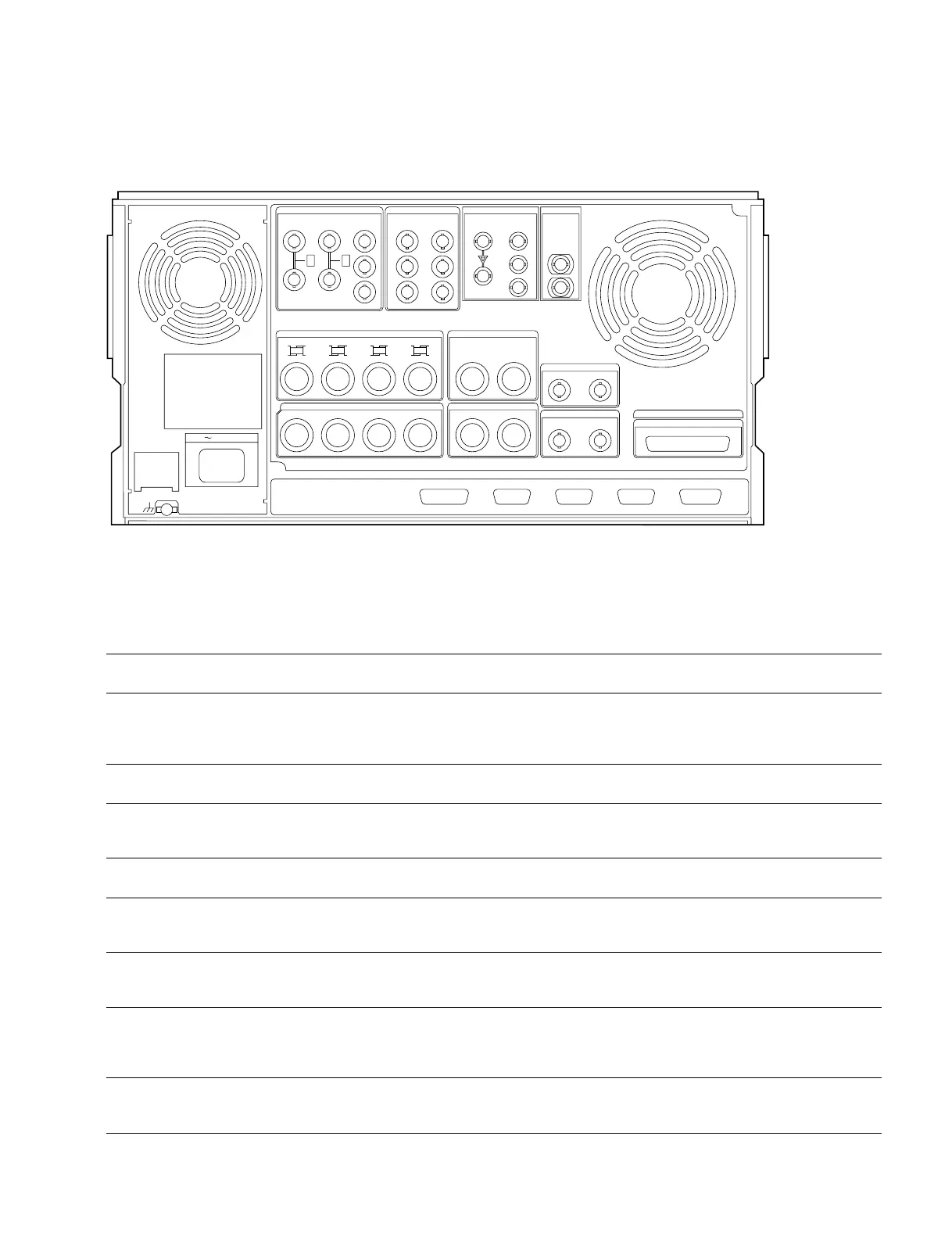

< Rear panel >
n This figure is with optional kit.
Output connectors
2 VIDEO OUTPUT, COMPOSITE BNC x 3 (including 1 for character superimpose)
Analog composite video 1.0 V p-p, 75 Z, sync negative
2 VIDEO OUTPUT, COMPONENT BNC x 3 (1 set: Y, R-Y, and B-Y)
Analog component video
Y : 1.0 V p-p, 75 Z, sync negative
R-Y/B-Y : 0.7 V p-p, 75 Z
3 SDI BNC x 3 (including 1 for character superimpose)
Serial digital interface (270 Mbit/s), complies with SMPTE 259M & ITU-R BT.656
4 AUDIO OUTPUT XLR 3-pin x 4 (1 set: CH1, CH2, CH3, and CH4)
Analog audio 4 channels
+4 dBm (Standard) (600 Z load), low impedance, balanced
5 TIME CODE OUT XLR 3-pin x 1
Time code 2.2 V p-p, low impedance, balanced
6 MONITOR OUTPUT XLR 3-pin x 2 (1set: L and R)
Analog audio
+4 dBm (Standard) (600 Z load), low impedance, balanced
7 AUDIO OUTPUT (AES/EBU) BNC x 2 (1set: CH1/2 and CH3/4)
Digital audio 4 channels
AES/EBU format, complies with AES-3id-1995
!/ SDTI BNC x 2 (optional kit BKNW-118 or BKNW-124)
Serial data transport interface (270 Mbit/s) in conformity to MPEG2 4: 2: 2 P@ML
BKNW-118: Complies with SMPTE 305M (SDTI (SX))
BKNW-124: Complies with SMPTE 305M + 326M (SDTI-CP)
PHONE JM-60 stereo phone jack
(Upper control panel) Analog audio
up to _12 dBu (8 Z load), unbalanced
