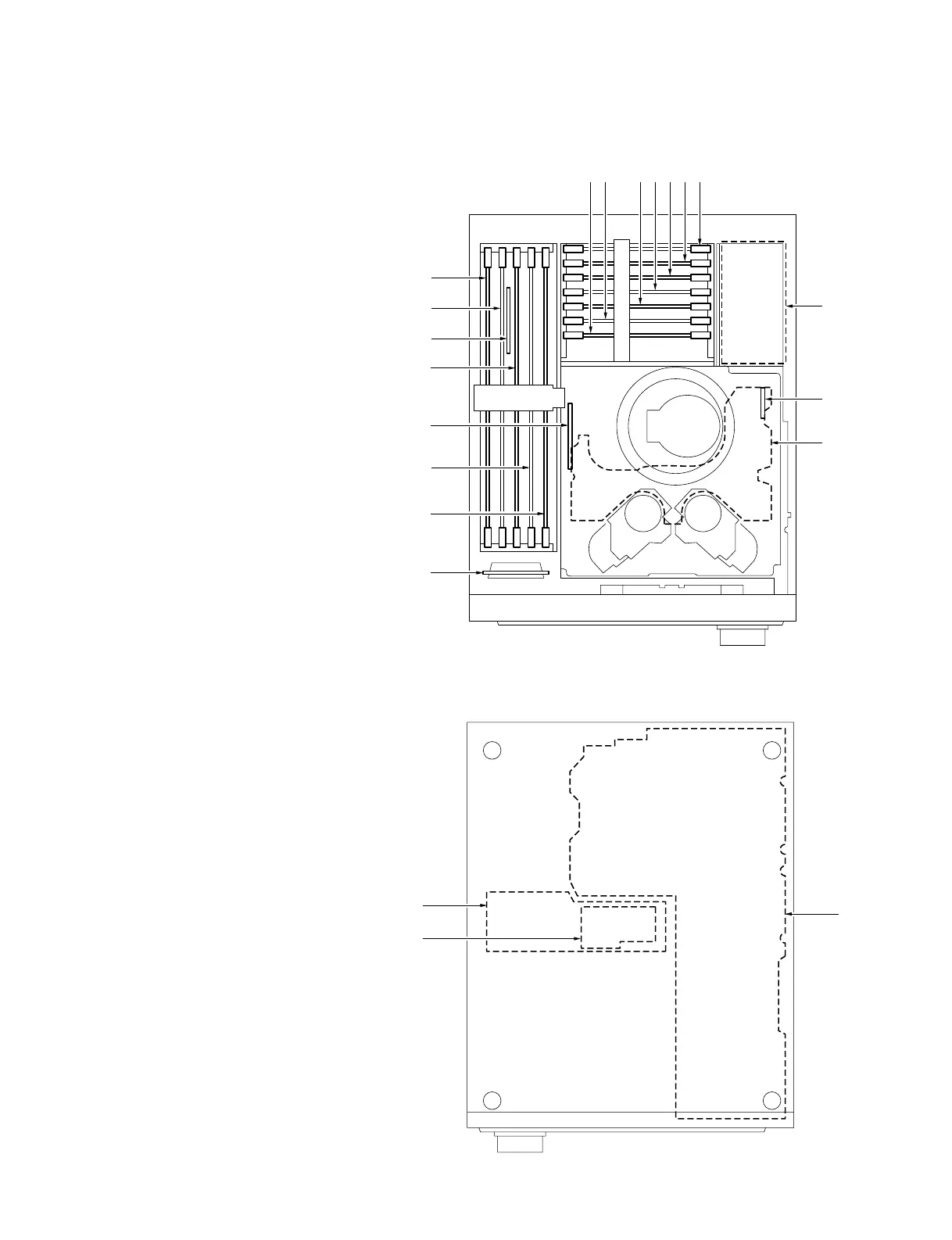

2-8. Location of Main Parts
< Bottom View >
< Top View >
2-8. Location of Main Parts
2-8-1. Printed Circuit Boards and Power
Supply Unit Locations
AC-169 ................... $;
APR-40 ................... 9
AU-260 ................... 8
CCM-15 .................. !,!.
CL-29...................... @.
CP-278 .................... $-
CP-301 .................... $[
CP-334 .................... $/
CP-335 .................... $=
DEC-110................. 4
DM-89 .................... 5
DPR-118 ................. 1
DPR-119 ................. $, (BKNW-118)
DPR-150 ................. $. (BKNW-124)
DR-315 ................... ![
DT-34D................... !\
EQ-75 ..................... !/
FP-117 .................... #=
KY-438 ................... #'
LP-81 ...................... #/
MB-818................... #.
MS-58 ..................... !=
PC-70 ...................... #-
PD-35...................... @/
PTC-54 ................... !'
PTC-59 ................... @=
PTC-69/101 ............ #,
PTC-71 ................... @'
RM-130/190 ........... $]
RM-179................... $\ (on the RM-130 board)
RM-82/-181 ............ @[ @\
SDI-41 .................... 2
SE-344 .................... @] @;
SE-461 .................... !;
SS-83 ...................... !-
SWC-31 .................. #;
SWC-35 .................. #\
TBC-23A ................ 7
TBC-24 ................... 6
TC-102.................... !]
TR-78...................... @,
TR-79...................... @-
VPR-47 ................... 3
VR-223 ................... #[
VR-224 ................... #]
Power supply unit ... $'
