1-10. Switch and Shorting Plug Settings on PC Boards
1-10-1. APR-40 Board
If necessary, perform the following audio-related settings using the shorting plugs on the APR-40 board.
. Audio input level
*1
. Audio input headroom
*2
. Audio output level
*1
. Audio output headroom
*2
. Monitor output level
*1
. Monitor output headroom
*2
. Monitor output level, fixed/variable selection
*1: Select the level for each channel from +4, 0,
__
__
_3,
__
__
_20 dBm. (Factory settings: +4 dBm for each channel)
*2: Select the headroom for each channel from 20, 18, 16, dB. (Factory settings: 20 dB for each channel)
1-10. Switch and Shorting Plug Settings on PC Boards
1-670-578- MADE IN JAPAN
A
D
6
7
5
4
3
2
1
B
AE
FCJGH
K
L M N PR
>EP–GW<
A No.
S No.LOT No.
COR100
–3
0
+4
–20
COR501
–3
0
+4
–20
–3
0
+4
–20
COR500
COR601
COR600
20
18
16
20
18
16
COR701
–3
0
+4
–20
–3
0
+4
–20
COR700
COR801
COR800
20
18
16
20
18
16
COR902
–3
0
+4
–20
–3
0
+4
–20
COR900
COR952
COR950
20
18
COR901 COR951
16
20
18
16
APR-40
201816
COR101
COR200
–3
0
+4
–20
201816
COR201
COR300
–3
0
+4
–20
201816
COR301
COR400
–3
0
+4
–20
201816
COR401
UNITY (L) UNITY (R)
RV100 RV200 RV300 RV400
RV500 RV600 RV700 RV800
RV900 RV1000

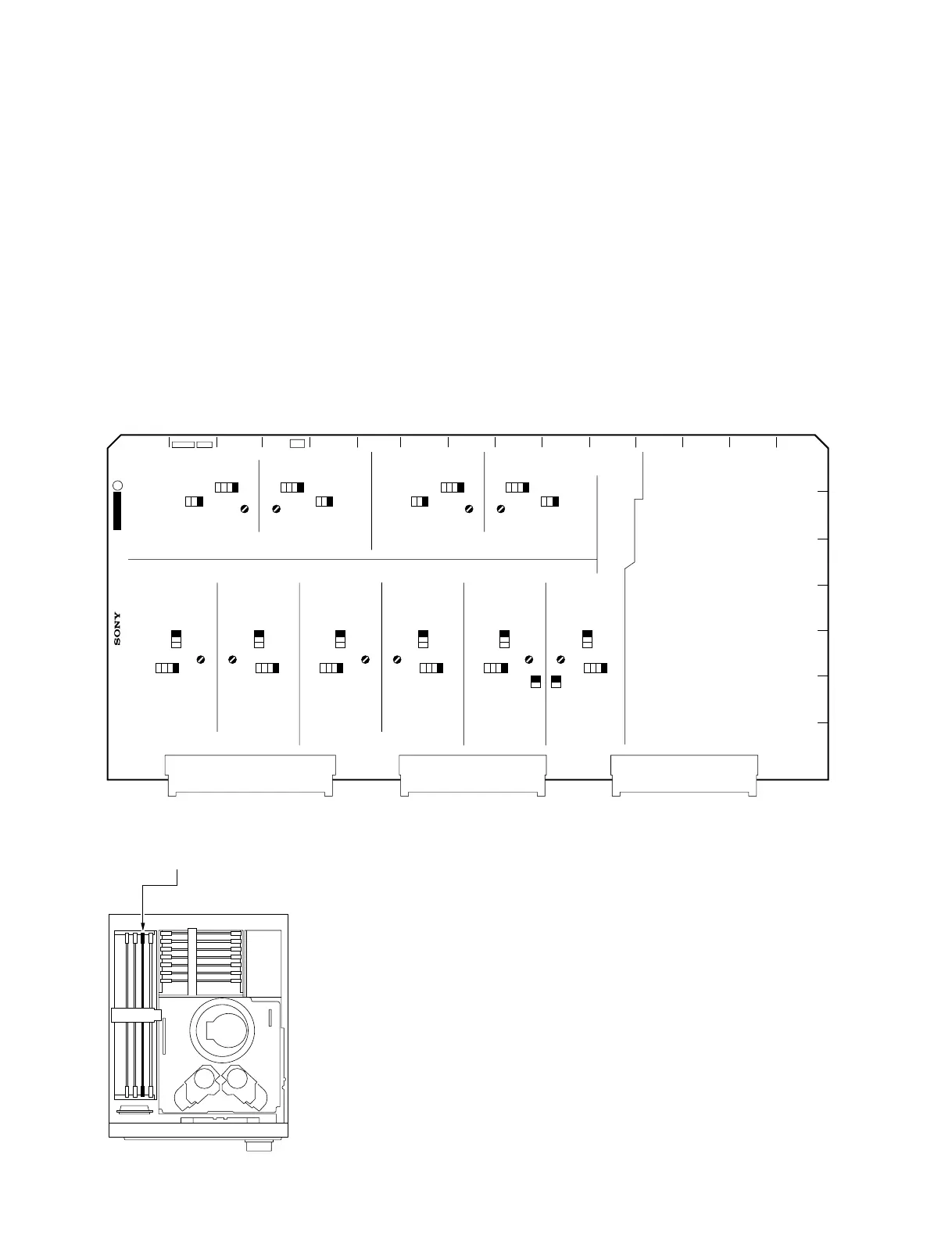

APR-40 Board (Side A)
n
Refer to Section 2-13 for remov-
ing/reattaching the plug-in boards.
< Top View >
