1-19
DNW-A75/A75P
RV100 RV200S100 S200
1
2
3
4
5
6
7
A
A BCD E F G
A No.
LOTNO,
S NO,
AU-260
1-670-582- MADE IN JAPAN
>EP–GW<
1-10-2. AU-260 Board
HEAD TUNE switches (For Betacam/Betacam SP longitudial audio playback)
It is not necessary to change the setting of this switch, when installing.
Channel Ref. No. Description
CH1 S100 By coupling with RV100, adjust the CH1 head amp high frequency response. This
switch is used in audio head dumping adjustment. When the unit is shipped, this switch
is set to the position based on the adjustment condition.
CH2 S200 By coupling with RV200, adjust the CH2 head amp high frequency response. This
switch is used in audio head dumping adjustment. When the unit is shipped, this switch
is set to the position based on the adjustment condition.
1-10. Switch and Shorting Plug Settings on PC Boards
n
Refer to Section 2-13 for remov-
ing/reattaching the plug-in board.

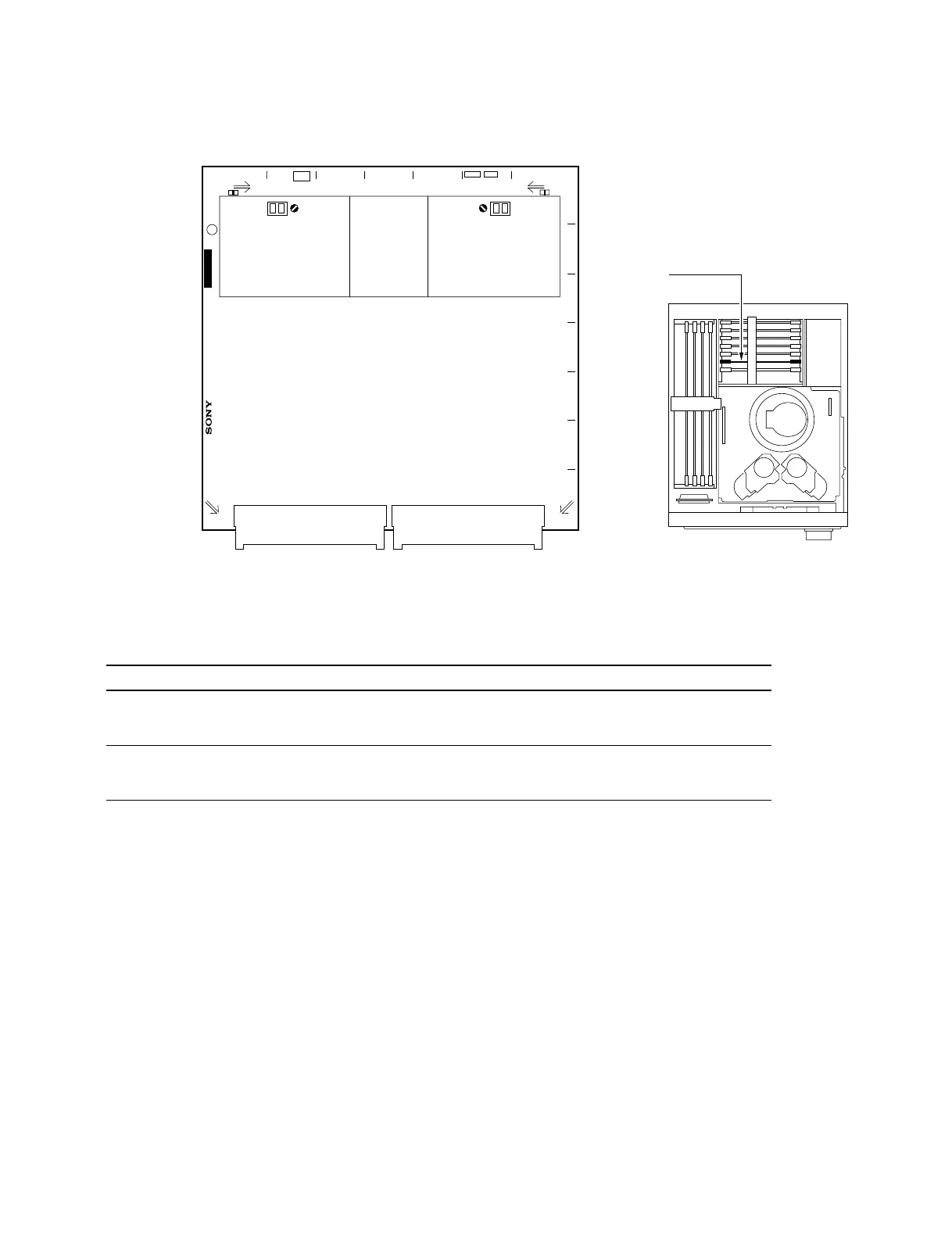

AU-260 Board (Side A) < Top View >
To Next Page
