2-10. System of Cassettes
!/9!-8!=!] !\
Large cassette (L cassette)
![7!/9!-8!=
Small cassette (S cassette)
6324
Large cassette (L cassette)
51 32 4
Small cassette (S cassette)
2-10. System of Cassettes

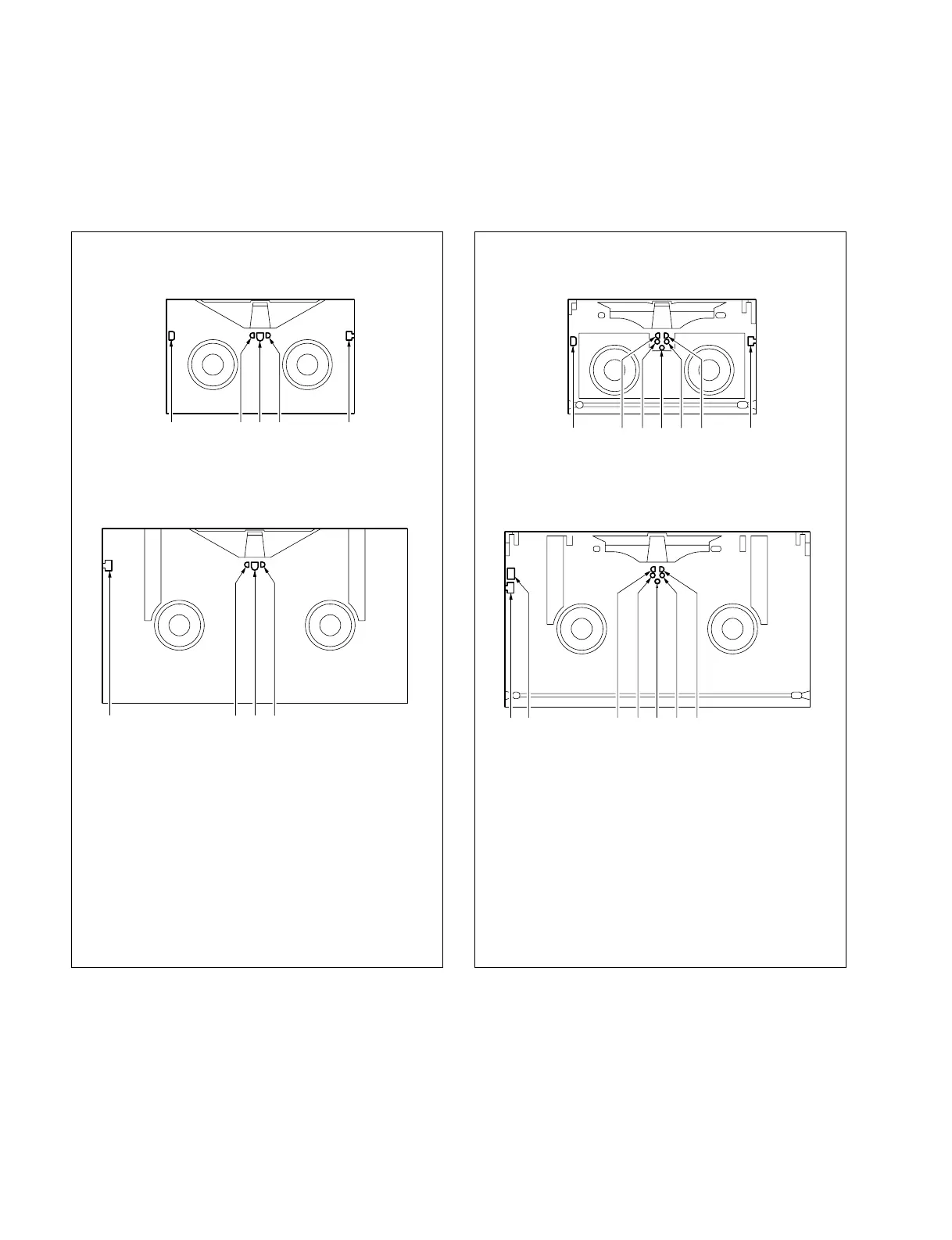

As shown in the figure below, plugs and tabs are provided at the back side of the cassette tape.
Cassette for Betacam SX
7 S cassette analog REC inhibit hole
8 Tape thickness detection tab
9!/!- Cassette classification detection tabs
!= Reel hub diameter detection tab
![ S cassette digital REC inhibit tab
!] L cassette digital REC inhibit tab
!\ L cassette analog REC inhibit hole
Cassette for Betacam or Betacam SP
1 S cassette REC inhibit tab (for oxide tape)
2 Tape thickness detection tab
3 Metal tape detection tab
4 Reel hub diameter detection tab
5 S cassette REC inhibit plug (for metal particle tape)
6 L cassette REC inhibit plug
