Sony DNW-A75 - Section 3 Error Message; 3-1. Overview of Error Message

3-1
DNW-A75/A75P
Section 3
Error Message
Ex. Superimposed
on Video Monitor
3-1. Overview of Error Message
This unit has self-diagnostics function.
When trouble is detected, an ALARM indicator on the lower control panel is lighted
immediately and an error message and error code are displayed in the time data
display area and event display area.
Also, an error code and error message are superimposed on the video monitor
connected to the VIDEO OUTPUT COMPOSITE 3 (SUPER) connector. Further-
more, as for the some error codes, object which error occurred is displayed as sub
error message on the video monitor.
m
. To superimpose the error message and code on the video monitor, the CHARAC-
TER switch on the sub control panel must be set to ON.
. There are the error messages without error code. These messages are only
displayed on the time data display area.
. The error messages with error code are memorized to NV-RAM (Non-volatile
RAM) as the error logging data.
(Refer to Section 4-3 for the error logging data.)
. The messages on the time data display area differ from the messages which are
superimposed on the video monitor in some items.

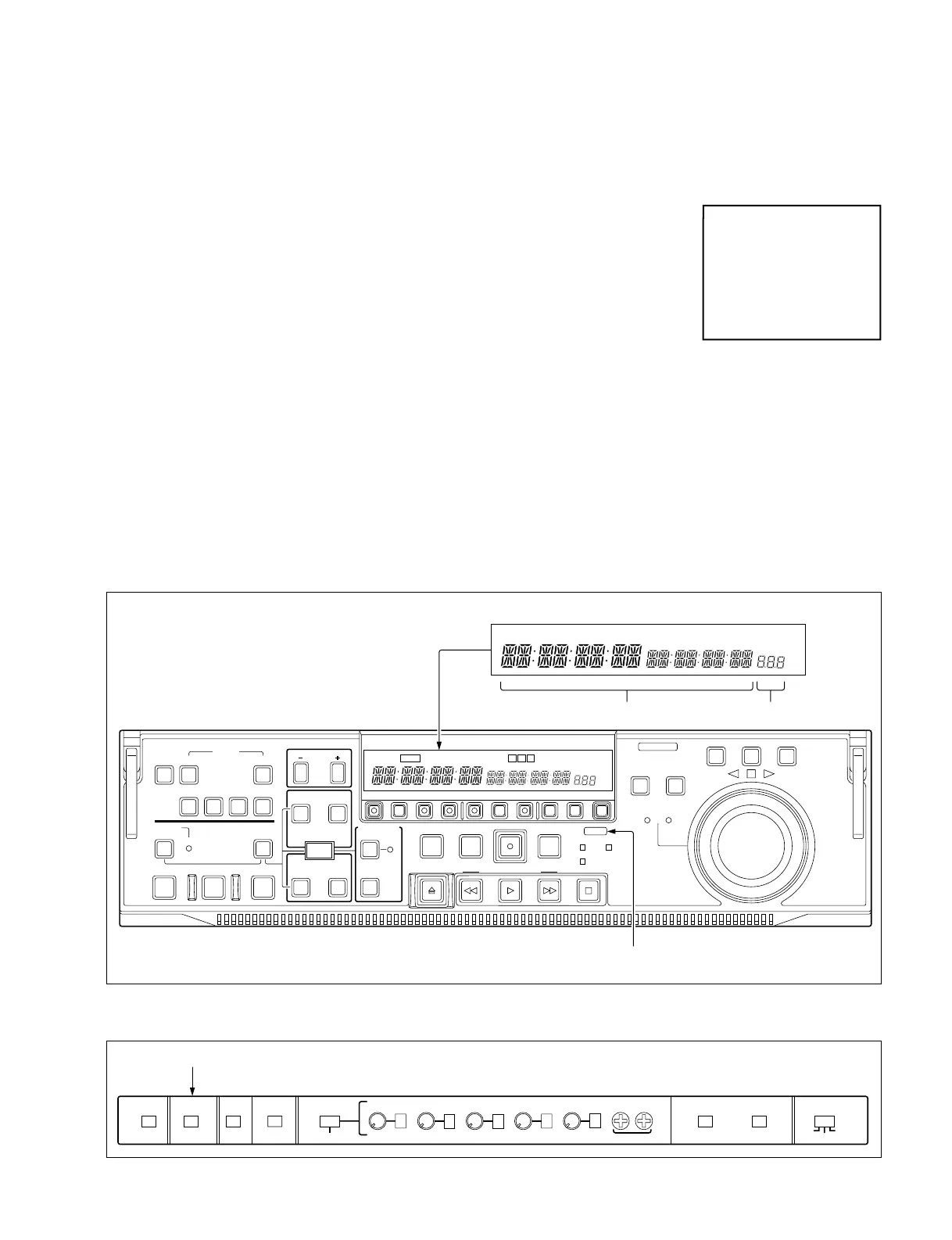

Error Message/Code Display Area and ALARM Indicator
CHARACTER Switch on Sub Control Panel
EXT INT
CHARACTER
OFF ON
DOLBY
NR
OFF ON
REC
INHIBIT
ON OFF
KEY
INHIBIT
ON OFF
PROCESS
CONTROL
VIDEO
MANUAL
PRESET
MENU
OUT REF
INPUT
VIDEO
REF
CAPSTAN
LOCK
8FD
(625/50)
2FD
4FD
CHROMA
MANUAL
PRESET
SET UP /
BLACK LEVEL
MANUAL
PRESET
Y/C DELAY
MANUAL
PRESET
CHROMA PHASE
MANUAL
PRESET
SYNC
SYSTEM PHASE
SC
REMOTE LOCAL
CONTROL
PANEL
CHARACTER switch : ON
ASSEMBLE
VIDEO
VI TC UB INTRP A IN DF LTC VITC 8F 4F 2F
A OUT TCG TOTAL REMAIN 525 625
EVENT
%
DOLBY
NR
CONFI ON
PB EE
MEMORY
PREVIEW AUTO EDIT
OUT
IN
STANDBY
PLAYER RECORDER
VAR
FORWARD
JOGSHUTTLE
PREROLL
REC
EJECT REW PLAY F FWD STOP
REVERSE
PB MENU SET HOLD CTL/TC/UB RESET
CH
CONDITION
CAPSTAN
LOCK
FEED
CH-1 CH-2 CH-3 CH-4
TOTAL/REMAIN
INSERT
TIME CODE
DELETE
REVIEW
DMC EDIT
IN AUDIO OUT
ENTRY
PREREAD CONFI
SERVO
ALARM
MARK
LIST
GOOD SHOT
REC/
ERASE
EDIT
INHIBIT
KEYREC
BETACAM SX
SHUTTLE/
VAR JOG
TRIM
%
ALARM indicator
Time data display area
Error message display
Error code display
ERROR-01
REEL TROUBLE-1
