Sony DNW-A75 - Main Mechanical Part Locations

2-13
DNW-A75/A75P
12345
6
!/
!-
!=
![
!]
!\
!;!'!,!.
@/
@-
@]
@;
@\
@'
@.
@=
@,
@[
7
9
8
2-8-2. Main Mechanical Part Locations
2-8. Location of Main Parts
INDEX
1 Audio/TC head
2 Audio/TC erase head
3 TG-3 tape guide
4 Head drum
5 Threading ring
6 T tension regulator arm
7 Full-erase head
8 CTL head
9 TG-2 tape guide
!/ Audio/TC head cleaner
!- T drawer arm
!= TG-10 tape guide
![ Pinch roller
!] T reel table
!\ T brake assembly
!; T worm wheel
!' Worm gear
!, Drive gear
!. S worm wheel
@/ S brake assembly
@- S reel table
@= S tension regulator
@[ Tape cleaner
@] TG-0 tape guide
@\ Capstan shaft
@; Cleaning roller block
@' Pinch press block
@, TG-4 tape guide
@. Threading gear block

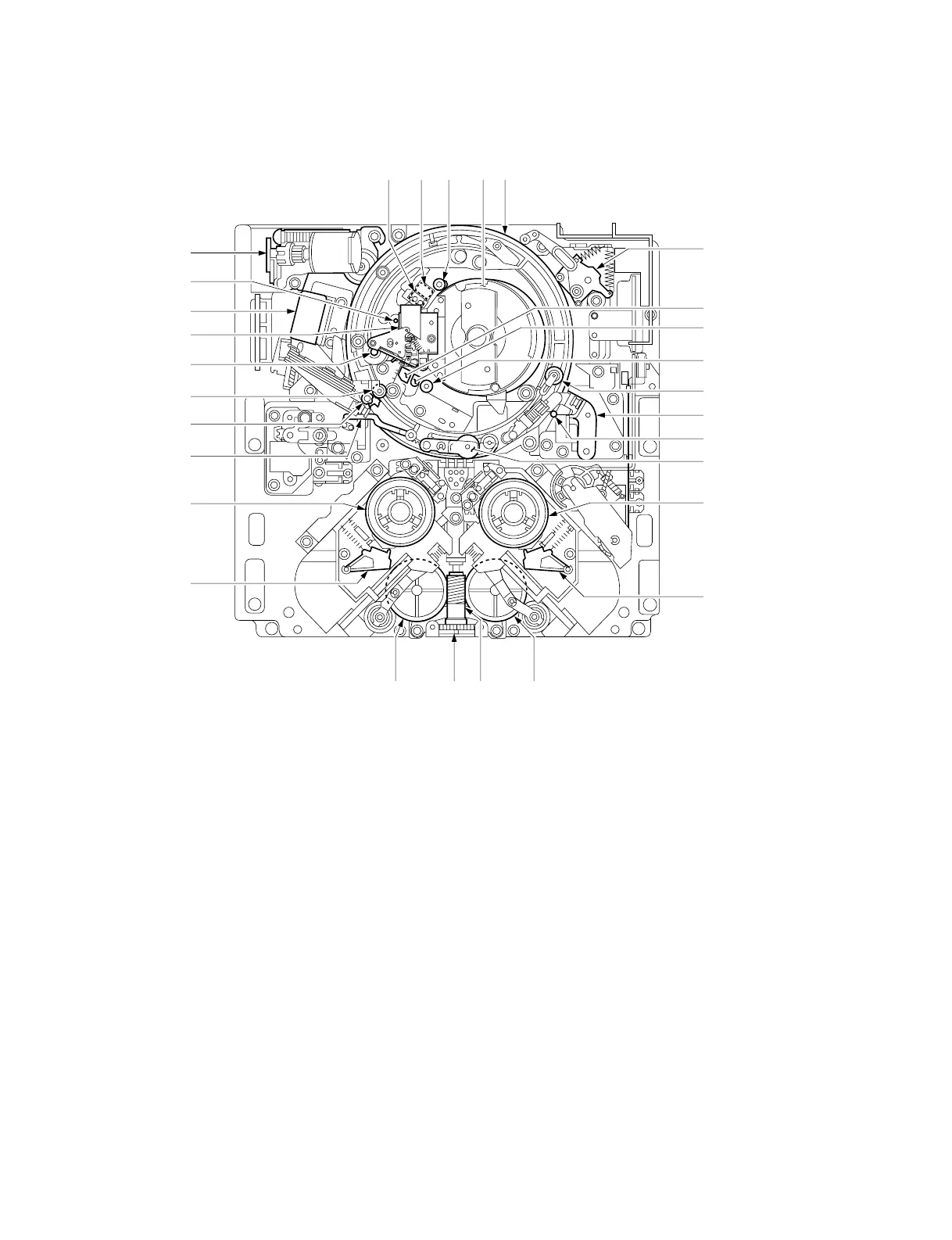

< Top View of Mechanical Deck >
