6-31
DSR-70/70P
A

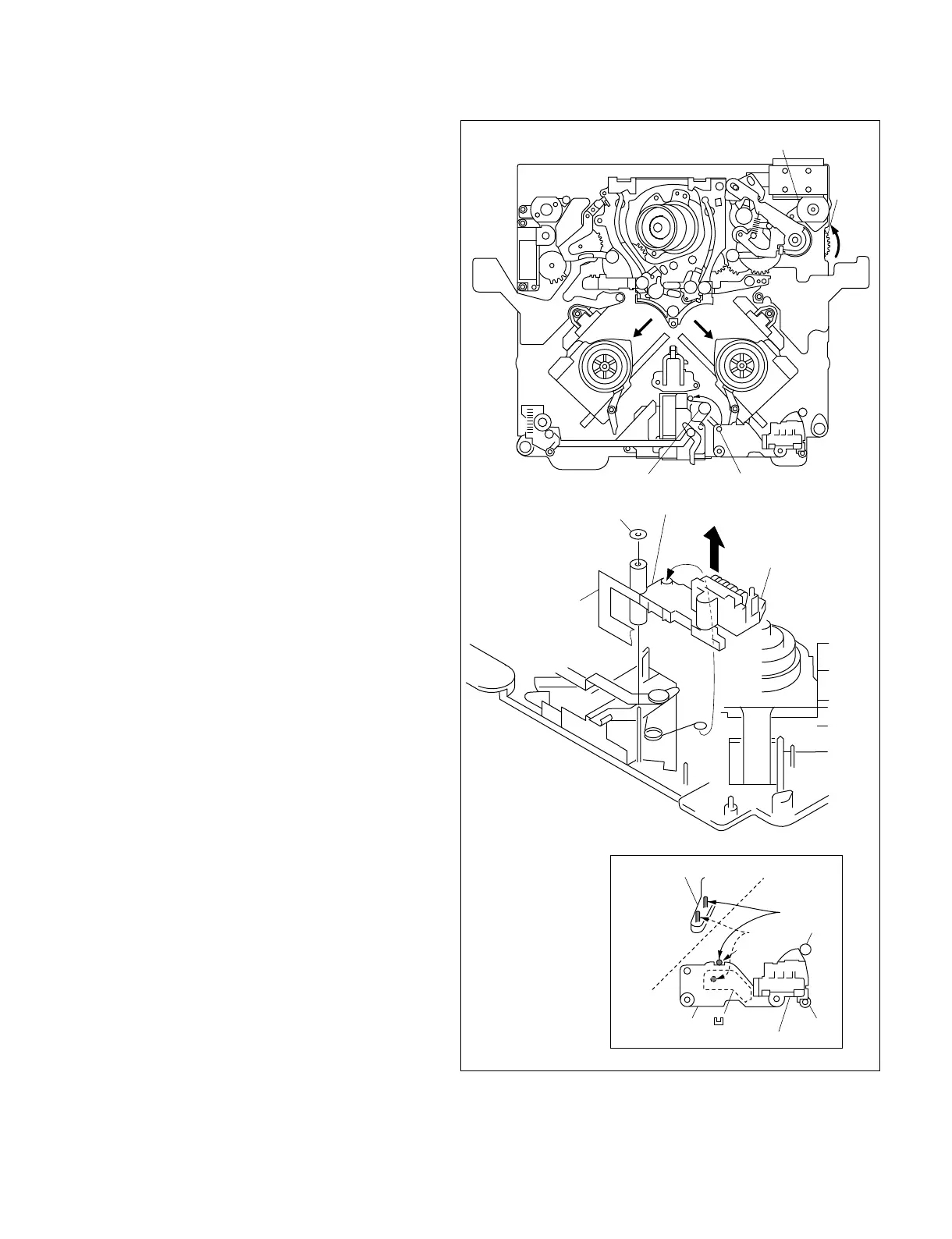

Fig.- 1
Reel shift motor
Gear B
Spring hookReturn spring
Stop washer 1.5
MIC arm assembly
MIC holder assembly
Flexible card wire
T reel table assembly
Shaft a
Shaft b
Shaft d
Cut-out
Shaft c
area
MIC arm
assembly
MIC holder assembly
3. Place the DSR-70/70P horizontally.
4. Revolve the gear B of the reel shift motor with
fingers in the direction A until the T reel table
assembly is moved to the position where a
reference cassette is placed.
5. Remove the return spring of the MIC arm
assembly from the spring hook.
6. Remove the stop washer 1.5 from the MD
chassis and remove the MIC arm assembly.
Note : Be careful not to damage the flexible
card wire when removing it.
To Next Page
