8-24 (N)
DSR-70/70P
. OA mode
Record the specified signal on a blank tape, and play
back the recorded segment.
. COMPONENT IN ; 75 % Color bars
Connection 1
COMPONENT Y OUT (75 Z terminated)
1RV400/DDE-13 (
*
E-3)
TRIG : REF. VIDEO
WFM or Oscilloscope

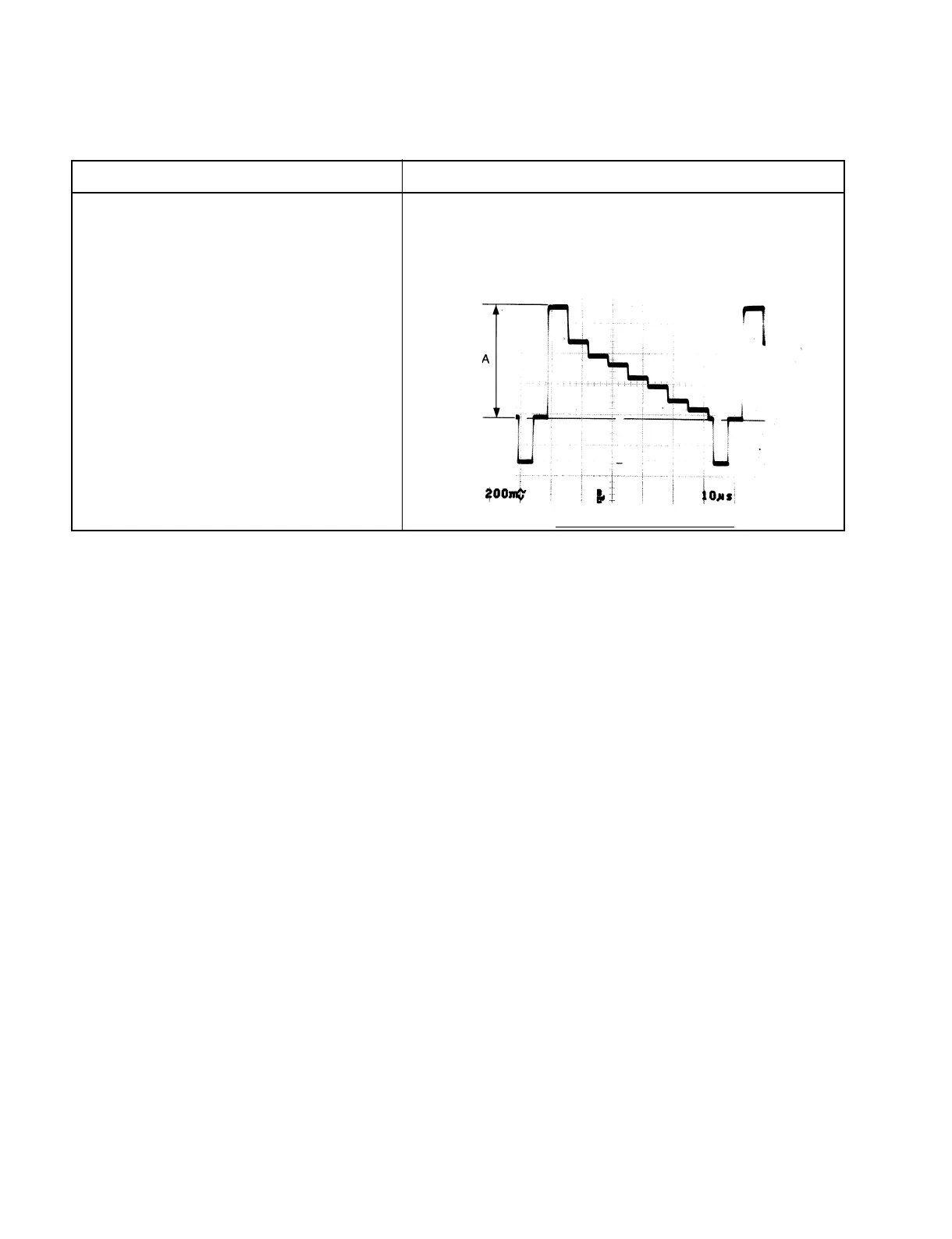

Spec. A=0.714 ±0.007 V (100 ±1 IRE)
Conditions for adjustment Adjustment
..
..
. Specification
8-2-2-24. REC Y Level Adjustment
To Next Page
