6-3
DSR-70/70P
Flexible card wire
Flexible card wire
RP-105 board
CN1
DR-364 board
CN481
6-2. DRUM ASSEMBLY REPLACEMENT
Note : Be careful not to damage the tape guides in the vicinity of the drum assembly, nor the tape running surface
of the drum assembly.
Tools
Cleaning cloth : 3-184-527-01
Cleaning fluid : 9-919-573-01
Removal

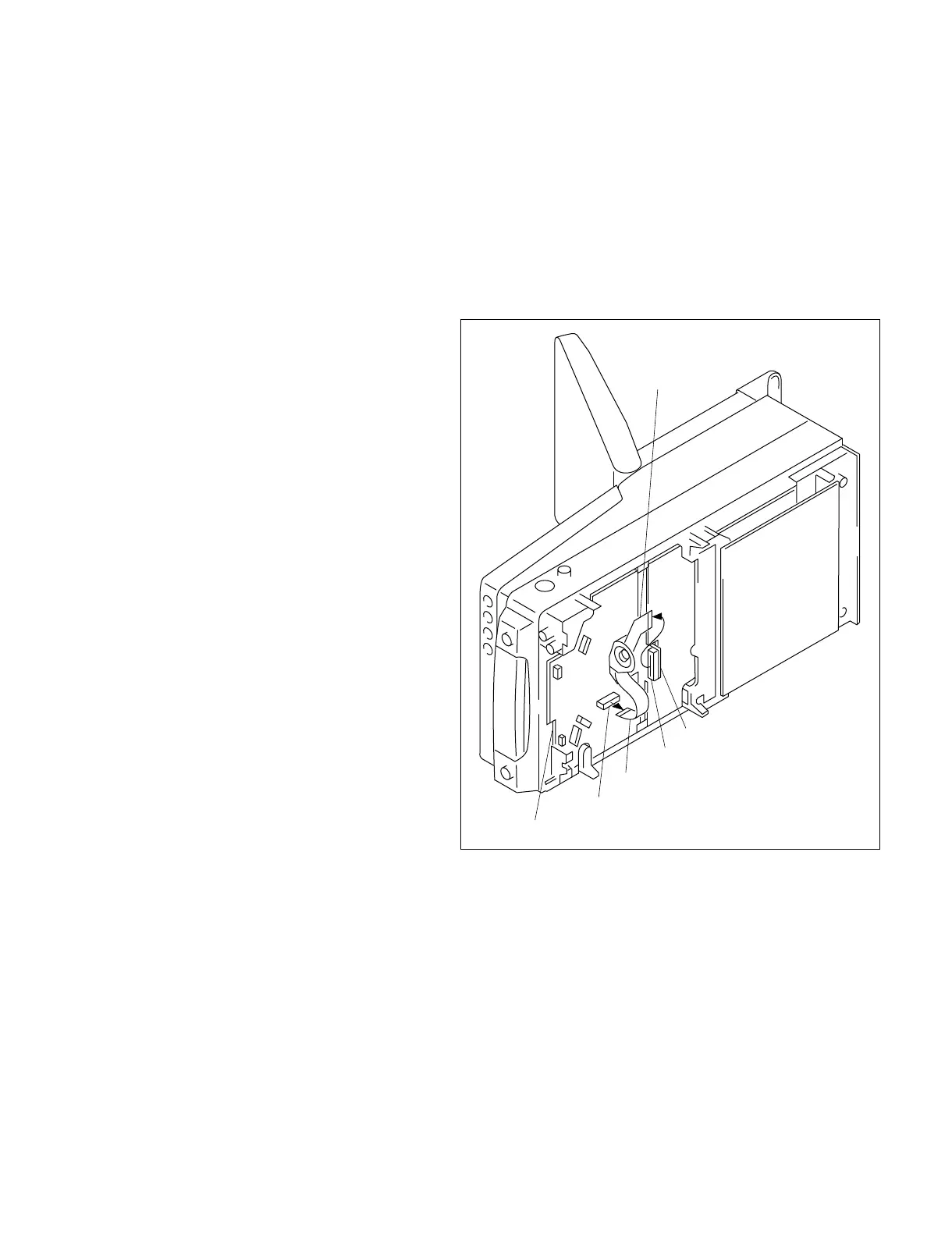

1. Place the DSR-70/70P with its left side down.
2. Remove the bottom plate assembly.
(Refer to section 2-6-3.)
3. Remove the flexible card wire from the
connector (CN481) on the DR-364 board.
4. Remove the flexible card wire from the
connector (CN1) on the RP-105 board.
To Next Page
