2-32
DSR-70/70P
PWH 
2.6x5
CN1
CN2
CN3
CN4
PWH 2.6x5
Ornamental panels (large)

Ornamental panel (small)

Harness

Notch
KY-433 board

Harness clampers

Jog/shuttle dial
Harness
clampers

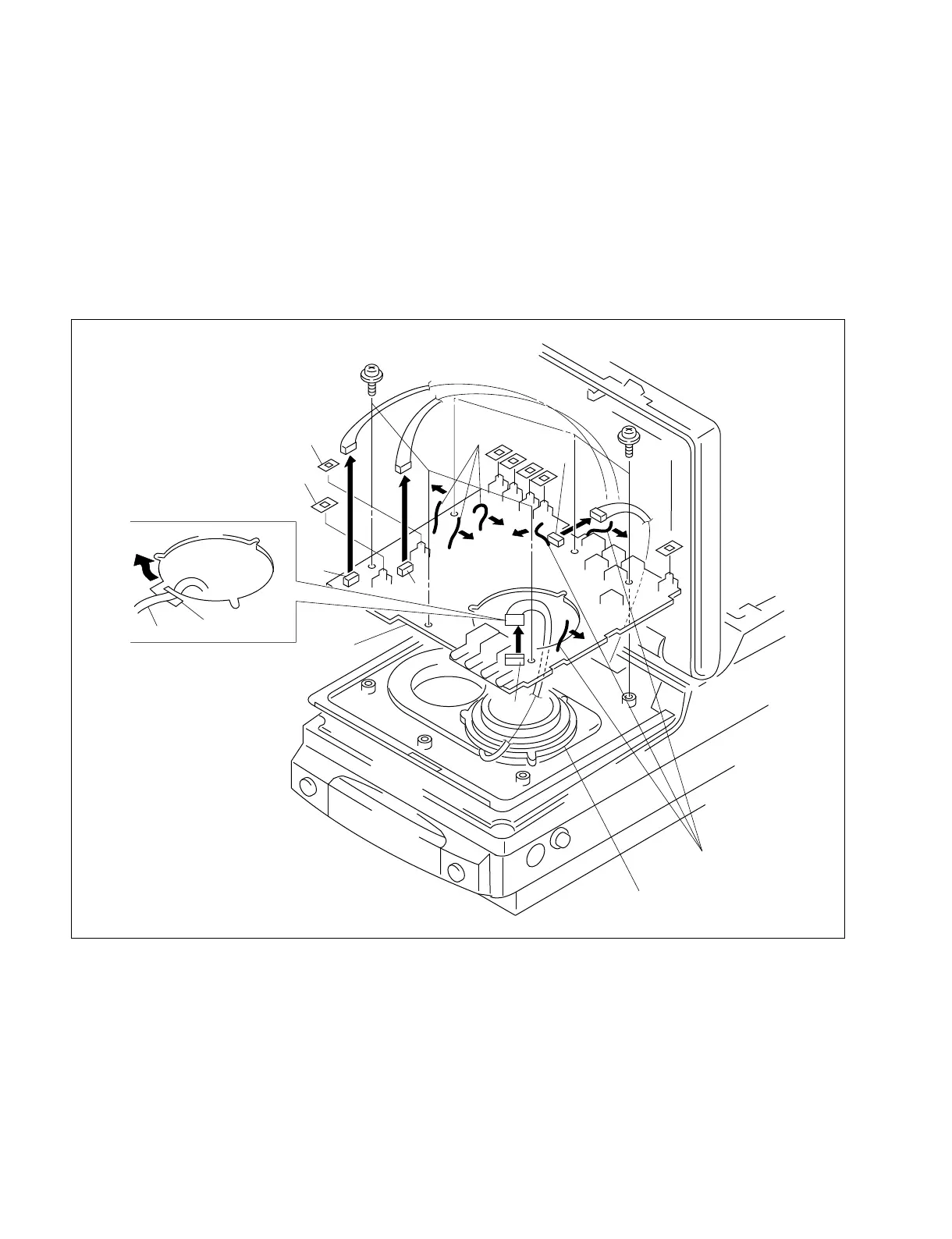

2-8-11.KY-433 Board
1. Remove the control panel assembly. (Refer to section 2-6-5.)
2. Remove the harness from the six harness clampers. Remove the three connectors (CN1, CN3 and CN4) from the
KY-433 board.
3. Remove the connector (CN2) from the KY-433 board and remove the harness from the notch.
4. Remove the six screws and remove the KY-433 board.
5. Remove the six switch ornamental panels (large) and the switch ornamental panel (small).
6. Attach the KY-433 board by reversing the removal procedure.
