Sony DSBK-150 - Replacement of Main Parts; Back Light

2-19
DSR-70/70P
B 2x4
CN4
CN3
CN1
CN2
CN5
B 2x4
Coating lead pin
Coating lead
pin
DP-290 board
Harness
Harness
Harness
Harness clamp
A
B
P 2.6x5
P 2.6x5
Lock lever
LCD panel
LCD top frame assembly

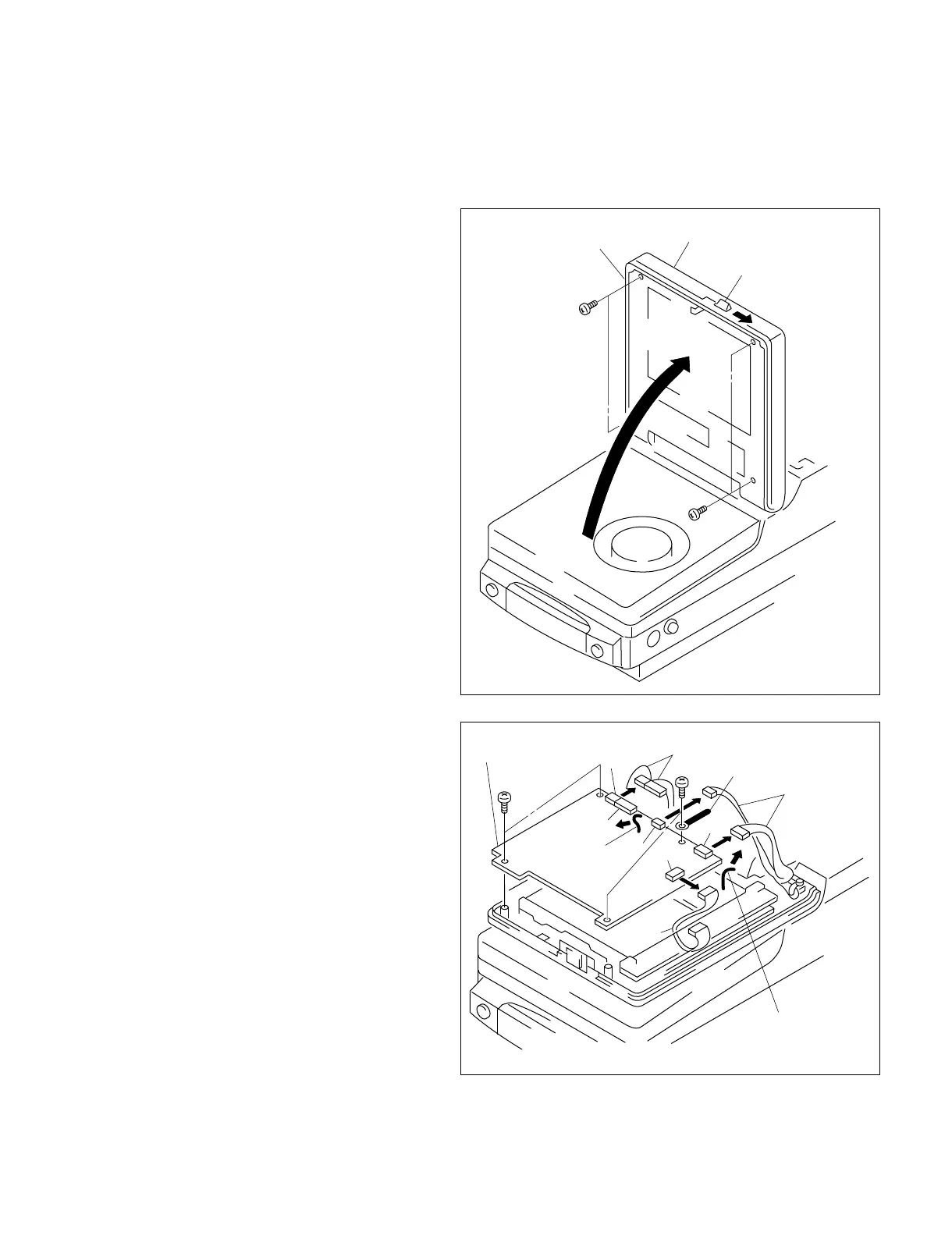

2-7. REPLACEMENT OF MAIN PARTS
2-7-1. Back Light
1. Push the lock lever in the direction of arrow A,
and open the LCD panel in the direction of arrow
B. Remove the four screws from the LCD panel
and tilt the LCD panel up to the original position.
Remove the LCD top frame assembly.
2. Remove the harness from the two coating lead
pins and from the harness clamp respectively.
Remove the harness from the five connectors
(CN1, CN2, CN3, CN4 and CN5) on the DP-290
board.
3. Remove the four screws and remove the DP-290
board.
