6-30
DSR-70/70P
CN485
DR-364 board
Flexible card wire

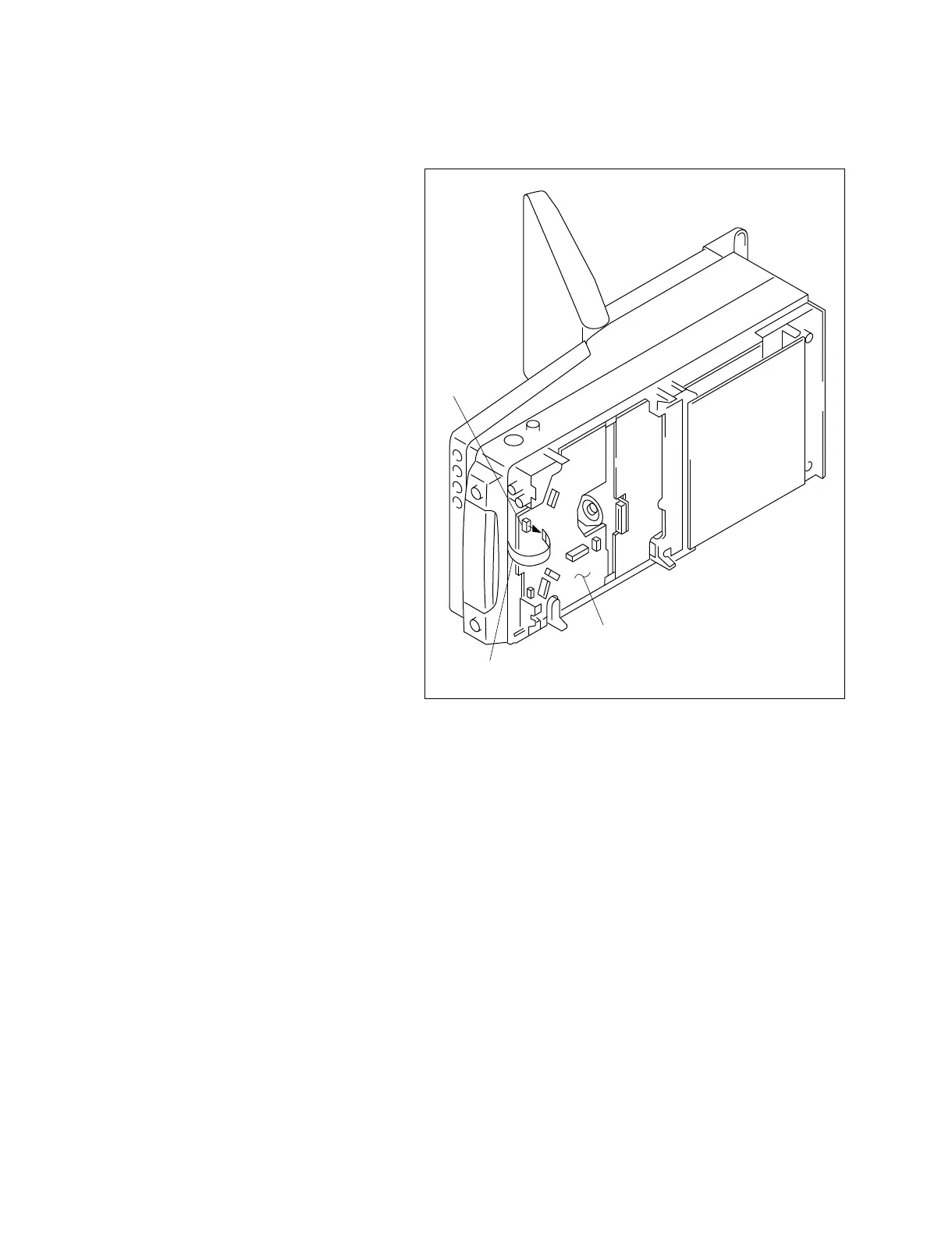

6-21. MIC HOLDER ASSEMBLY REPLACEMENT
1. Place the DSR-70/70P with its left side down,
and remove the bottom panel assembly.
(Refer to section 2-6-3.)
2. Remove the flexible card wire from the
connector (CN485) of the DR-364 board.
