Sony DSBK-150 - Sync Phase Adjustment

8-32 (N)
DSR-70/70P
Step 1 (Coarse Adjustment)
. Perform adjustment by switching CH-A and CH-B of
WFM alternately.
1RV100/DEN-12 (B-1)
WFM
Spec. Perform adjustment until falling edge of CH-A sync signal
agrees with falling edge of CH-B sync signal.
Conditions for adjustment Adjustment
..
..
. Specification

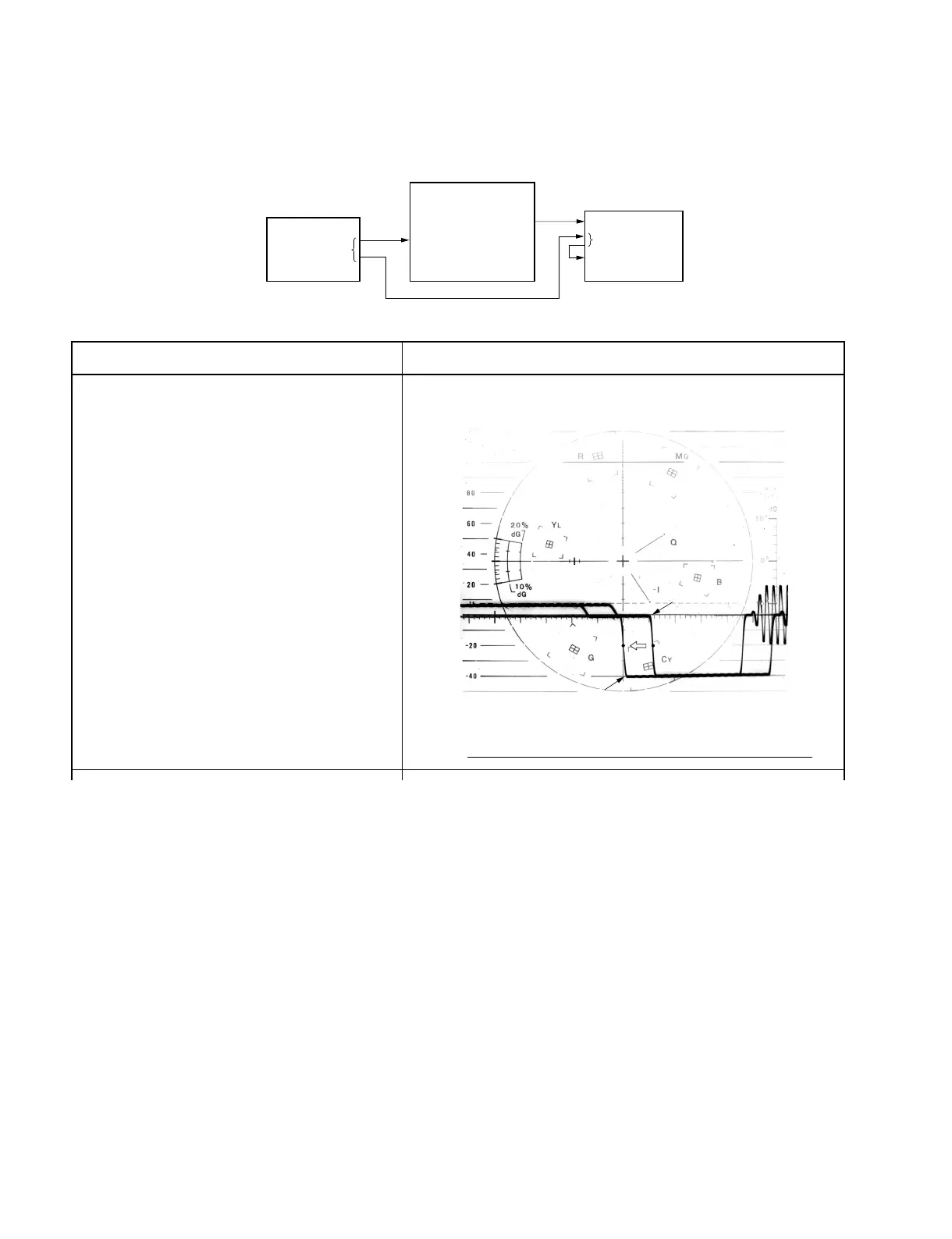

8-2-2-34. Sync Phase Adjustment
(Connection 3)
DSR-70
TSG-130A
Composite
WFM
CH-B
VIDEO
OUT 1
REF. IN
(75 Z term.)
CH-A (75 Z term.)
EXT REF.
(75 Z term.)
CH-B
CH-A
