8-10 (N)
DSR-70/70P

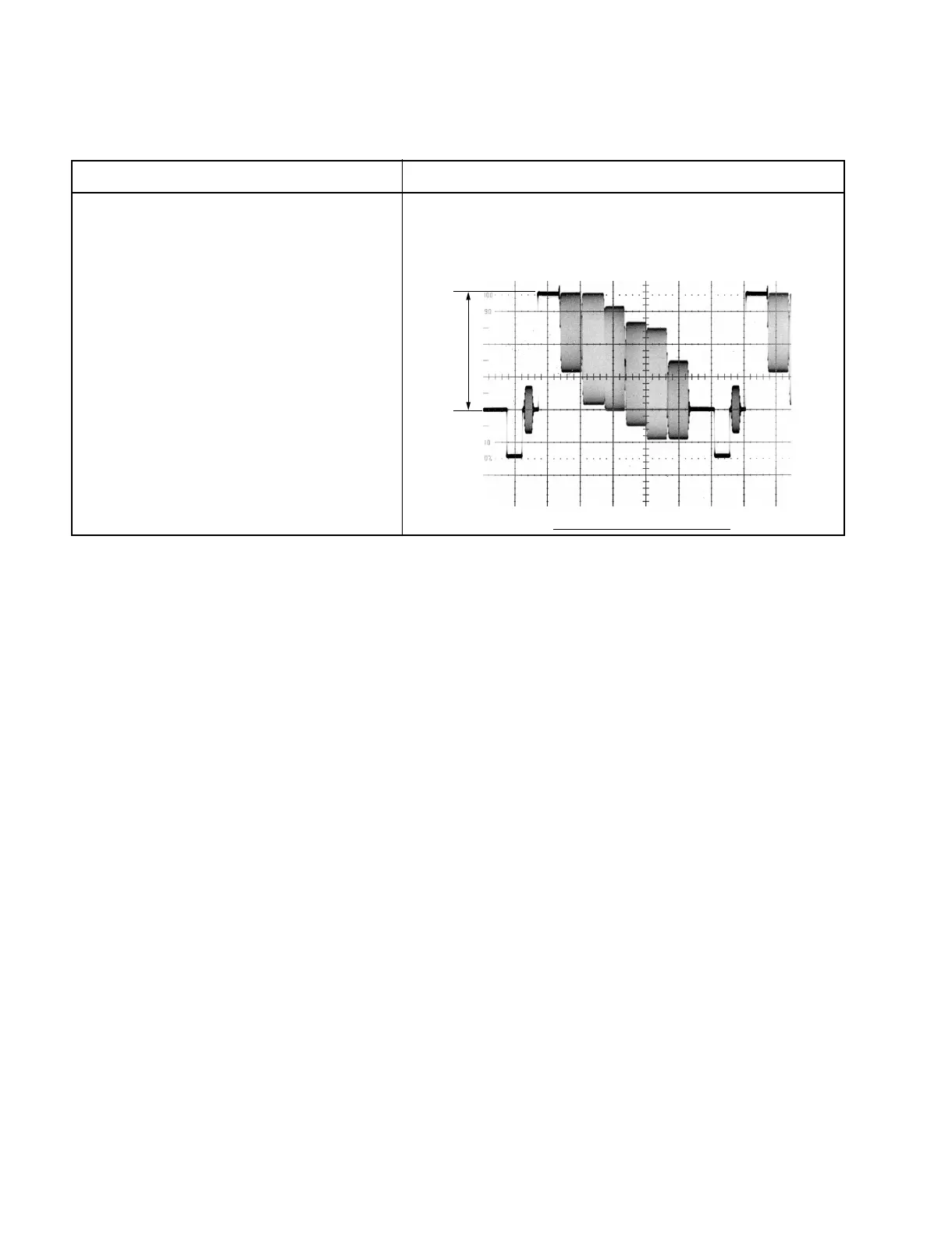

Conditions for adjustment Adjustment
..
..
. Specification
. PB mode
75 % Color bars/XH5-1A2
Connection 2
VIDEO OUT 2 (75 Z terminated)
1RV305/DEN-11 (
*
F-4)
TRIG : REF. VIDEO
WFM or Oscilloscope
Spec. A=0.714 ±0.007 V (100 ±1 IRE)
A
8-2-2-9. VIDEO OUT 2 Y Level Adjustment
