XPREZZON AND QUBE
O
PERATIONS MANUAL
XPREZZON MONITOR
Optional Integrated Recorder
Using the 12-volt power output on the back of the monitor, XPREZZON has an
optional integrated recorder that requires no additional power. For more
information on the printing functions, refer to Recording/Printing.

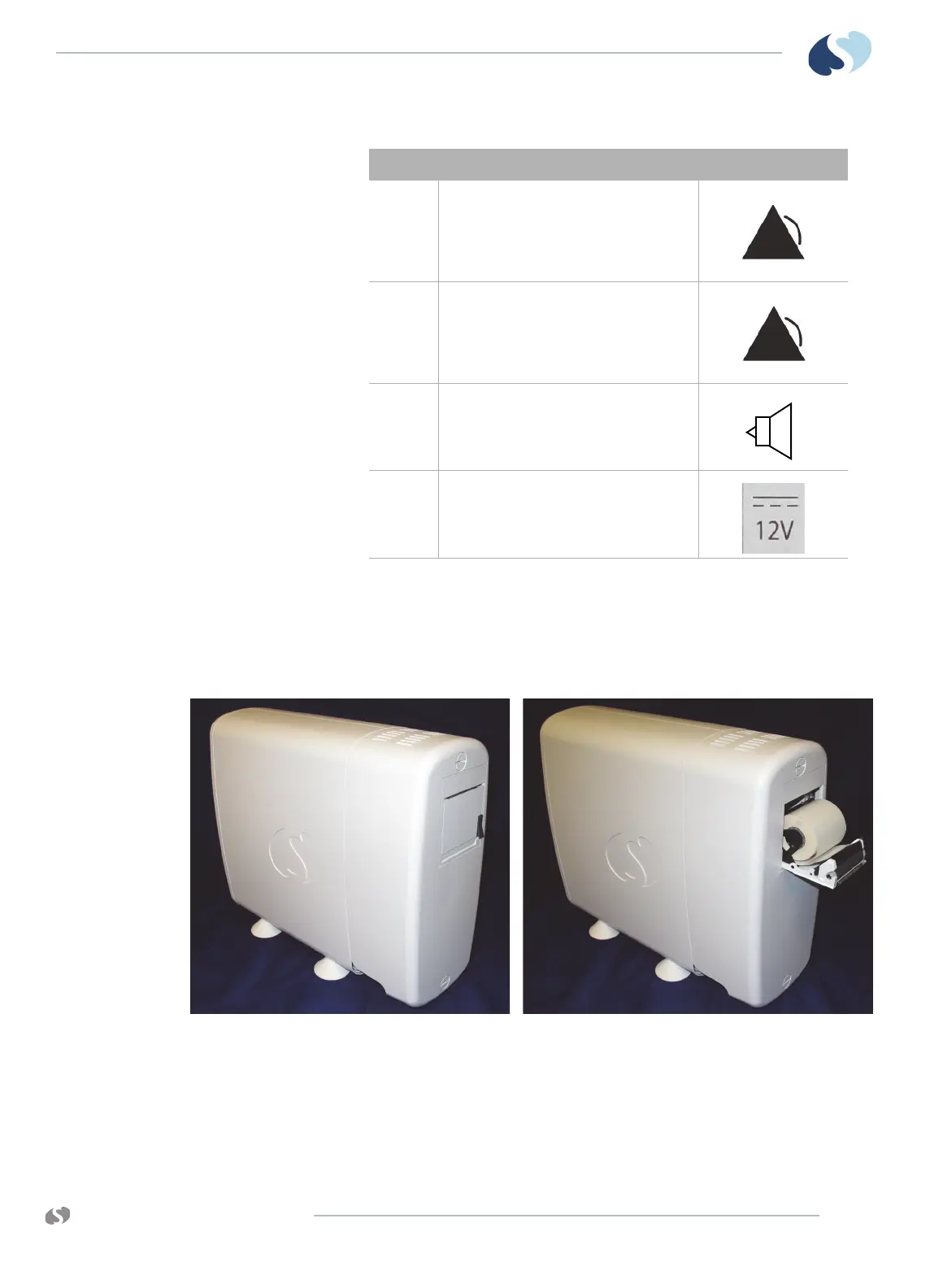

Figure 2-2 Optional Integrated Recorder
13 Alarm Relay Output
(customer designed)
14 RJ50 connection for alarm lights and audio
to 94267 display
15 Audio output
(Independent of 94267 display)
16 Power Output, 12 volt
Table 2-2 Back Panel (XPREZZON) (Continued)
Description Symbol on panel

Spacelabs qube Specifications

General

Display Type	LCD
Connectivity	Ethernet
Mounting Options	Wall mount, roll stand
Power Source	AC
Compatibility	Spacelabs
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity Range	non-condensing
