XPREZZON
AND QUBE
O
PERATIONS MANUAL
QUBE
™ MONITOR

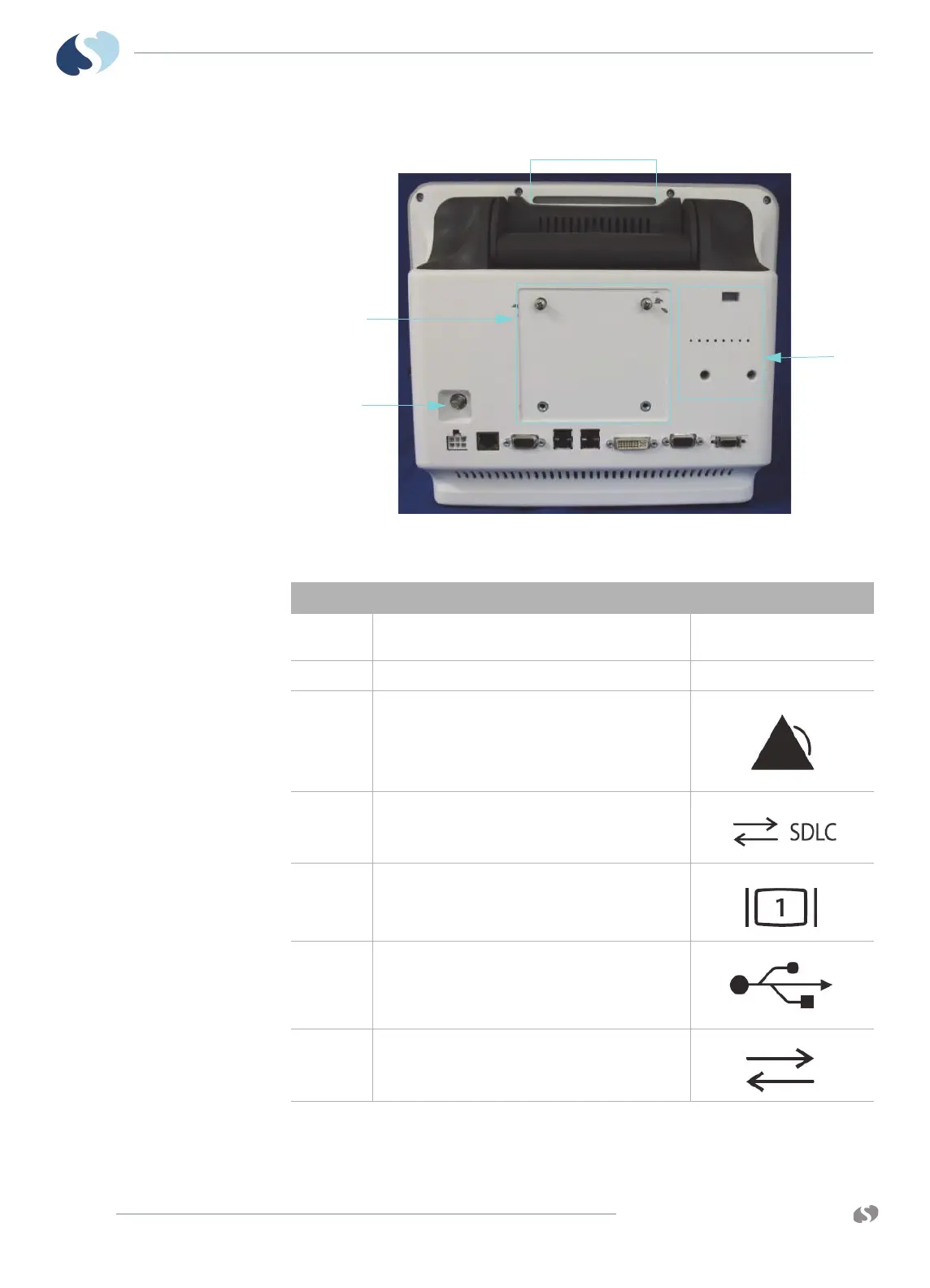

Figure 3-3 Back Panel (qube)
Description Symbol on panel
1 Integrated Alarm Light Refer to Feature Options on
page 3-6 for setup details.
2 POD Connection*
3 Remote Alarm Output*
4 SDLC Ports used to connect Flexports and module
housings to the monitor
5 Video Output, DVI-D
Digital only
6 USB Ports (qty=4)
7 Serial Port
