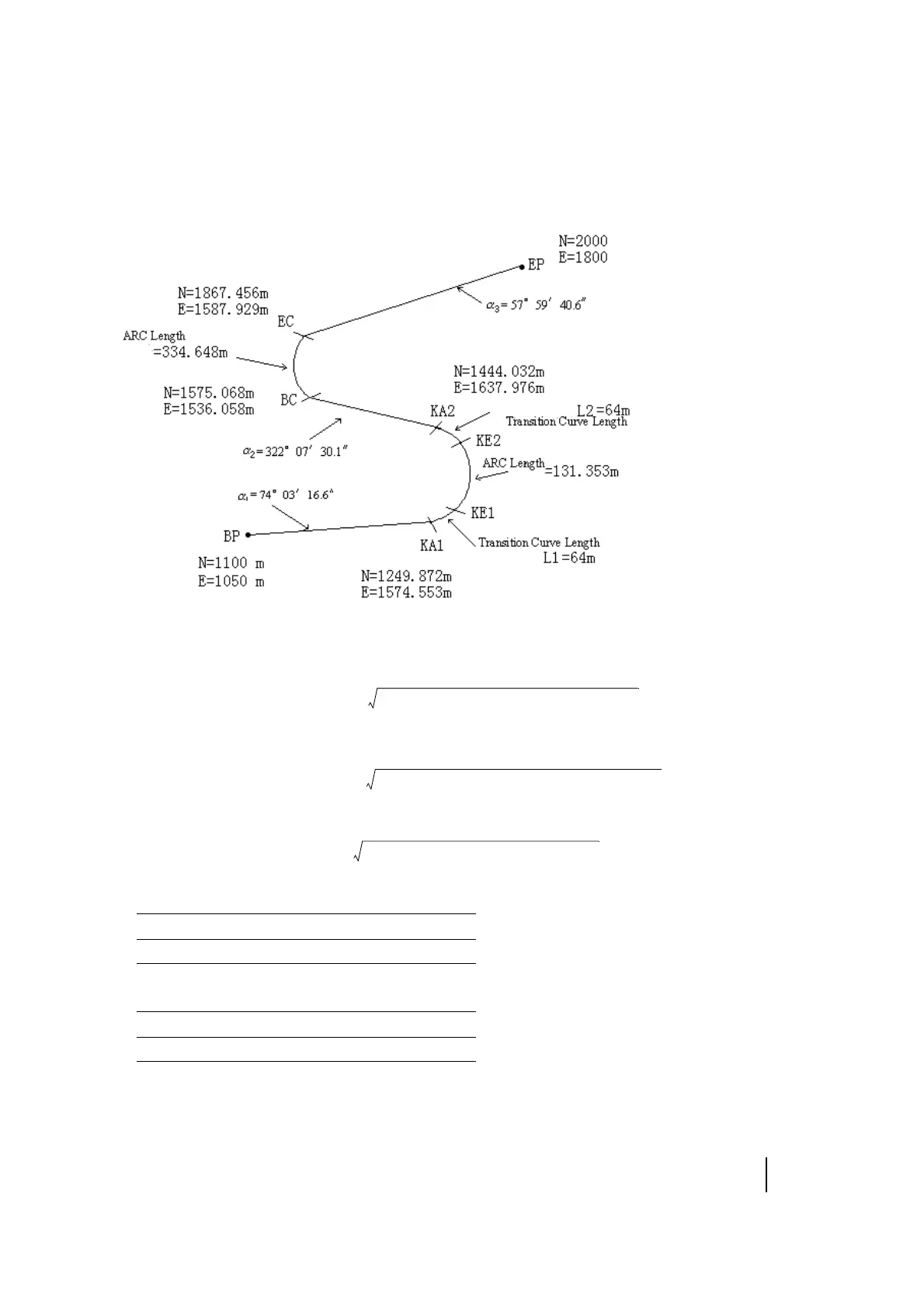

The calculated results are displayed below:
The coordinates and the distances are calculated as below.
Straight line BPKA1:
Straight line KA2BC:
Straight line ECEP:
Start point coordinate (BP):
Straight line (between BP and KA):
N 1100.000 m
E 1050.000 m
Bearing 74°03’16.6’’
Distance 545.543 m
BPKA1 1249.872 1100.000–()
2
1574.553 1050–()
2
+ 545.543m==
KA2BC 1575.068 1444.032–()
2
1536.058 1637.976–()
2
+ 166.005m==
ECEP 2000 1867.456–()
2
1800 1587.929–()
2
+ 250.084m==
