[UPS] – Set on-duty peak.
[DPS]– set off-duty peak
[Energy saving] – set the energy saving movement
[OHS]– set separate wait
[OEPS] – set elevator's movement when urgent power supply is on, First need to set each elevator
run or not when urgent power supply is on
[MFP]- set home floor return
The elevator service floor set button.
Used for setting elevator's service options.

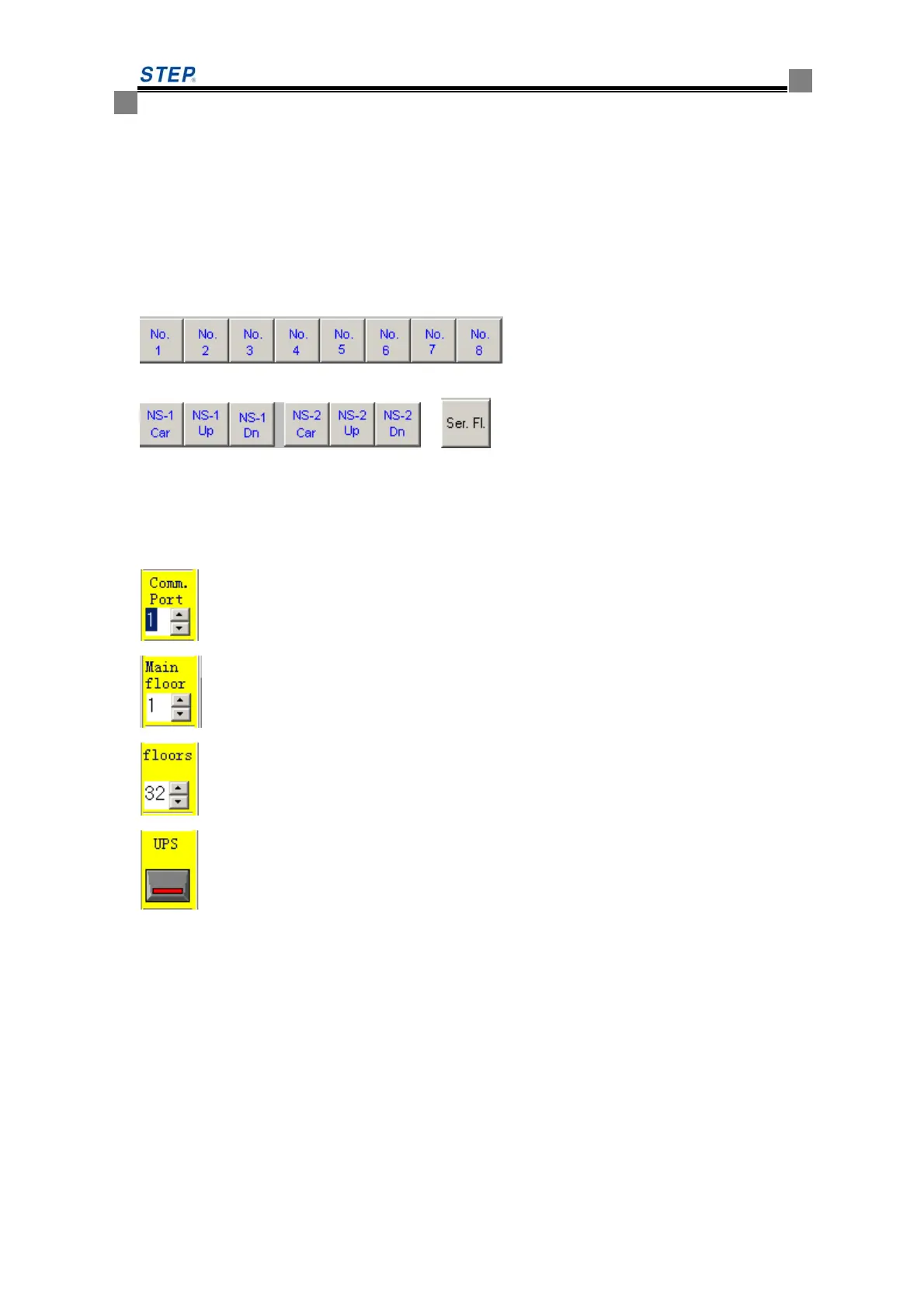

, The group control option button. Used for
choosing the group project, read the option setting in the group and show. The yellow prompt box
displays the option selected:
"The instruction service option 1","Up Call service project 1","Down Call service option 1","the
instruction service option 2","Up Call service option 2","Down Call service option 2","the service
floor specification setting".
Choose a communication port.
Choose group control home floor position.
Choose the group control floor number
The group control energy saving running button.
6. The parameter setting method:
First, choose service option. The procedure starts with an undecided service option. Option prompt
box is a blank.
Click the group project choice button, make sure a service project. The procedure will read at first
the initial value of that project and show.
（1）Communication port: Choose the RS232 communication port, 1= COM1:, 2= COM2:, then
click [Comm. port] button.
(2) Group home floor position: Click [Main floor] button after choosing the group home floor
position.
(3)The group floor number: Click [floors] button after choosing the group floor number.
