System description
The handpiece holder is xed in place on the device with a clamping screw and can be
height-adjusted.
To mount the handpiece holder
• Slide the end of the holding rod into the opening on the device column.

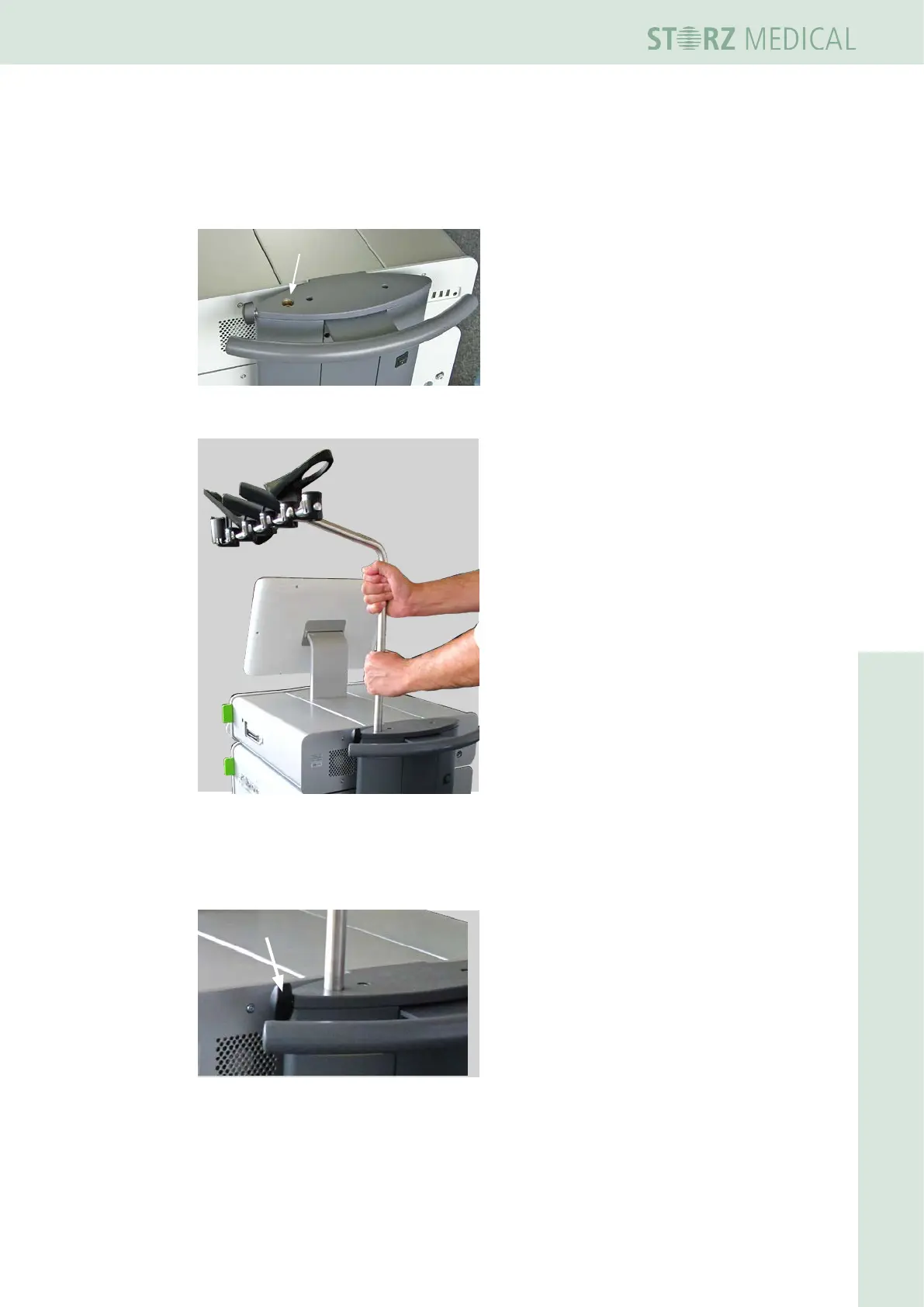

Fig. 3-4 Opening for the holding rod
Fig. 3-5 Handpiece holder
• Slide the holding rod to the desired height.
• Tighten the clamping screw once again.
Fig. 3-6 Tightening the clamping screw
