3.6.3 F-SW handpiece
The F-SW handpiece makes it possible to mechanically adjust the therapeutic penetration
depth. This is possible by using an additional stand-off device.
Refer to the application brochure for more details about treatment.

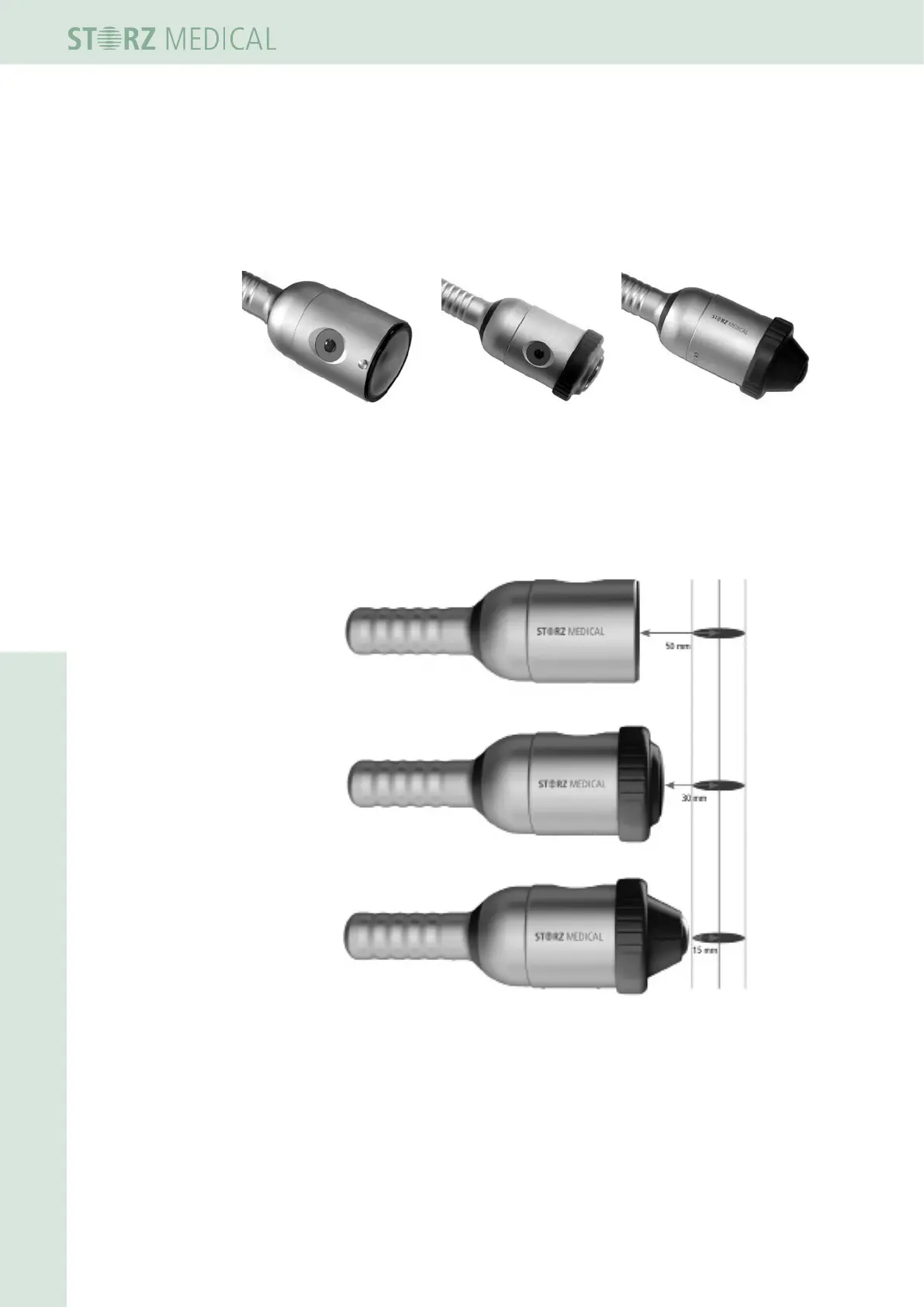

Fig. 3-20 F-SW handpiece
without stand-off device with stand-off device I (short) with stand-off device II (long)
for 50 mm depth of focal for 30 mm depth of focal for15 mm depth of focal
Therapeutically effective
penetration depth, 5 MPa
0 – 125 mm
0 – 105 mm
0 – 90 mm
Depth of focal
zone
35 – 65 mm
15 – 45 mm
0 – 30 mm
Fig. 3-21 Depth of therapeutic effect
