System description
3.6.6 F-SW SEPIA / C-ACTOR SEPIA handpiece
The DUOLITH SD1 can be controlled directly via the handpiece. Corresponding setting
buttons can be used for selecting the treatment parameters.
1 Reduce energy
2 Increase energy
3 Reduce frequency
4 Increase frequency
5 Menu / Input / reverse display
(press >3 sec)
6 Display energy
7 Nominal shock wave
8 Shock wave counter
9 Display frequency
10 Key combination with double
function
11 Trigger button
1
3
10
2
6
4
9
8
7
5
11

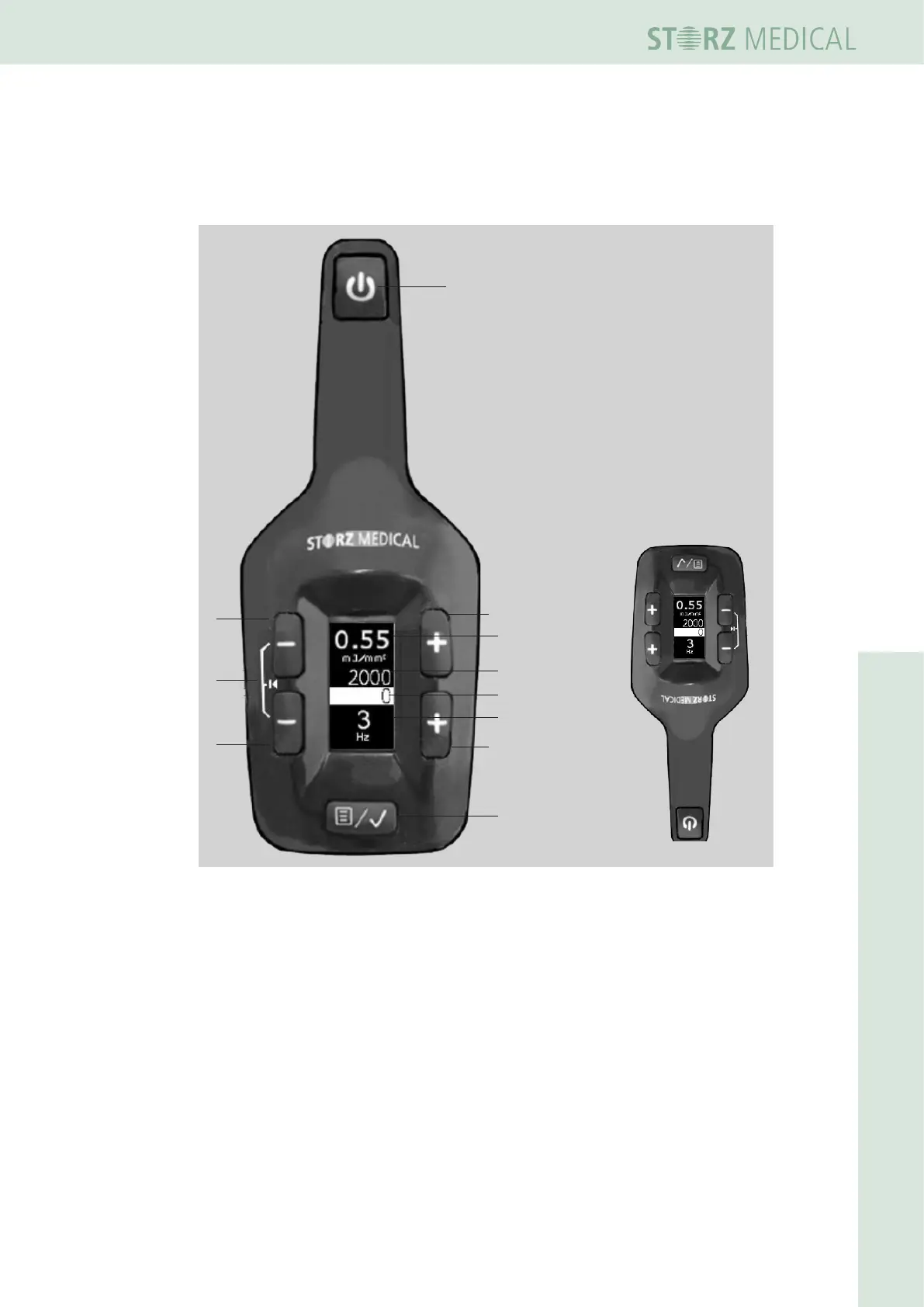

Fig. 3-26 Display and setting buttons of the F-SW SEPIA / C-ACTOR SEPIA handpiece
For operation of the handpiece F-SW SEPIA / C-ACTOR SEPIA using the embedded
display please read the
separate Operating Manual Of yOur handpieCe.
