Storz DUOLITH SD1 - F-SW SEPIA Handpiece

3-15
17 363 02 0320
System description
3.6.4 F-SW SEPIA handpiece
Focused shock waves that are concentrated on a focal zone outside the handpiece are
administered over the F-SW handpiece into the body at the treatment zone.
1
6
4
1 Display
2 Trigger button
3 Clamping ring
4 Fixing screws
5 Coupling diaphragm
6 Color ring
2
3
5

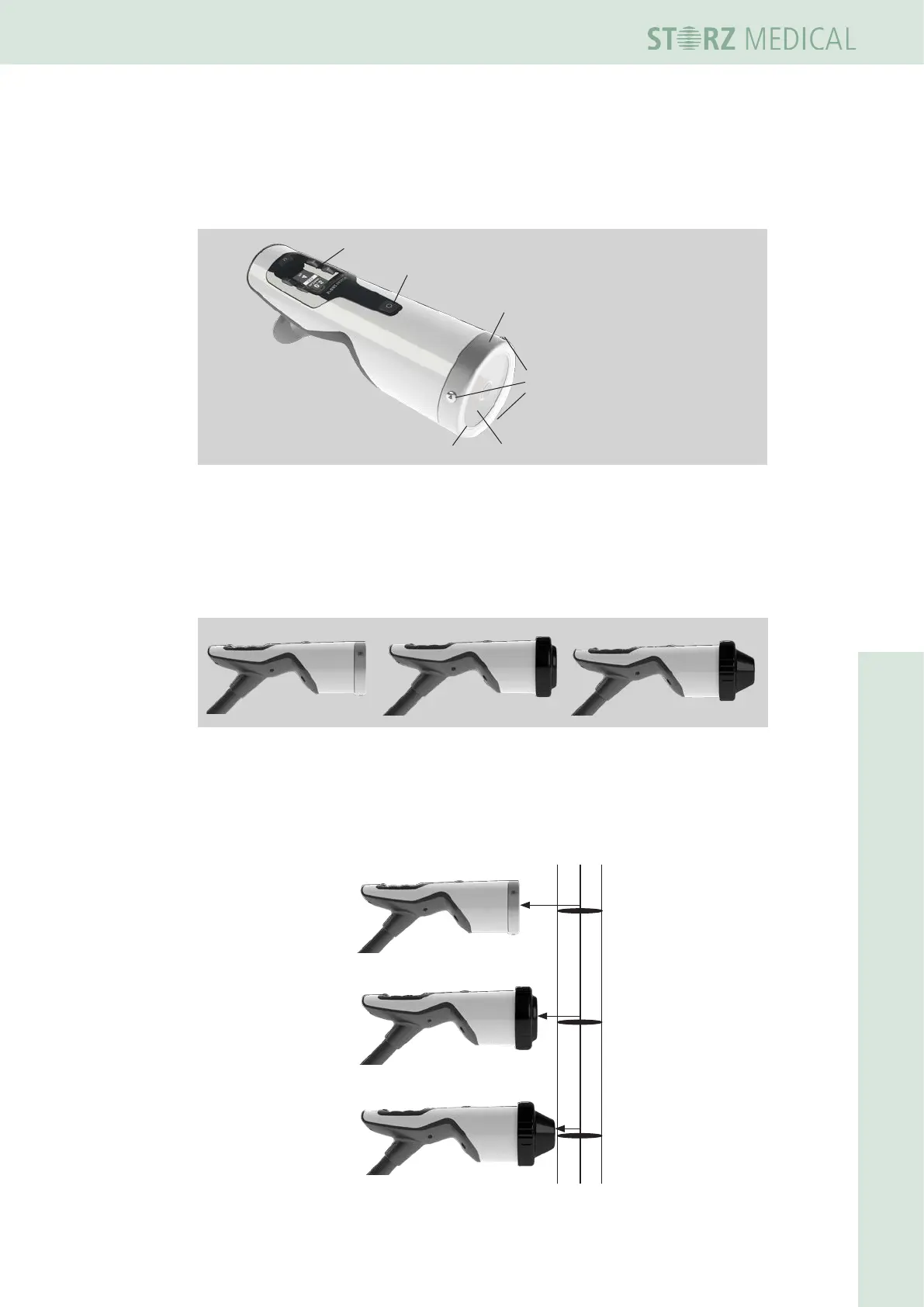

Fig. 3-22 F-SW handpiece
The coupling diaphragm is xed by a clamping ring and 3 xing screws. It can only be
opened from authorised personnel with special tools.
The penetration depth of the shock wave can be adjusted by using different stand-off
devices.
Fig. 3-23 F-SW handpiece
without stand-off device with stand-off device I with stand-off device II
Therapeutically effective
penetration depth 5 MPa
0 - 125 mm
0 - 105 mm
0 - 90 mm
Depth of
focal zone
35 - 65 mm
15 - 45 mm
0 - 30 mm
15 mm
30 mm
50 mm
Fig. 3-24 Depth of therapeutical effect
