System description
3.7.5 Connecting VACU-ACTOR
1 Coupling silicone hose
2 Hose
3 Coupling for connection the
suction cup
4 Suction cup
5 Bacteria lter
2
1
4
5
size relationships are not real
3

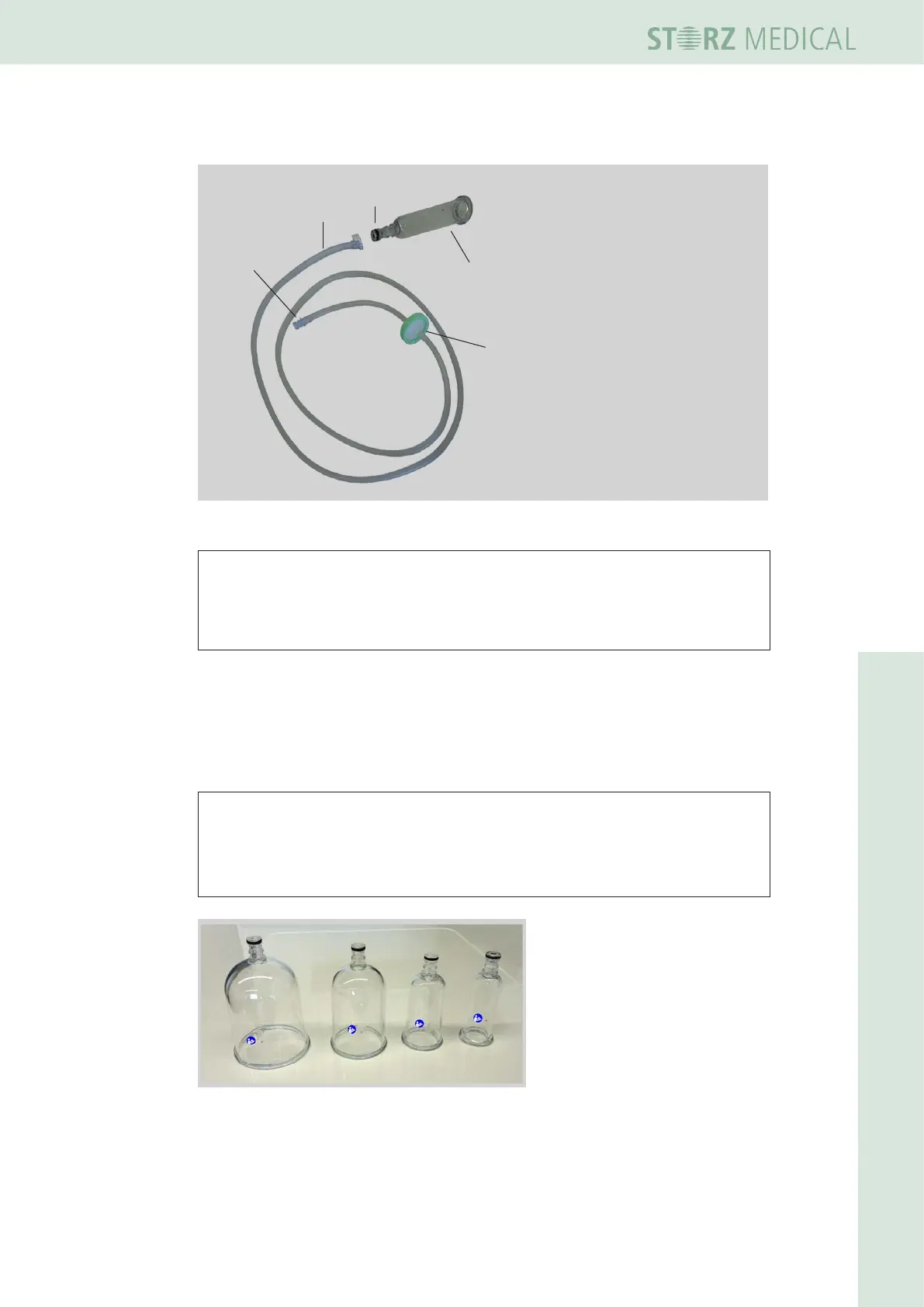

Fig. 3-35 Connection VACU-ACTOR
NOTE
Immediately after the device output a one-sterile lter is used to avoid contamina-
tion of the device and to protect the following patients against comtamination.
• Insert the transparent suction cup into the coupling at the end of the longer hose
part.
– There are suction cups in 4 different sizes to choose from.
• Insert the coupling of the shorter hose part into the connection clutch on the right
side of the R-SW module (Fig. 3-37 / 1).
NOTE
The silicone air hose including the bacteria lter is a disposable part.
It must be disposed after each treatment to protect the patient and the system
against cross-contamination.
Fig. 3-36 available suction cups
