System description
3.7.1.1 Compatible handpieces
The following handpieces are allowed to be connected to the R-SW module:
– R-SW handpiece Art. no. 21700.1001
– V-ACTOR II Art. no. 19365.0001
– V-ACTOR II HF Art. no. 19365.1001
3.7.2 R-SW handpiece
Radial, low-energy shock waves (R-SW) are administered into the body by means of a
freely movable handpiece, and encompass the entire pain zone. Radial shock waves
are often also referred to as radial pressure waves – which is indeed physically correct.
The handpiece is placed on the pain zone that has been established by diagnosis.
The R-SW handpiece contains all the control and display elements required for
operating the device as a standalone unit. Corresponding setting buttons can be used
for selecting the treatment parameters. The indicator window shows which setting
has been selected.
NOTE
Pictures of handpiece and shock transmitters are examples. Individual components
may differ from those shown in the illustration.
1
2
6
5
4
3
10
9
8
7
11

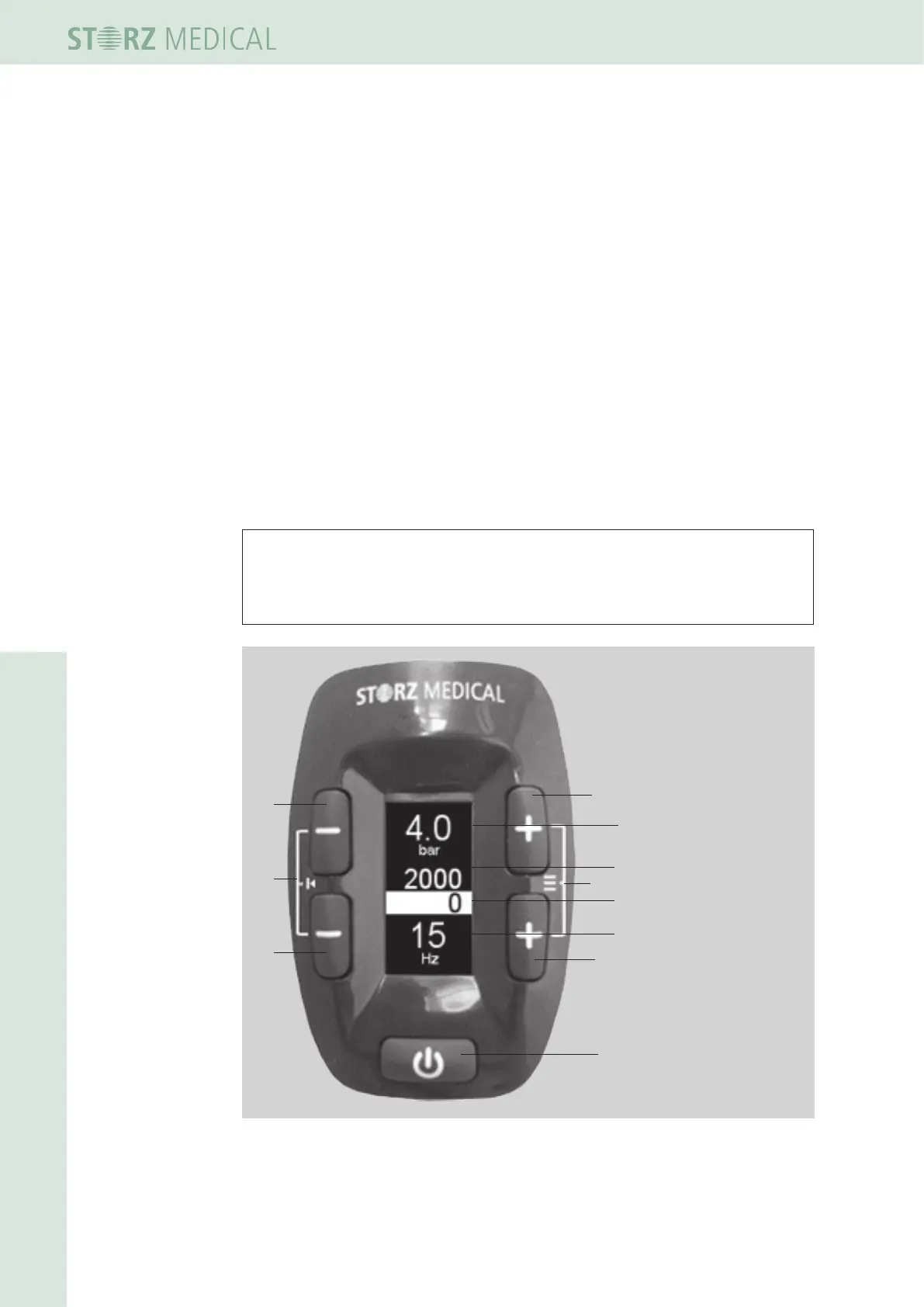

1 decrease energy
2 increase energy
3 decrease frequency
4 increase frequency
5 Trigger button
6 Display energy
7 Set nominal shock
wave
8 Shock wave counter
9 Display frequency
10 key combination with
double function
11 key combination with
double function
(10 and 11 see separate
operating manual of the
handpiece )
Fig. 3-30 Display and setting buttons of the R-SW handpiece
