3.6 Description of the F-SW module with accessories
The F-SW module generates focused shock waves with a short wavelength that are
concentrated on a focal zone outside the therapy head. They take effect at depth.
The penetration depth can be varied using stand-off devices, and be adapted to the
tissue level which is to be treated.
3.6.1 Control and functional elements
The F-SW module is controlled using the touch screen or the display of the handpiece
F-SW SEPIA.
Here, you can make the treatment settings as described in kapitel 4.5 tOuCh sCreen
OperatiOn.
The shocks are triggered using the handpiece.
1 F-SW module
2 Touch screen
3 Standby switch
1
2
3

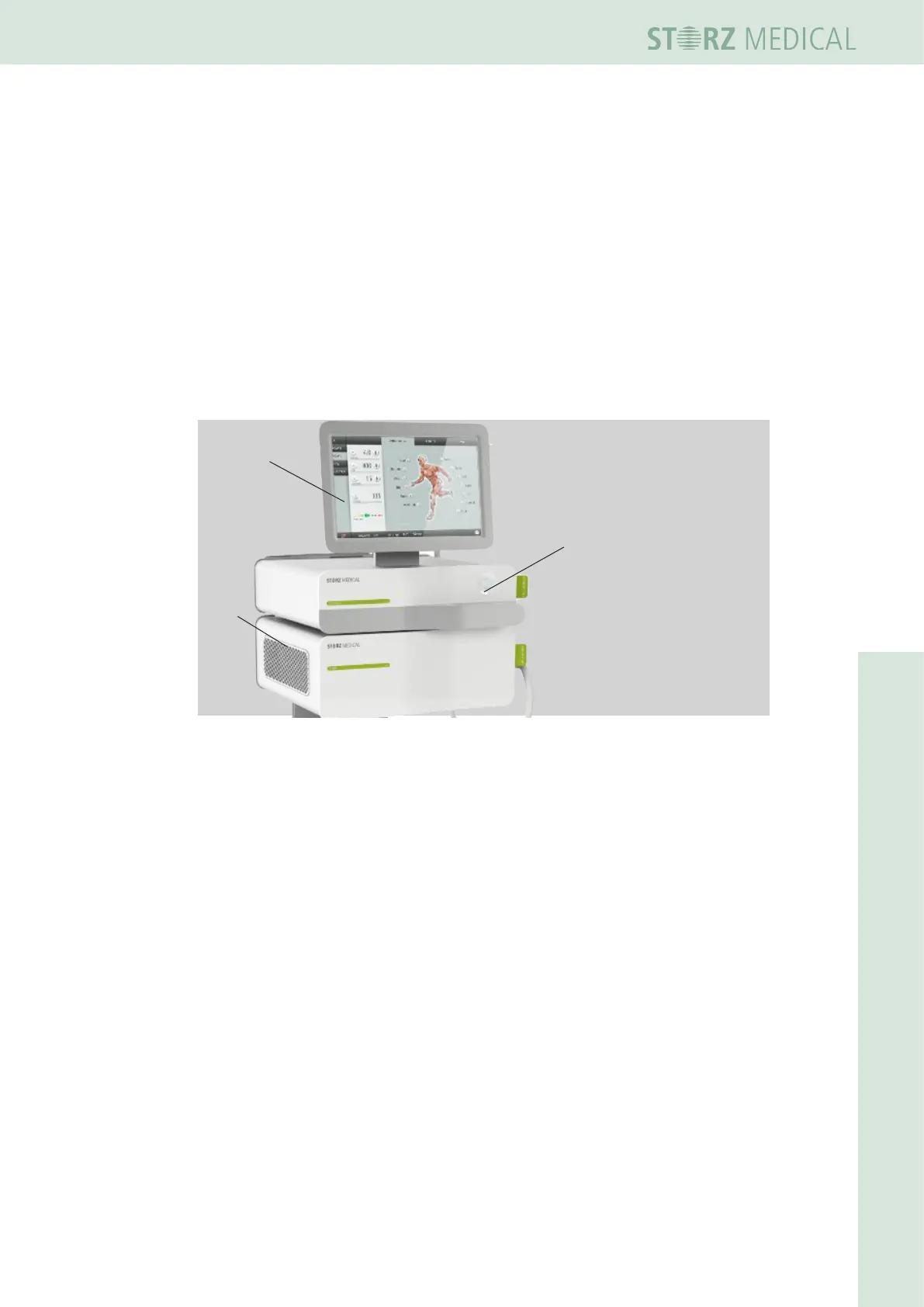

Fig. 3-19 Front view of the DUOLITH
®
SD1 with F-SW module
3.6.2 Compatible handpieces
The following handpieces can be connected to the F-SW module:
– F-SW SEPIA handpiece Art. no. 22800.0001
– F-SW handpiece Art. no. 16208.0001
– F-SW Sepia LT handpiece Art. no. 16208.1001
– C-ACTOR II handpiece Art. no. 16940.0001
– C-ACTOR Sepia handpiece Art. no. 25750.0001
– C-ACTOR Sepia LT handpiece Art. no. 16940.1001
