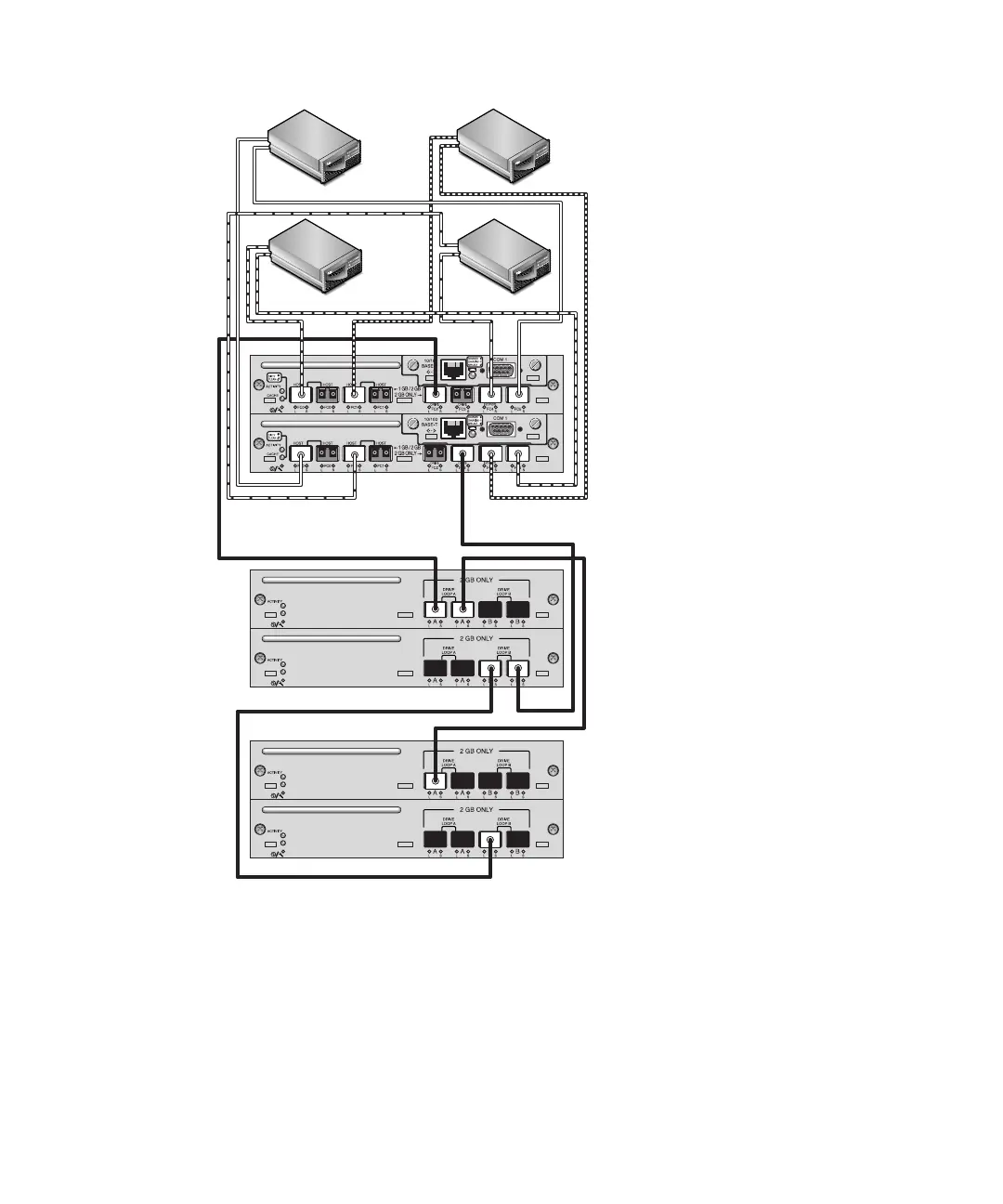

FIGURE 5-4 A DAS Configuration With Four Servers, a Dual-Controller Sun StorEdge
3511 FC Array, and Two Expansion Units
Establishing complete redundancy and maintaining high availability requires the use
of multipathing software such as Sun StorEdge Traffic Manager software. To
configure for multipathing:
1. Establish two connections between each server and the array.
2. Install and enable multipathing software on the server.
H/D/RCC
H/D/RCC
Server 3
Server 1
Server 4
Server 2
