Sun Microsystems StorEdge3000 Series - FIGURE 5-1 a Point-To-Point Configuration with a Dual-Controller Sun Storedge 3510 FC Array and Two Switches

Chapter 5 Configuration Overview 5-13

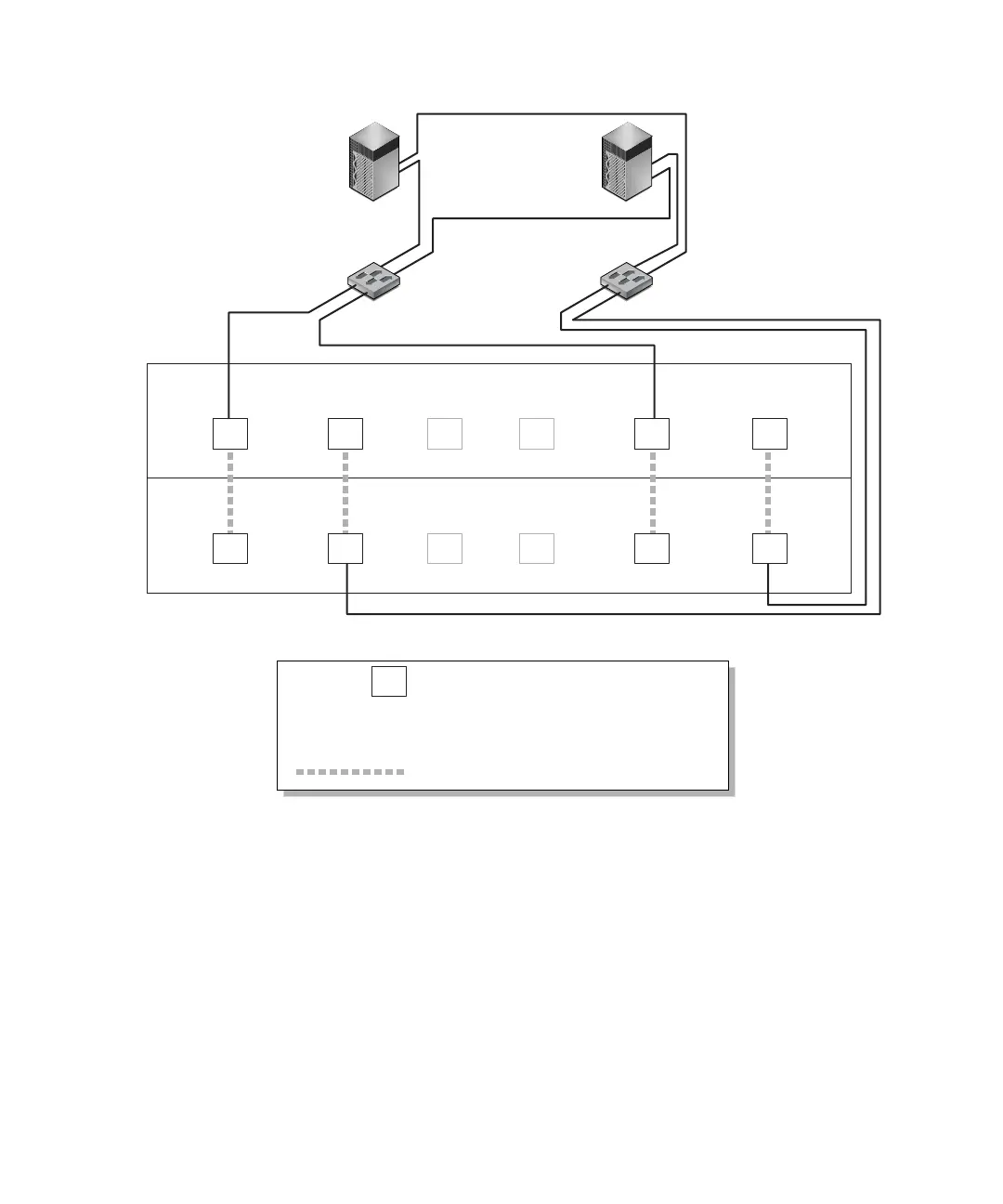

FIGURE 5-1 A Point-to-Point Configuration with a Dual-Controller Sun StorEdge 3510 FC Array and Two
Switches
: Host port on channel number N
PID 40 / PID43 : Host IDs on primary controller
SID 45 / SID46 : Host IDs on secondary controller
N/A : Not applicable (no ID on that controller)
: Port bypass circuit
N/A0
Switch 0
Server 0
Switch 1
Server 1
145
01
N
45
PID 40 PID 43
N/A
SID 45
N/A
N/A SID 46
Map LG0 to PIDs 40 and 43 Map LG1 to SIDs 45 and 46
