Sun Microsystems StorEdge3000 Series - FIGURE 4-2 Sequence of Steps to Change Front Bezel Locks so Keys Cannot be Removed

Chapter 4 Connecting Your Fibre Channel Array 4-3
Caution – Be sure to hold the key in place. Otherwise there is a risk of breaking the
small tab on the lock that serves as a stop.
4. Lift the pawl off the threaded part of the lock body, as shown in the second panel
of
FIGURE 4-2.

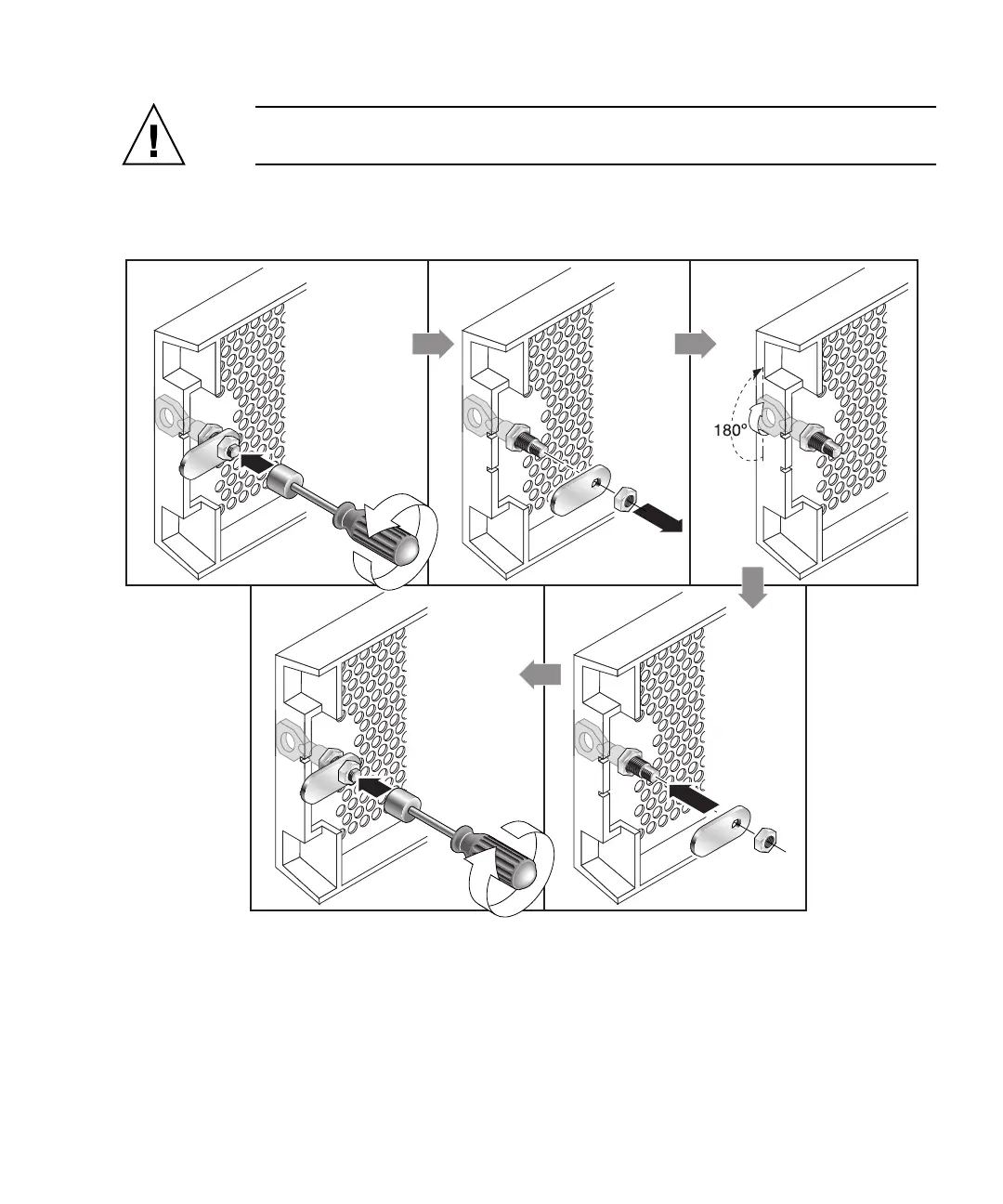

FIGURE 4-2 Sequence of Steps to Change Front Bezel Locks So Keys Cannot Be Removed
5. Set the pawl aside, face up, so that you can remember its orientation when you
replace it.
6. Use the key to turn the lock 180 degrees, as shown in the third panel of
FIGURE 4-2.
