8.4 Checking Status Windows
The status windows used to monitor and manage the array are described in the
following sections:
■ “Logical Drive Status Table” on page 8-6
■ “Physical Drive Status Table” on page 8-8
■ “Channel Status Table” on page 8-10
■ “Controller Voltage Temperature Status” on page 8-13
■ “Viewing SES Status” on page 8-15
■ “SES Temperature Sensor Locations” on page 8-16
■ “Identifying Fans” on page 8-17
■ “Viewing Event Logs on the Screen” on page 8-18
8.4.1 Logical Drive Status Table

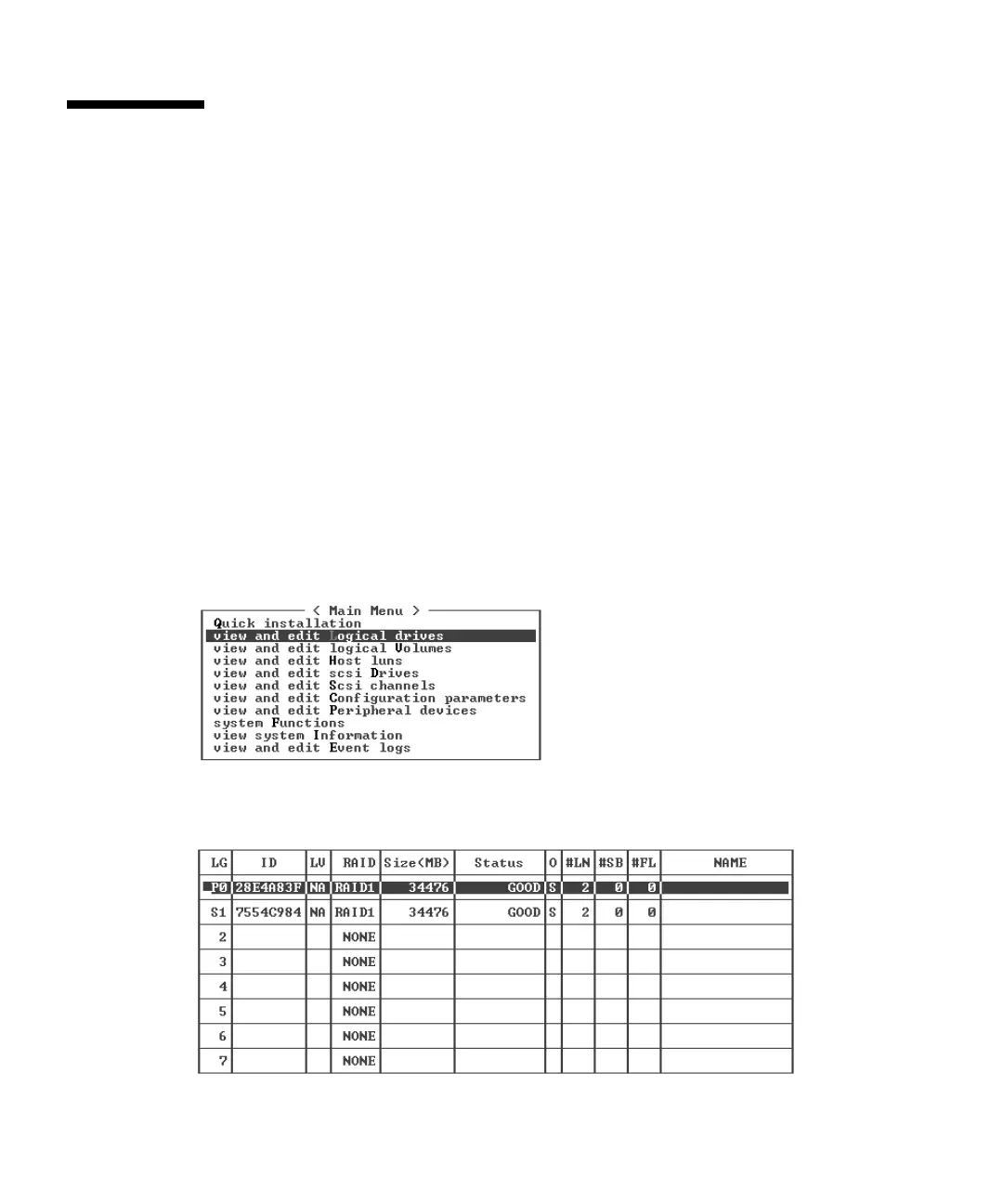

To check and configure logical drives, from the Main Menu choose “view and edit
Logical drives” and press Return.
The status of all logical drives is displayed.
