9-18 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004

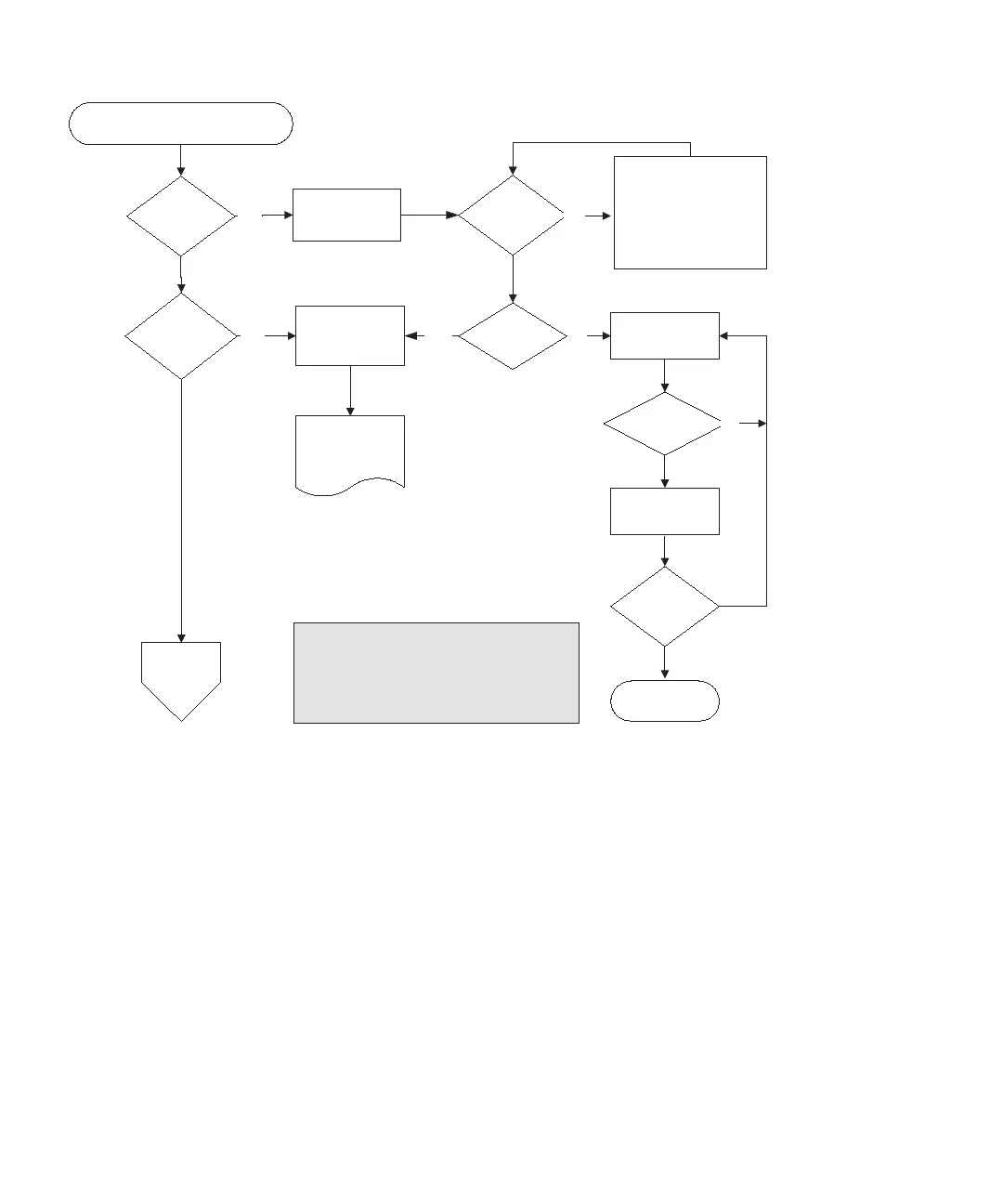

FIGURE 9-3 FC Drive LEDs Flowchart, 1 of 2
Is only
one drive LED
amber?
Check View and
Edit SCSI
drives menu.
Rotate drive into
another slot.
Ye s
Ye s
Replace drive.
Ye s
All drive
LEDs amber?
No
Ye s
No
Does drive
show bad?
Does problem
follow drive?
Refer to FRU
Installation Guide
for instructions.
Replace chassis.
LED green?
2A
Drive LEDs problem (FC)
Continue with
2B
Is drive
displayed?
Power off.
Move drive to new slot.
Power on.
Check drive to see if it is
displayed.
Ye s
No
Ye s
End
No
--Reseat the FRU that is not operating correctly.
--Swap the questionable FRU with a known-good
FRU from the same array.
Notes
Prior to replacing a chassis, try the following:
No
No
To Next Page
