Cable Pinouts
This appendix identifies the pinouts for each connector used in the Sun StorEdge
3510 and 3511 FC arrays. Topics covered are:
■ “RJ-45 Connector” on page E-1
■ “DB9 COM port” on page E-2
E.1 RJ-45 Connector

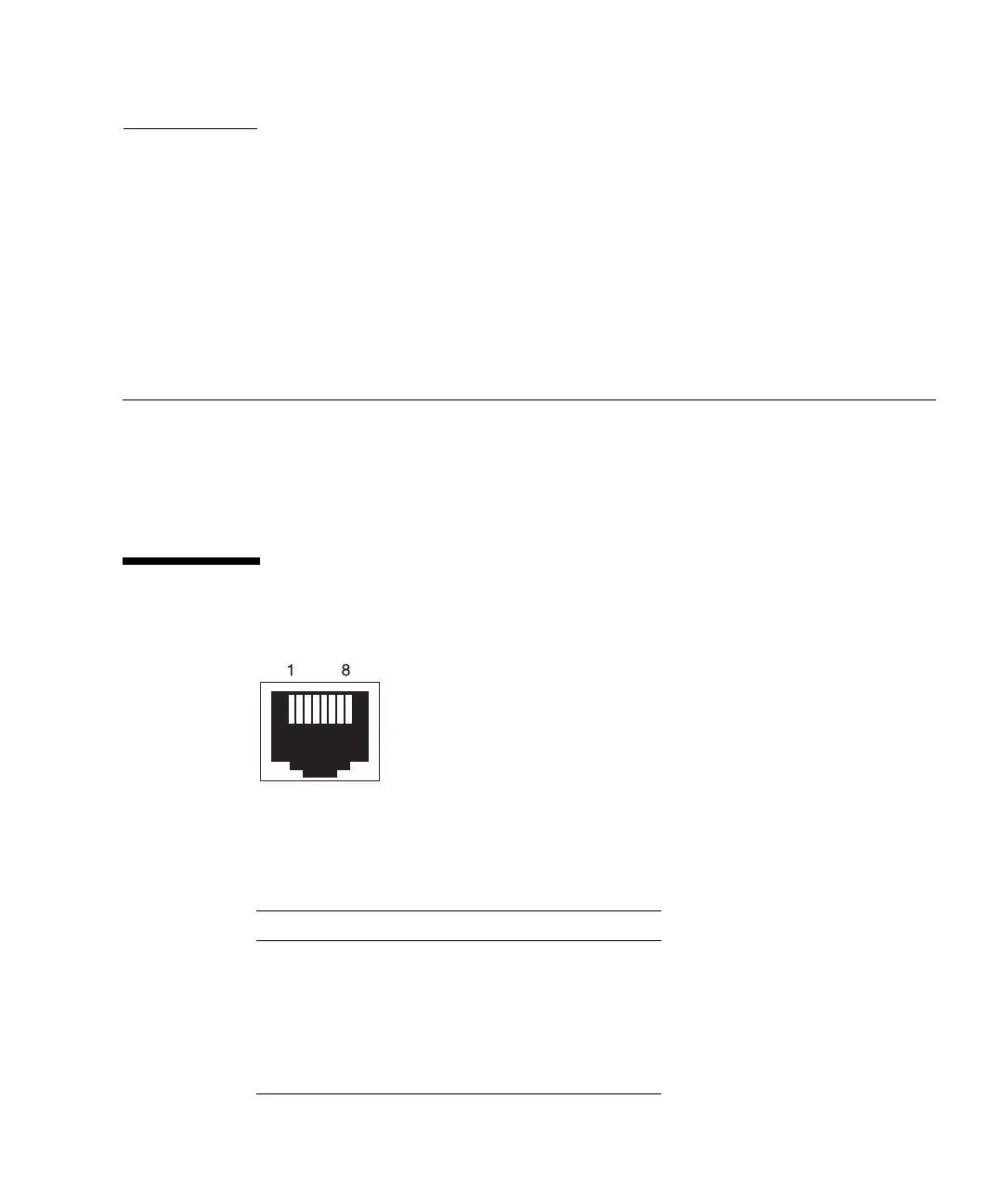

FIGURE E-1 Ethernet RJ-45 Socket 10/100 BASE-T
TABLE E-1 Ethernet RJ-45 Pin Description
Pin No. Description Color
1 TX + White with orange
2 TX – Orange
3 RX + White with green
4 Blue
5 White with blue
