9-22 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004

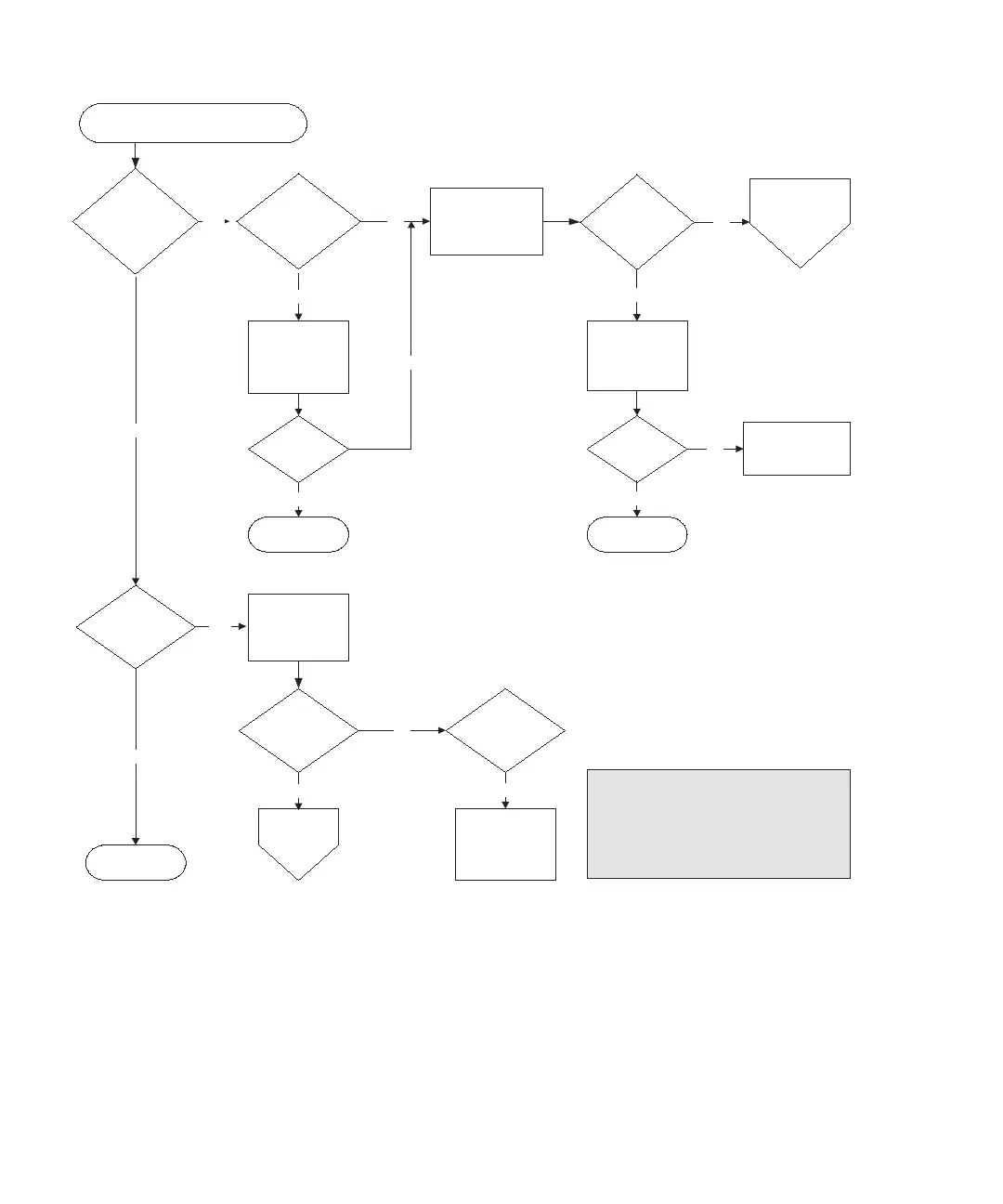

FIGURE 9-7 Front Panel LEDs Flowchart, 3 of 4
3C
Front panel LEDs problem (FC)
Is Temp LED
amber?
Ye s
Is the
ambient
temp. within
environmental
limits?
No
No
No
Ye s
Follow procedure
for "Fan LED
amber?" on 9B.
Resolved?
No
Ye s
Is Fan
LED amber also?
Check for any
amber LEDs in
back panel.
Go to 4A.
I/O
Controller
module LED
amber?
No
Battery module
LED amber?
Check
temperature
in Event Log
messages.
Ye s
Ye s
Ye s
Replace battery
module.
Resolved?
End
Replace chassis.No
Ye s
Check that LED
ribbon cable in
right ear is not
loose.
End
End
Is event LED
amber?
No
Go to 3D.
Ye s
--Reseat the FRU that is not operating correctly.
--Swap the questionable FRU with a known-good
FRU from the same array.
Notes
55 degrees Celsius equals 131 degrees
Fahrenheit.
Prior to replacing a chassis, try the following:
